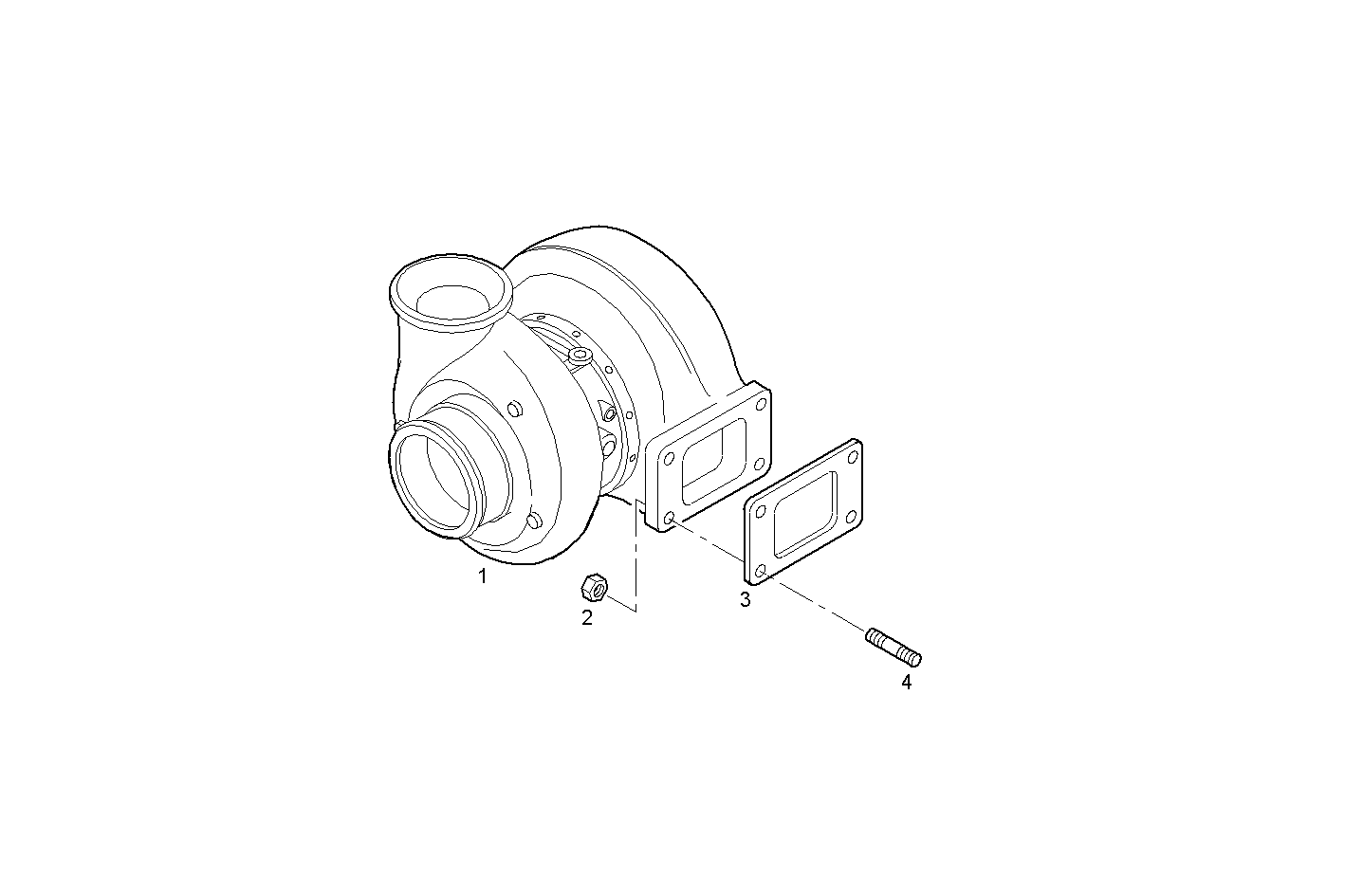

TURBOCHARGER
Assembly ID: 2400.073
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504255233 | VARIAB.GEOM.TURBINE | 1 | ||
| 2 | 500300795 | HEXAGON NUT | 4 | ||
| 3 | 98451118 | GASKET | 1 | ||
| 4 | 16731370 | STUD | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0681D*B315 | CURSOR 10 - EURO 3 | view |
| C10ENTC23.00A002 | CURSOR 10 - EURO 3 | view |
