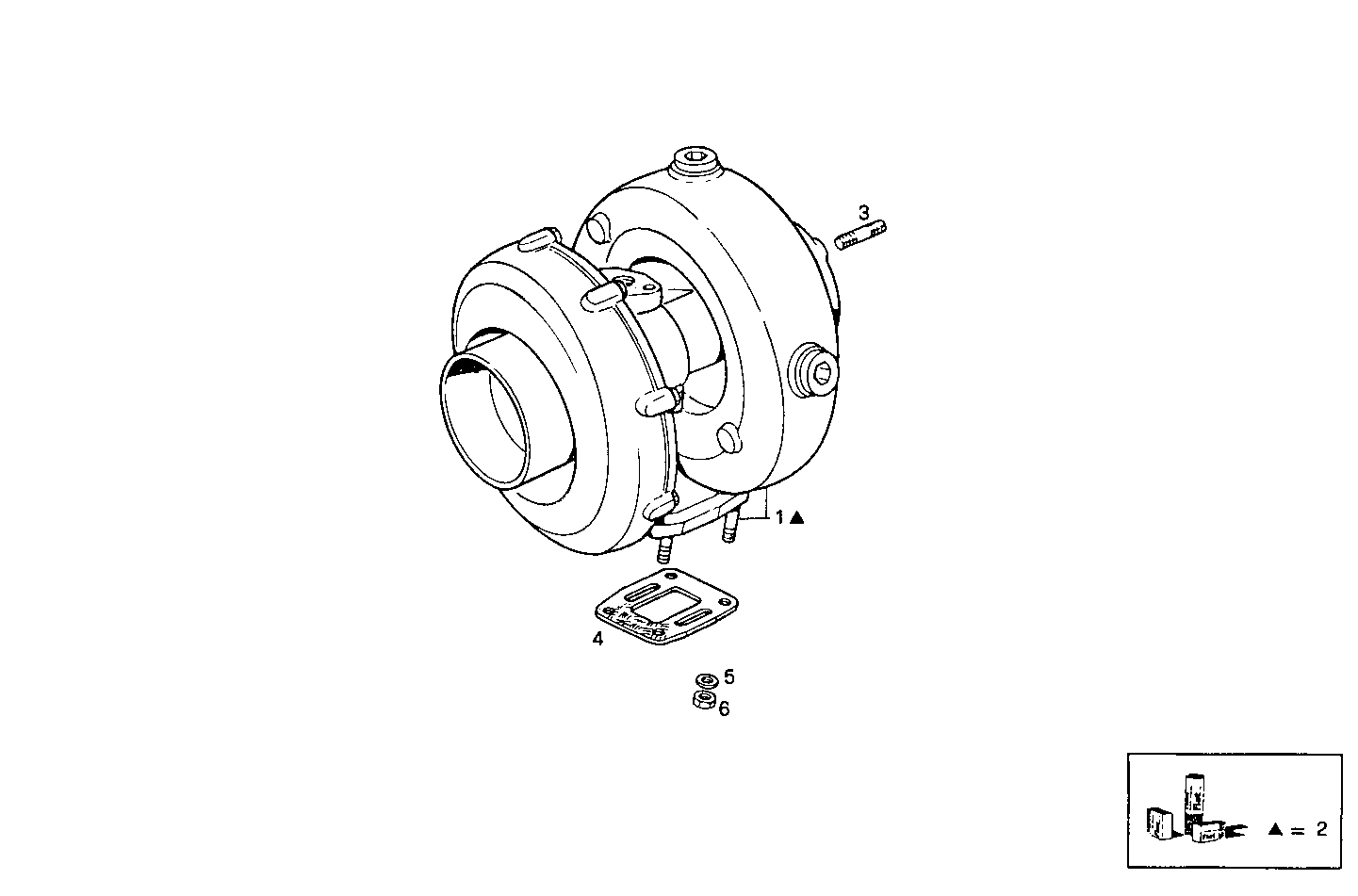

TURBOCHARGER
Assembly ID: 2400.155-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8018872 | WATER COOL.TURBOCHARGER | 1 | ||
| 2 | 8093730 | KIT-TURBOCHARGER | 1 | ||
| 3 | 16729424 | STUD | 4 | ||
| 4 | 8014972 | GASKET | 1 | ||
| 5 | 17090174 | SPRING WASHER | 4 | ||
| 6 | 17038121 | HEXAGON NUT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8060SRM33.10 | 8060SRM33 | view |
| 8060SRM33.10A001 | 8060SRM33 | view |
| 8060SRM33.10A002 | 8060SRM33 | view |
