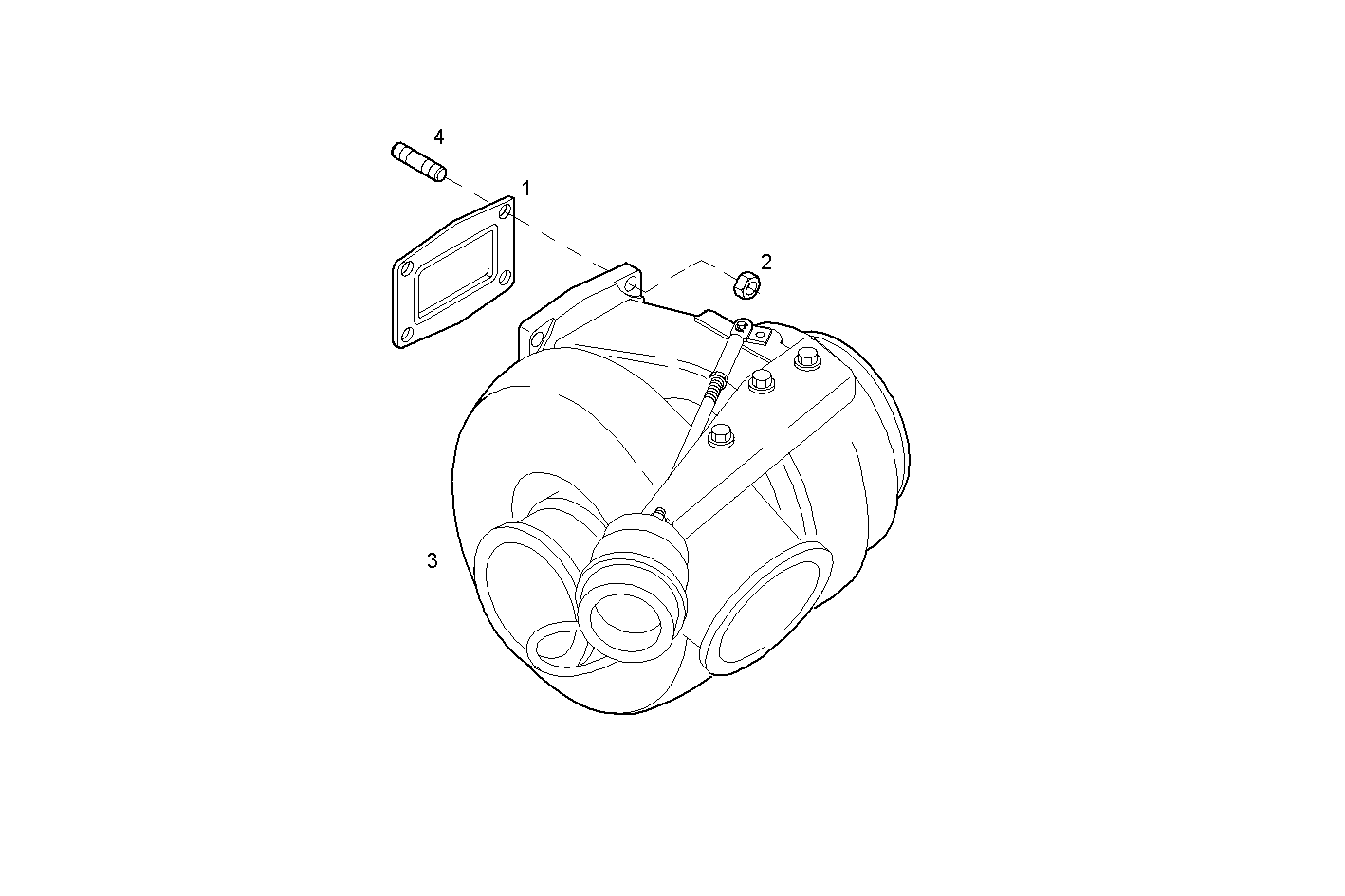

TURBOCHARGER
Assembly ID: 2400.200
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98453300 | FLAT ENGINE GASKET | 1 | ||
| 2 | 500300795 | HEXAGON NUT | 4 | ||
| 3 | 504035210 | TURBOCHARGER | 1 | ||
| 4 | 16731370 | STUD | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684A*B002 | CURSOR 13 - TIER 2 | view |
| F3BE0684E*B003 | CURSOR 13 - TIER 2 | view |
| F3BE0687A*B301 | CURSOR 13 - TIER 2 | view |
| C13ENTD20.00 | CURSOR 13 - TIER 2 | view |
| C13ENTE20.00 | CURSOR 13 - TIER 2 | view |
| C13ENTD20.00A800 | CURSOR 13 - TIER 2 | view |
| F3BE0687A*B302 | CURSOR 13 - TIER 2 | view |
| C13ENTD20.20 | CURSOR 13 - TIER 2 | view |
