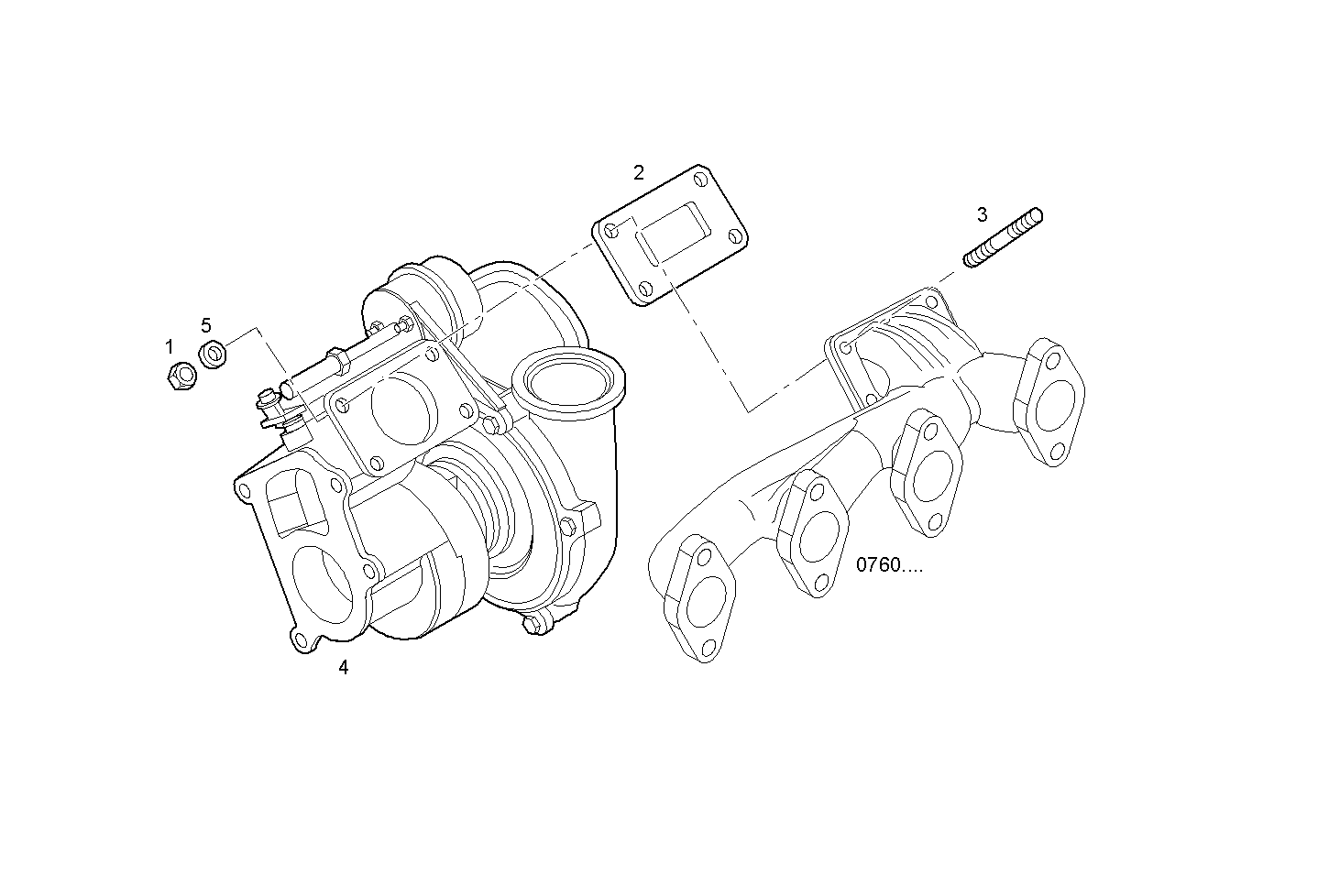

TURBOCHARGER
Assembly ID: 2400.216
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500322677 | HEXAGON NUT | 4 | ||
| 2 | 4895133 | EXH. MANIFOLD GKT | 1 | ||
| 3 | 98492637 | STUD | 4 | ||
| 4 | 8034421 | TURBOCHARGER | 1 | ||
| 5 | 17094924 | WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0484B*D103 | NEF 4 electron. - TIER 2 | view |
| N40ENTD20.00 | NEF 4 electron. - TIER 2 | view |
| N40ENTD20.00A800 | NEF 4 electron. - TIER 2 | view |
| N40ENTD20.00A801 | NEF 4 electron. - TIER 2 | view |
| N40ENTE21.00A003 | NEF 4 electron. - TIER 2 | view |
| N40ENTD20.00A810 | NEF 4 electron. - TIER 2 | view |
| F4AE0484B*D100 | NEF 4 electron. - TIER 2 | view |
| N40ENTD20.00A802 | NEF 4 electron. - TIER 2 | view |
