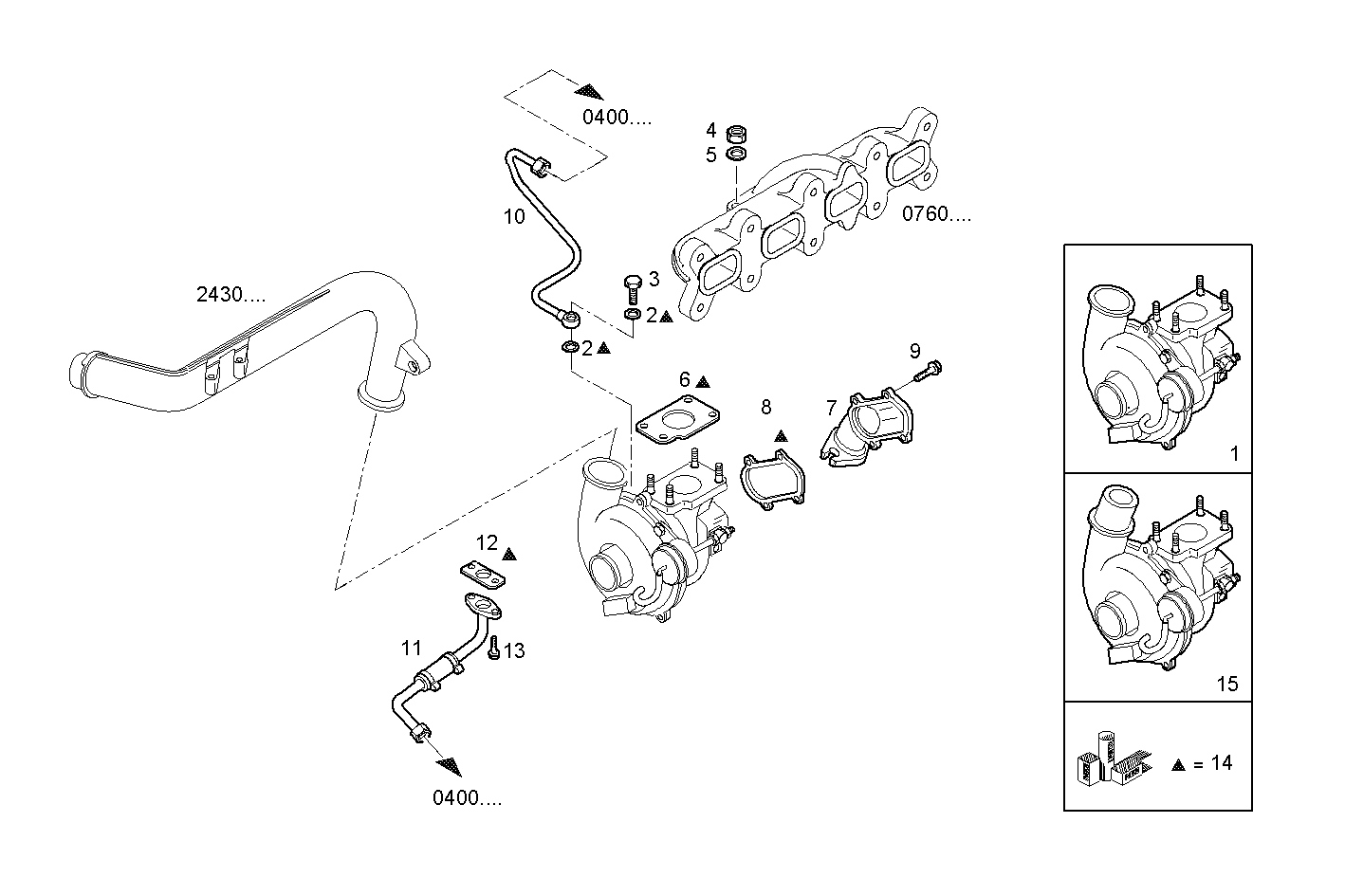

TURBOCHARGER

Assembly ID: 2400.219

TURBOCHARGER

Parts

# Part number Description Note Quantity
1 504014911 TURBOCHARGER 1
2 10296160 SEAL GASKET 2
3 4864082 BANJO BOLT 1
4 500322677 HEXAGON NUT 4
5 17094914 WASHER 4
6 500378462 EXH. MANIFOLD GKT 1
7 504001093 AIR PIPE/DUCT 1
8 98484659 FLAT ENGINE GASKET 1
9 16586424 HEXAGON BOLT 4
10 504044738 OIL LINE 1
11 504017521 OIL LINE 1
12 500370706 FLAT ENGINE GASKET 1
13 16585824 HEXAGON BOLT 2
14 504049364 KIT-SEAL.GASKETS 1
15 504071262 TURBOCHARGER 1

Applies to engines

Engine Family
F1AE0481A*A002 - C SOFIM HPI 2.3L - EURO 3 view
F1AE0481B*A002 - C SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A004 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A006 - C SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A008 - C SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A005 SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A006 SOFIM HPI 2.3L - EURO 3 view
S23ENSC20.10A007 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A005 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A007 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A009 SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A010 SOFIM HPI 2.3L - EURO 3 view
F1AE0481A*A002 - D SOFIM HPI 2.3L - EURO 3 view
F1AE0481B*A002 - D SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A006 - D SOFIM HPI 2.3L - EURO 3 view
S23ENSC24.10A008 - D SOFIM HPI 2.3L - EURO 3 view
