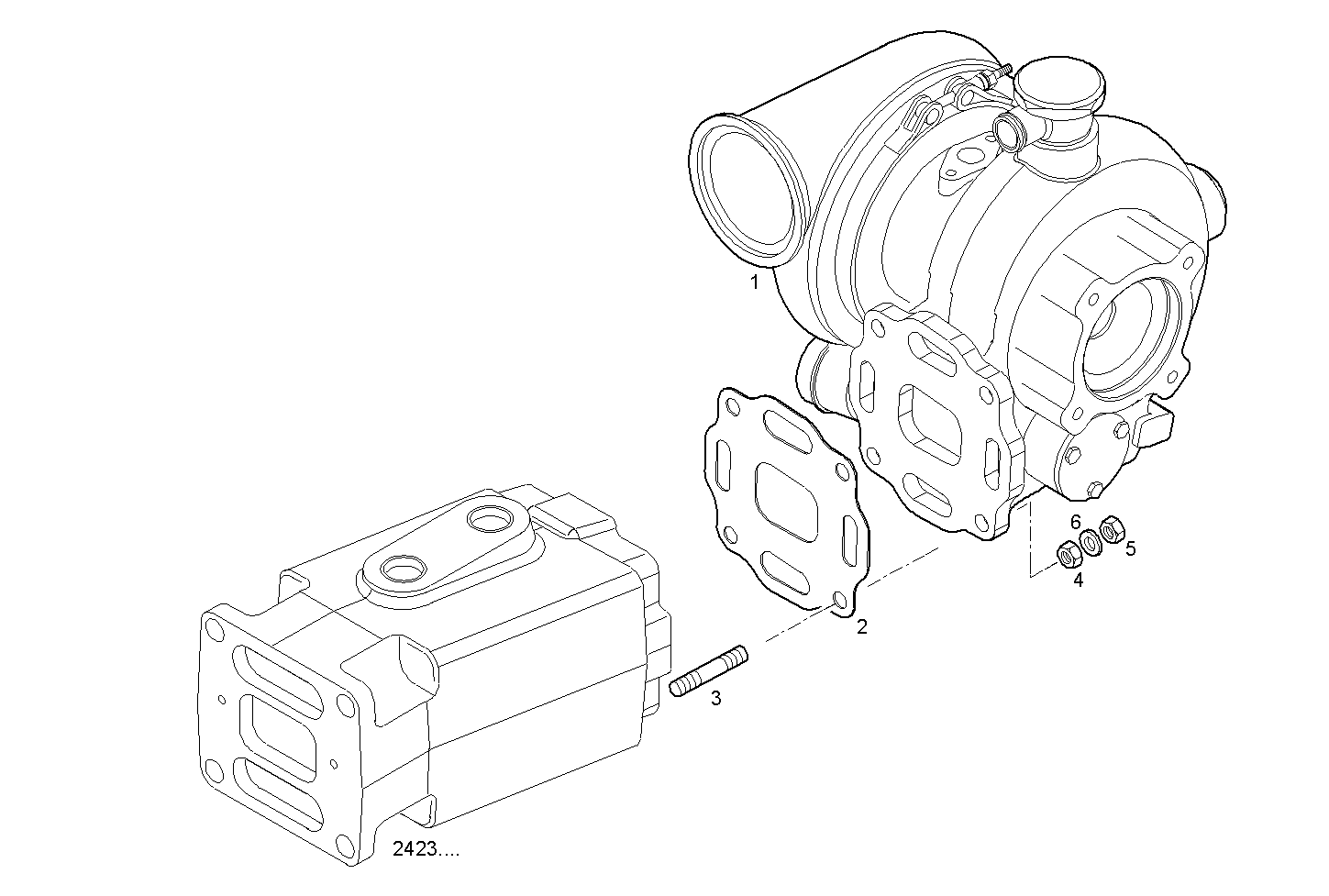

TURBOCHARGER
Assembly ID: 2400.235
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8040164 | TURBOCHARGER | 1 | ||
| 2 | 8027510 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16748734 | STUD | 4 | ||
| 4 | 4927248 | NUT | 4 | ||
| 5 | 8100961 | NUT | 4 | ||
| 6 | 17090174 | SPRING WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENTM55.12 | CURSOR 8 | view |
