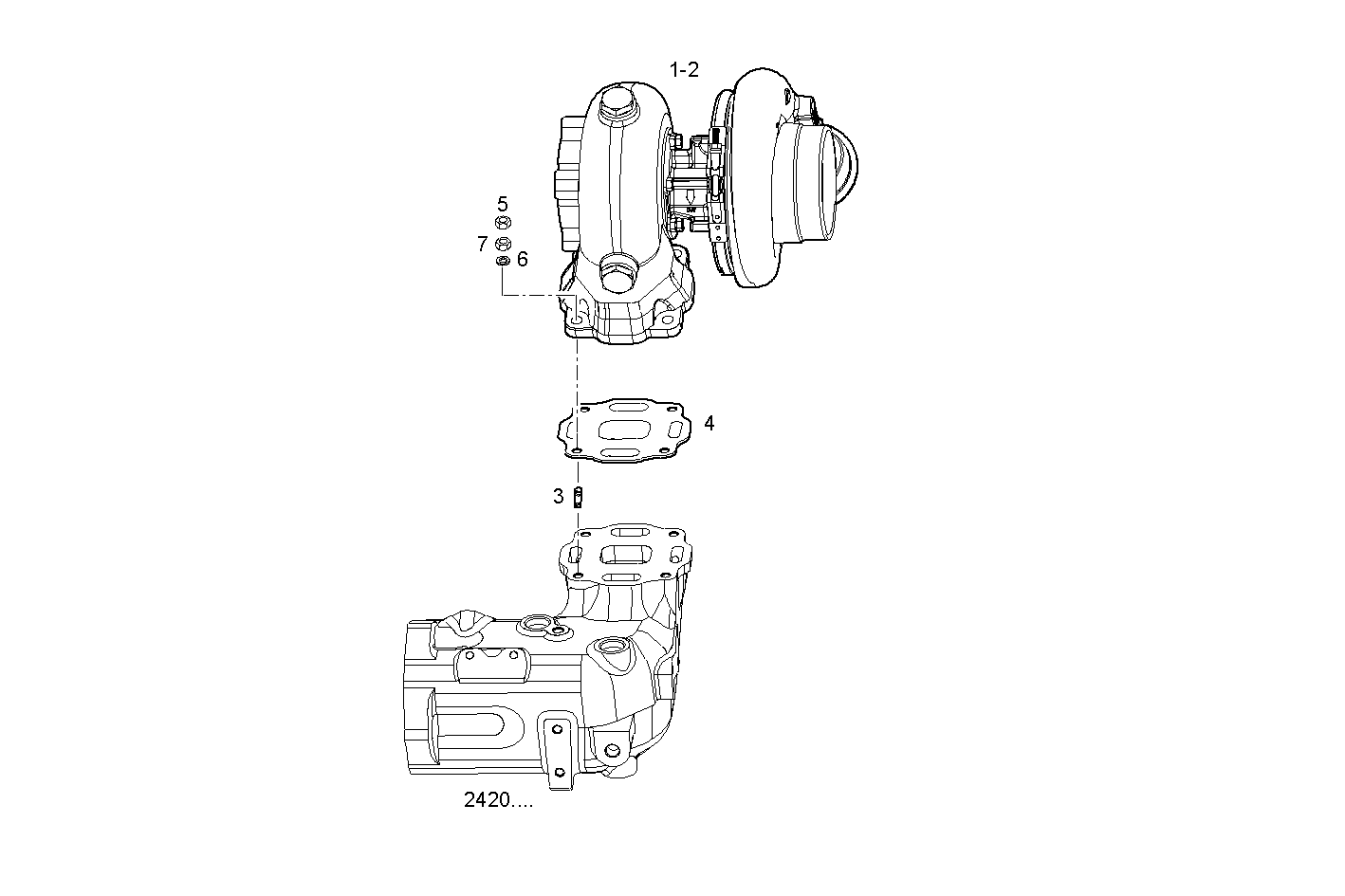

TURBOCHARGER
Assembly ID: 2400.246
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8036994 | WATER COOL.TURBOCHARGER | 1 | ||
| 2 | 8036995 | WATER COOL.TURBOCHARGER | 1 | ||
| 3 | 8041453 | STUD | 8 | ||
| 4 | 8027510 | FLAT ENGINE GASKET | 2 | ||
| 5 | 17038131 | HEXAGON NUT | 8 | ||
| 6 | 17090274 | WASHER | 8 | ||
| 7 | 16979635 | HEXAGON NUT | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| V08ENTM11.10D210 | VECTOR 8 | view |
| V08ENTM75.10A210 | VECTOR 8 | view |
| V08ENTM75.10B210 | VECTOR 8 | view |
| V08ENTM75.10B230 | VECTOR 8 | view |
| V08ENTM11.10C210 | VECTOR 8 | view |
| V08ENTM11.10P210 | VECTOR 8 | view |
| V08ENTM11.10R210 | VECTOR 8 | view |
