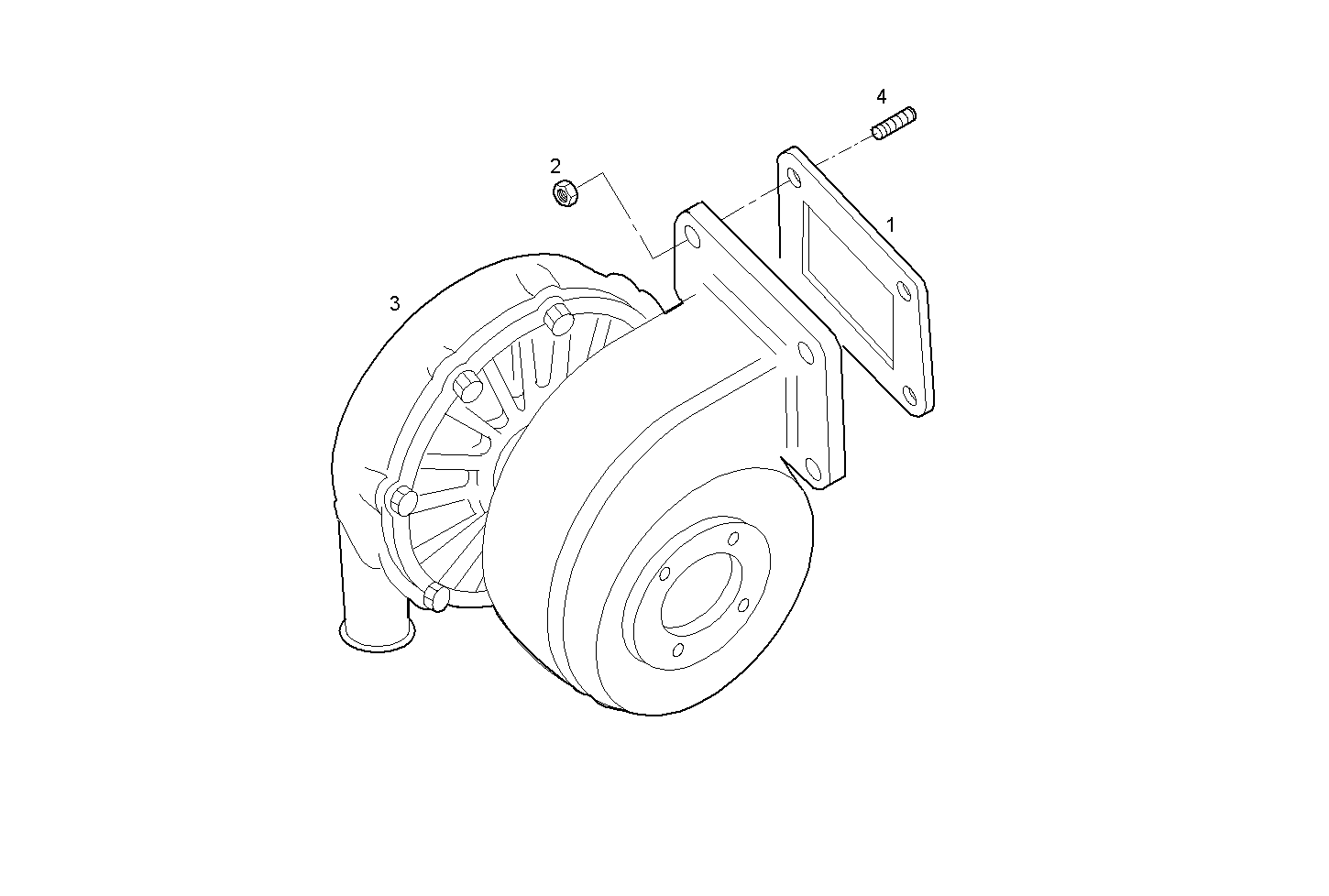

TURBOCHARGER
Assembly ID: 2400.259
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98453300 | FLAT ENGINE GASKET | 1 | ||
| 2 | 500300795 | HEXAGON NUT | 4 | ||
| 3 | 504195315 | TURBOCHARGER | 1 | ||
| 4 | 16731370 | STUD | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE9685A*E001 | CURSOR 13 - TIER 3 | view |
| C13ENTX60.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX61.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX62.00 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.R991 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.A001 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.A008 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.A011 | CURSOR 13 - TIER 3 | view |
