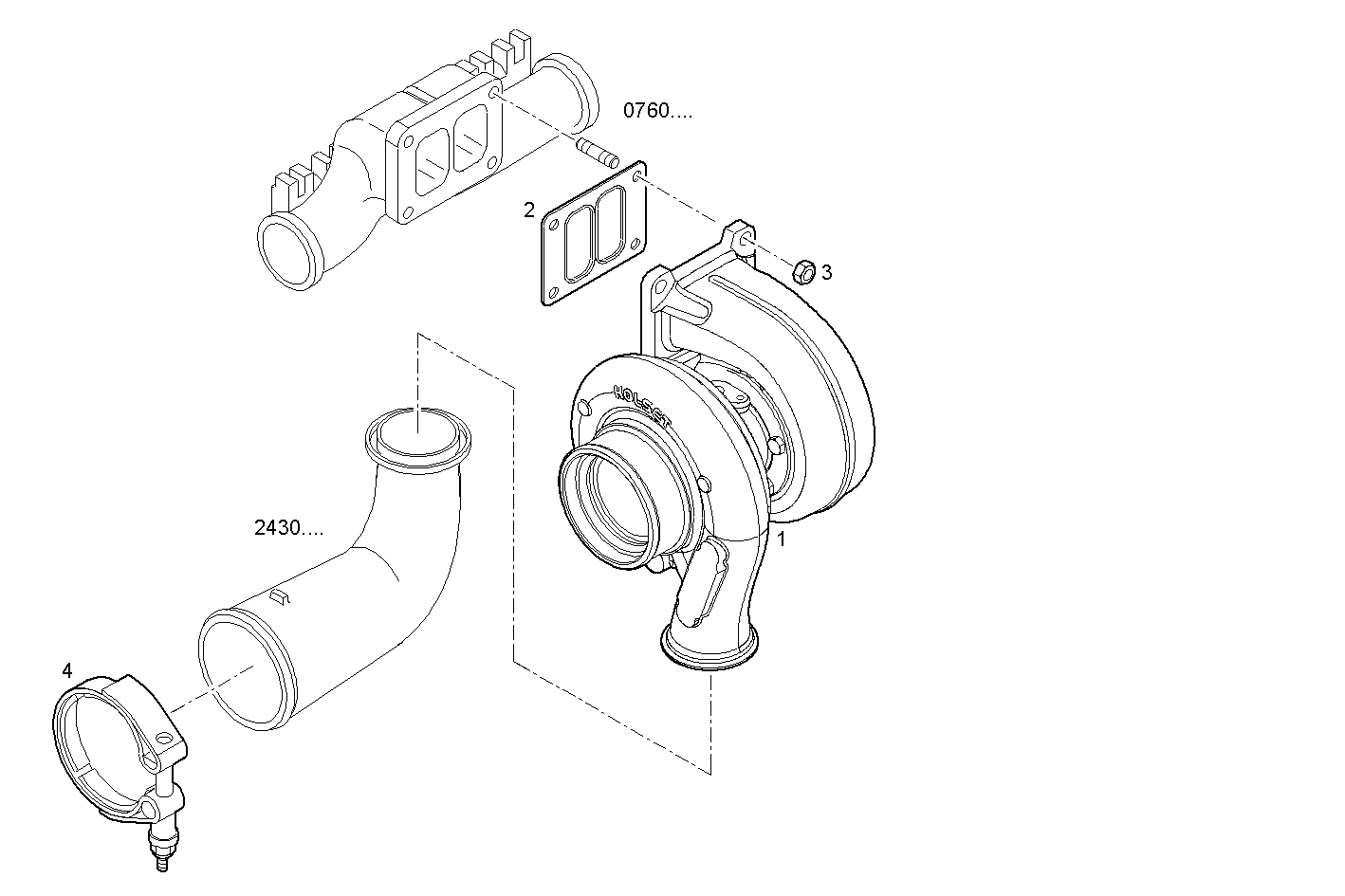

TURBOCHARGER
Assembly ID: 2400.260
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504179011 | TURBOCHARGER | 1 | ||
| 2 | 98451118 | GASKET | 1 | ||
| 3 | 500300795 | HEXAGON NUT | 4 | ||
| 4 | 500390639 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE9684A*E004 | CURSOR 9 - TIER 3 | view |
| F2CE9684A*E014 | CURSOR 9 - TIER 3 | view |
