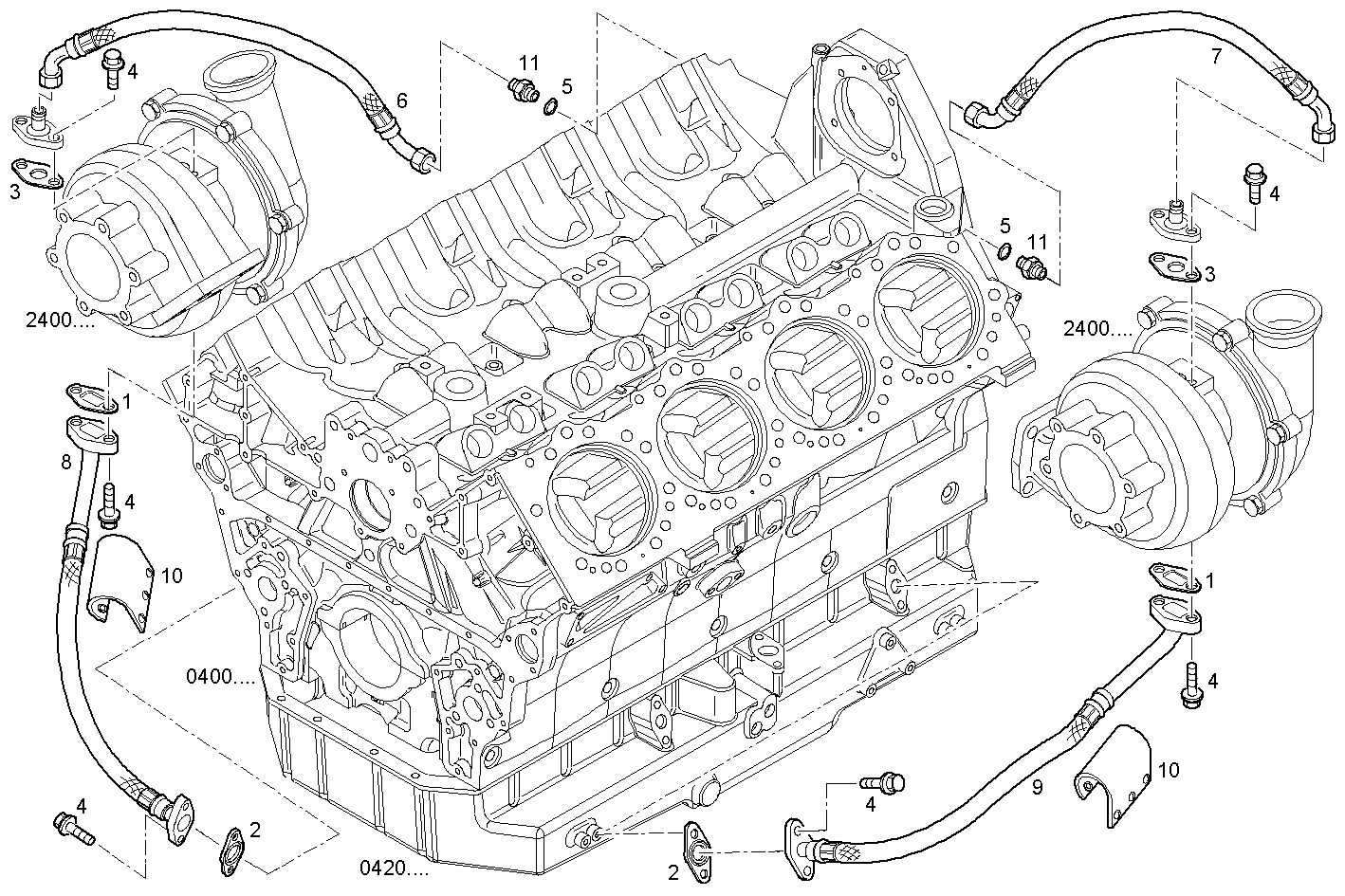

TURBOCHARGER
Assembly ID: 2400.264-04
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98412509 | FLAT ENGINE GASKET | 2 | ||
| 2 | 99475979 | FLAT ENGINE GASKET | 2 | ||
| 3 | 61318303 | GASKET | 2 | ||
| 4 | 16673635 | HEXAGON BOLT | 12 | ||
| 5 | 99489017 | SEAL GASKET | 2 | ||
| 6 | 504042531 | OIL LINE | 1 | ||
| 7 | 504042532 | OIL LINE | 1 | ||
| 8 | 504042533 | OIL LINE | 1 | ||
| 9 | 504042534 | OIL LINE | 1 | ||
| 10 | 504116052 | PROTECTION | 2 | ||
| 11 | 504142313 | SCREW CONNECTOR | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883X*A202 | VECTOR 8 | view |
