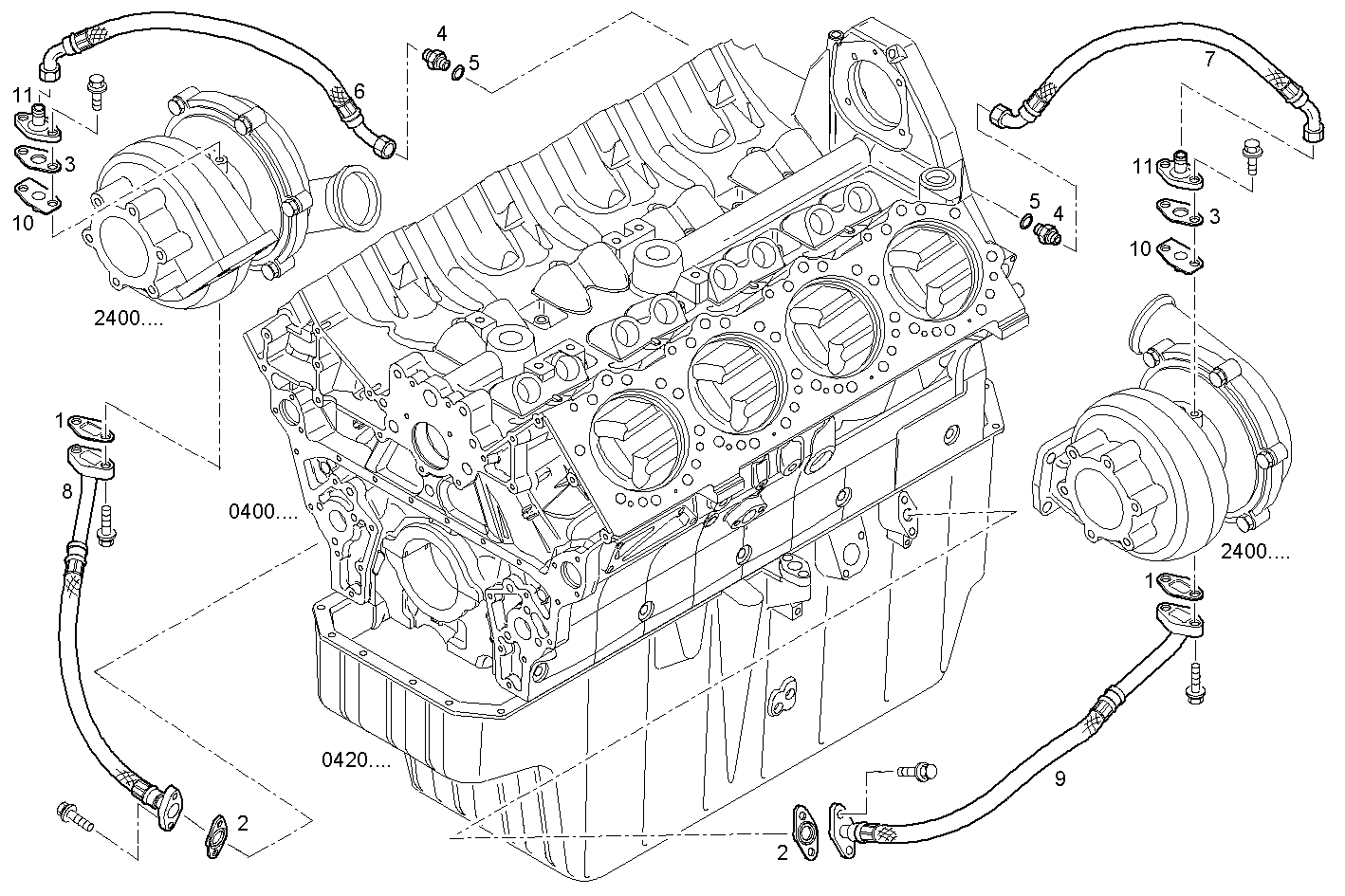

TURBOCHARGER
Assembly ID: 2400.270-03
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98412509 | FLAT ENGINE GASKET | 2 | ||
| 2 | 99475979 | FLAT ENGINE GASKET | 2 | ||
| 3 | 61318303 | GASKET | 2 | ||
| 4 | 504142313 | SCREW CONNECTOR | 2 | ||
| 5 | 99489017 | SEAL GASKET | 2 | ||
| 6 | 504042531 | OIL LINE | 1 | ||
| 7 | 504042532 | OIL LINE | 1 | ||
| 8 | 504120176 | OIL LINE | 1 | ||
| 9 | 504120174 | OIL LINE | 1 | ||
| 10 | 98482093 | GASKET | 2 | ||
| 11 | 4764795 | THREADED UNION | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVAE2884A*B200 | VECTOR 8 | view |
