TURBOCHARGER

Assembly ID: 2400.271

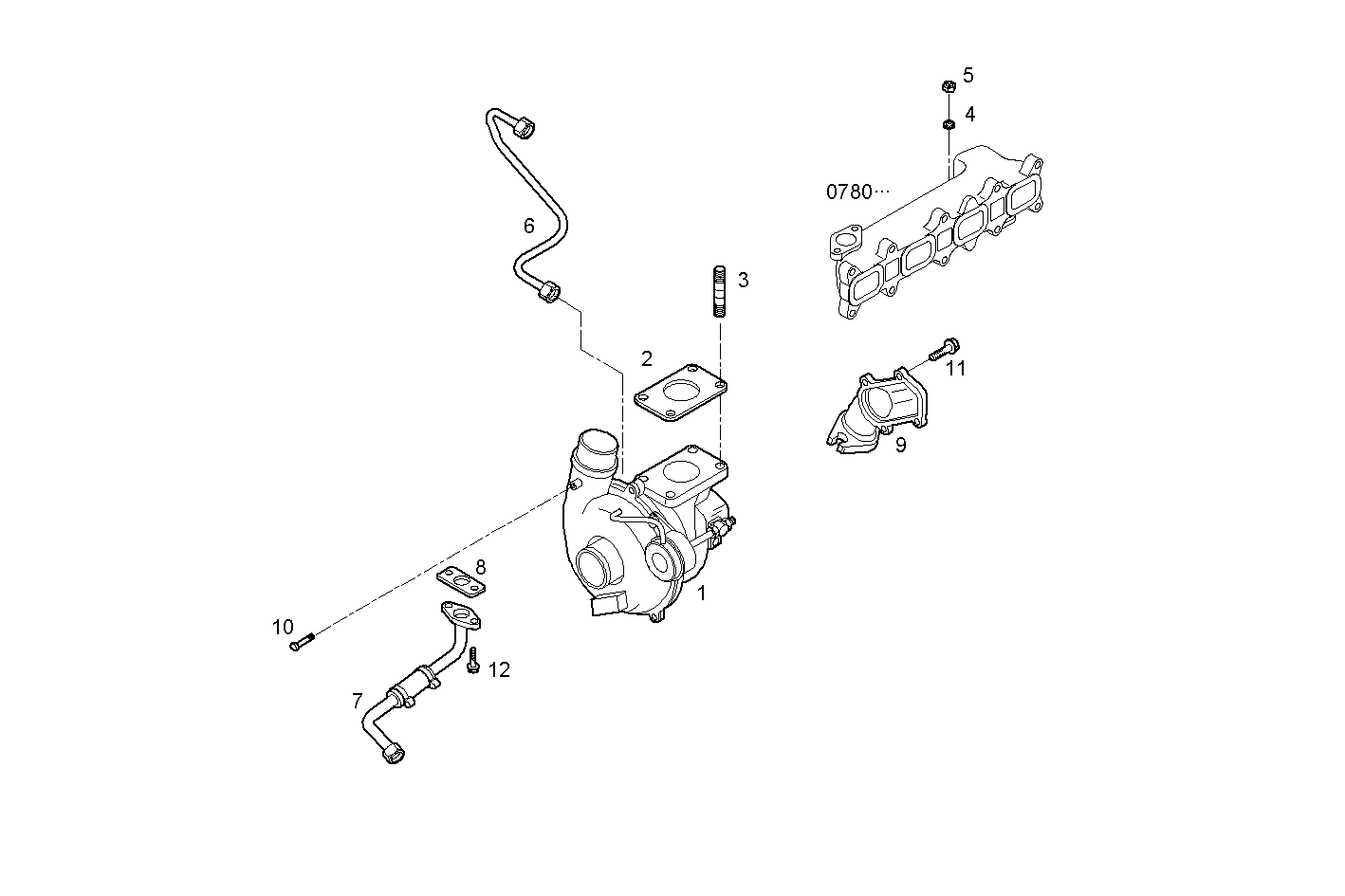

TURBOCHARGER

Parts

# Part number Description Note Quantity
1 504137713 TURBOCHARGER 1
2 4834948 EXH. MANIFOLD GKT 1
3 16729424 STUD 4
4 17094914 WASHER 4
5 500322677 HEXAGON NUT 4
6 504107712 OIL LINE 1
7 504085335 OIL LINE 1
8 500370706 FLAT ENGINE GASKET 1
9 504131857 AIR PIPE/DUCT 1
10 18137825 HEXAGON BOLT 1
11 16673735 HEXAGON BOLT 4
12 16585825 HEXAGON BOLT 2

Applies to engines

Engine Family
F1CE0481F*A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.10P002 SOFIM HPI 3.0L - EURO 4 view
F1CE0487K*C502 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A002 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A003 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*C503 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*C001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.30A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.91L003 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*A002 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.11A001 SOFIM HPI 3.0L - EURO 4 view
F1CE0481L*A003 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*A003 SOFIM HPI 3.0L - EURO 4 view
