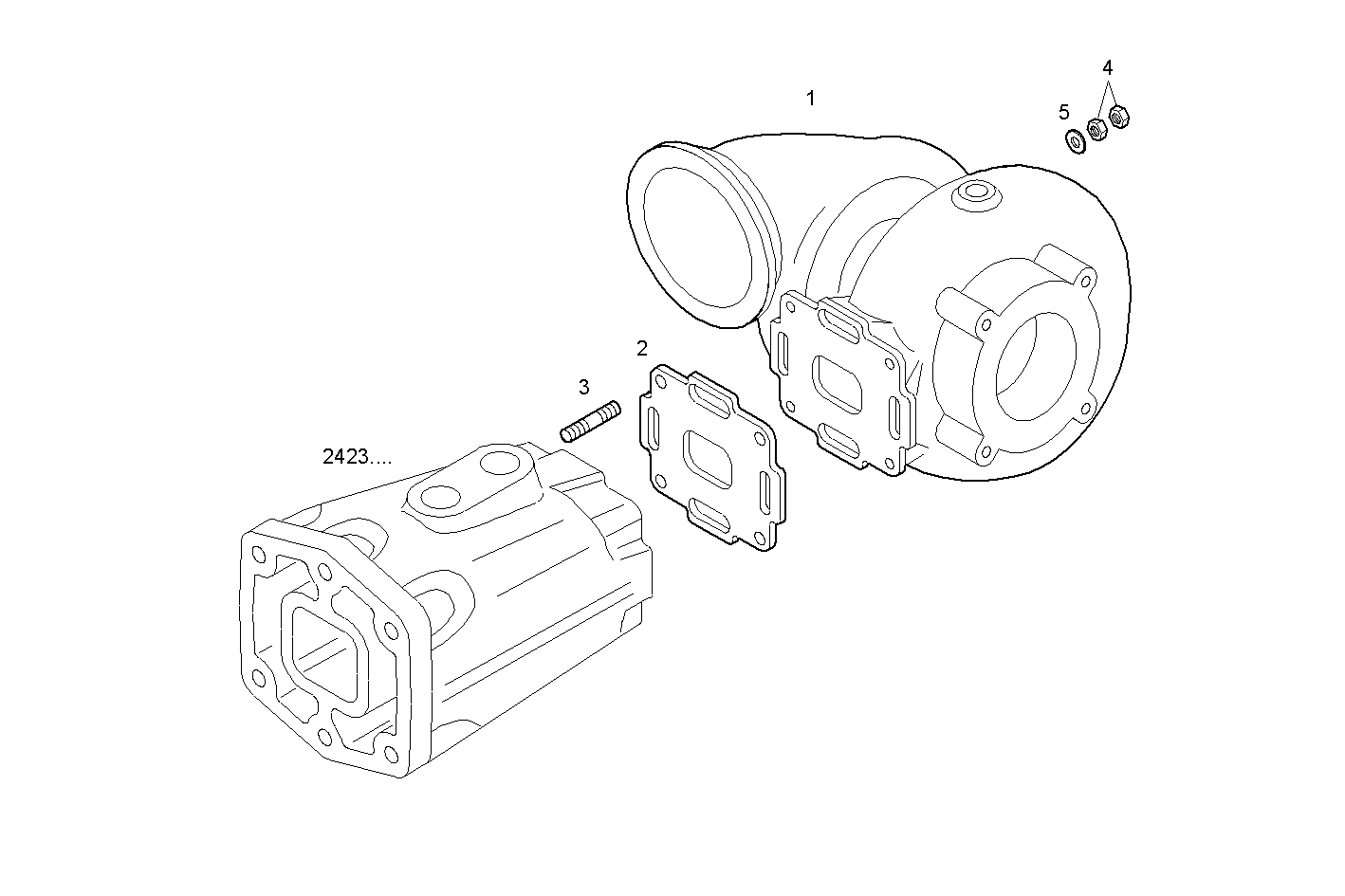

TURBOCHARGER
Assembly ID: 2400.273
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8042405 | TURBOCHARGER | 1 | ||
| 2 | 8027510 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16748834 | STUD | 4 | ||
| 4 | 17042631 | NUT | 8 | ||
| 5 | 17090274 | WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM50.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
| C13ENTM50.12 | CURSOR 13 | view |
