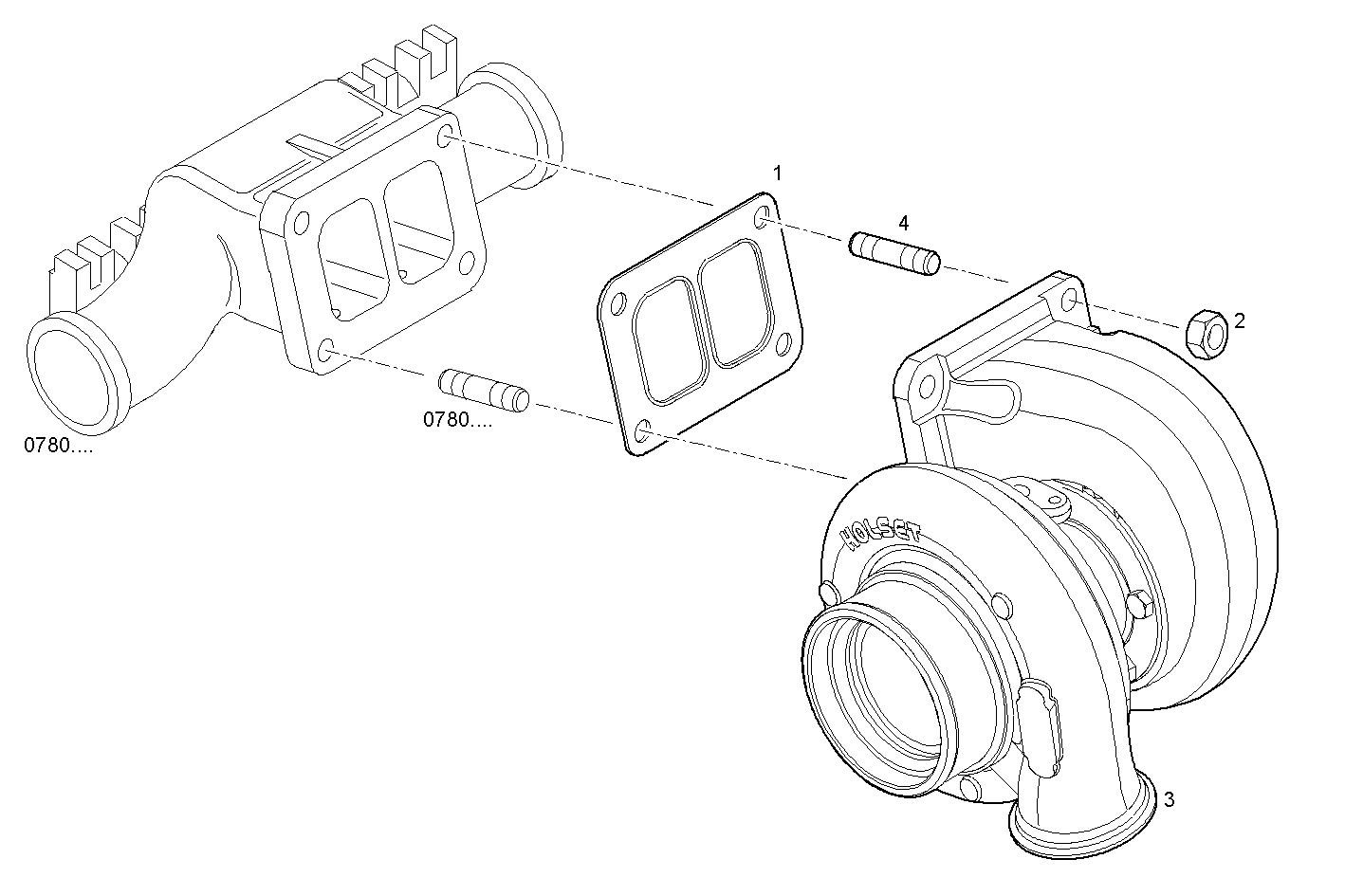

TURBOCHARGER
Assembly ID: 2400.275
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98451118 | GASKET | 1 | ||
| 2 | 500300795 | HEXAGON NUT | 4 | ||
| 3 | 504130994 | TURBOCHARGER | 1 | ||
| 4 | 16731370 | STUD | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE9687A*E001 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A800 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A801 | CURSOR 10 - TIER 3 | view |
| F3AE9687B*E001 | CURSOR 10 - TIER 3 | view |
| F3AE9687C*E001 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A802 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A008 | CURSOR 10 - TIER 3 | view |
