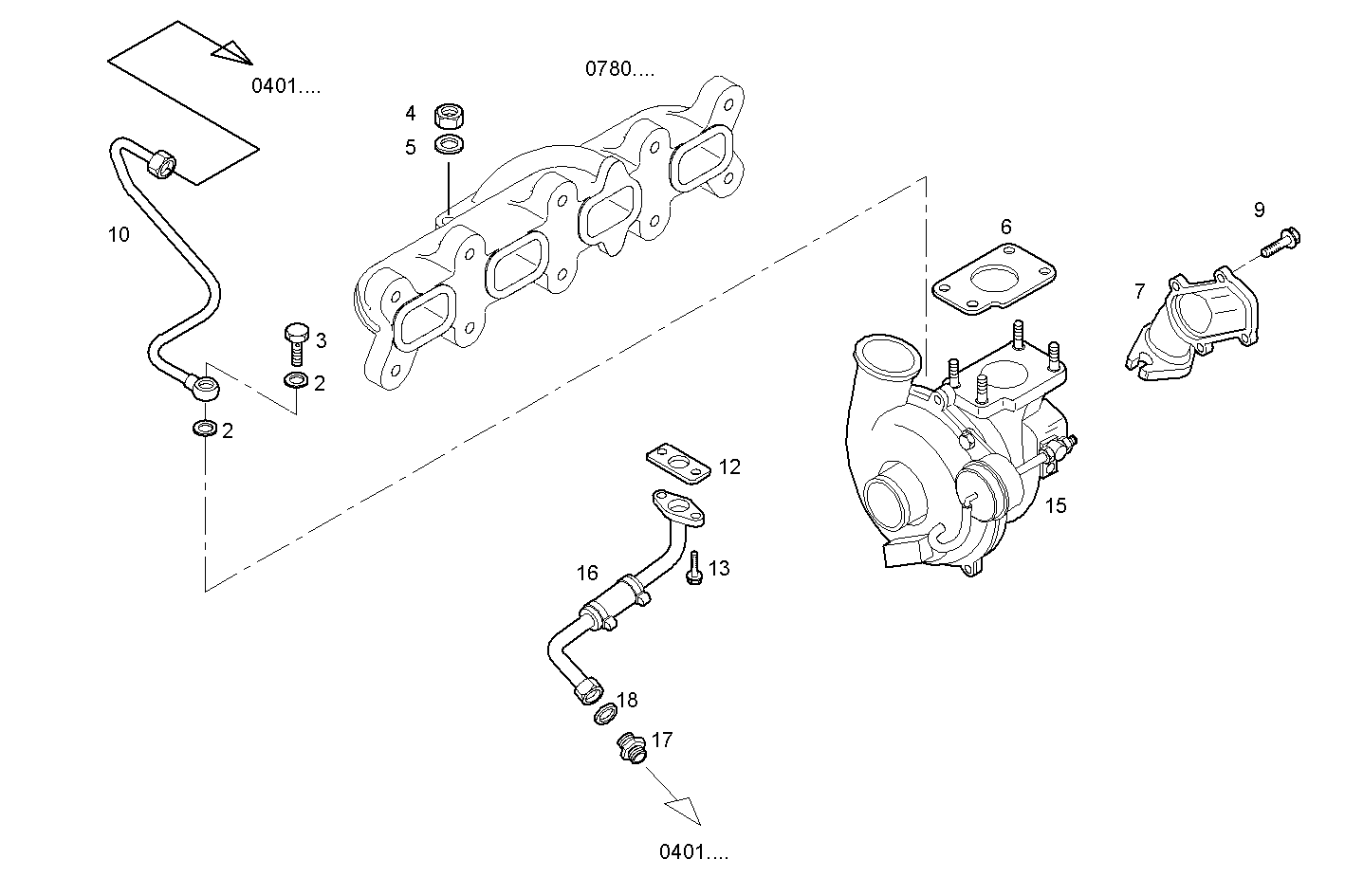

TURBOCHARGER

Assembly ID: 2400.301

TURBOCHARGER

Parts

# Part number Description Note Quantity
2 10296160 SEAL GASKET 2
3 504081281 SCREW CONNECTOR 1
4 500322677 HEXAGON NUT 4
5 17094914 WASHER 4
6 500378462 EXH. MANIFOLD GKT 1
7 504076692 AIR PIPE/DUCT 1
9 16673735 HEXAGON BOLT 4
10 504044738 OIL LINE 1
12 500370706 FLAT ENGINE GASKET 1
13 16585825 HEXAGON BOLT 2
15 504136783 TURBOCHARGER 1
16 504106695 OIL LINE 1
17 504102023 SCREW CONNECTOR 1
18 11270460 GASKET 1

Applies to engines

Engine Family
F1AE0481G*A001 SOFIM HPI 2.3L - EURO 4 view
F1AE0481G*A003 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.00A001 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.00A002 SOFIM HPI 2.3L - EURO 4 view
F1AE0481G*A009 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A001 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A002 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A003 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A004 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.20A008 SOFIM HPI 2.3L - EURO 4 view
F1AE0481G*A007 SOFIM HPI 2.3L - EURO 4 view
S23ENS424.30A004 SOFIM HPI 2.3L - EURO 4 view
