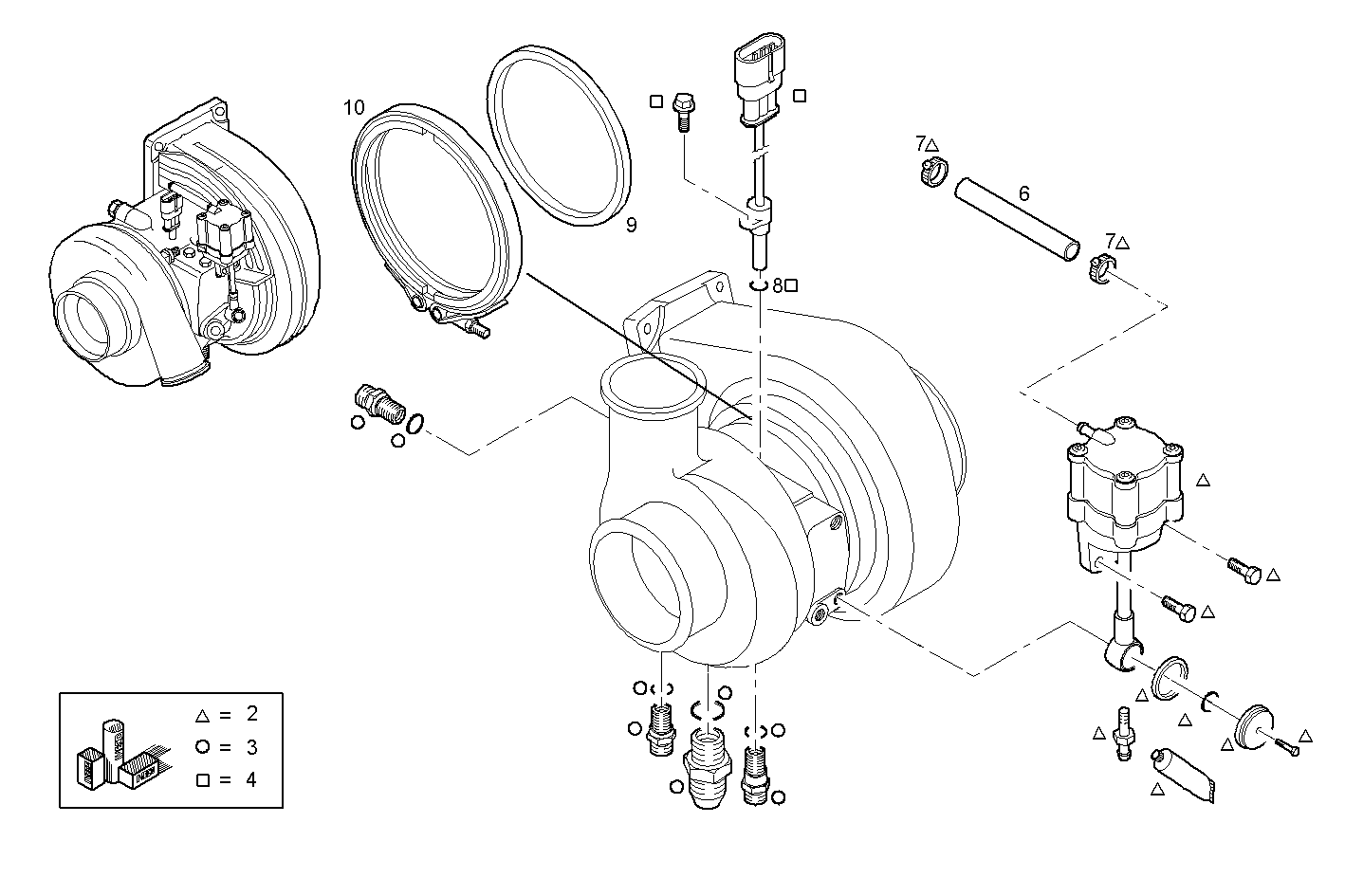

TURBOCHARGER
Assembly ID: 2405.015
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 2 | 42554897 | KIT-VARIAB.GEOM.TURB | 1 | ||
| 3 | 42539402 | KIT-VARIAB.GEOM.TURB | 1 | ||
| 4 | 42539403 | KIT-VARIAB.GEOM.TURB | 1 | ||
| 6 | 99475987 | HOSE | 1 | ||
| 7 | 500332605 | CLIP | 2 | ||
| 8 | 42535828 | O-RING | 1 | ||
| 9 | 42546381 | WASHER | 1 | ||
| 10 | 42546380 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0681D*B315 | CURSOR 10 - EURO 3 | view |
| C10ENTC23.00A002 | CURSOR 10 - EURO 3 | view |
