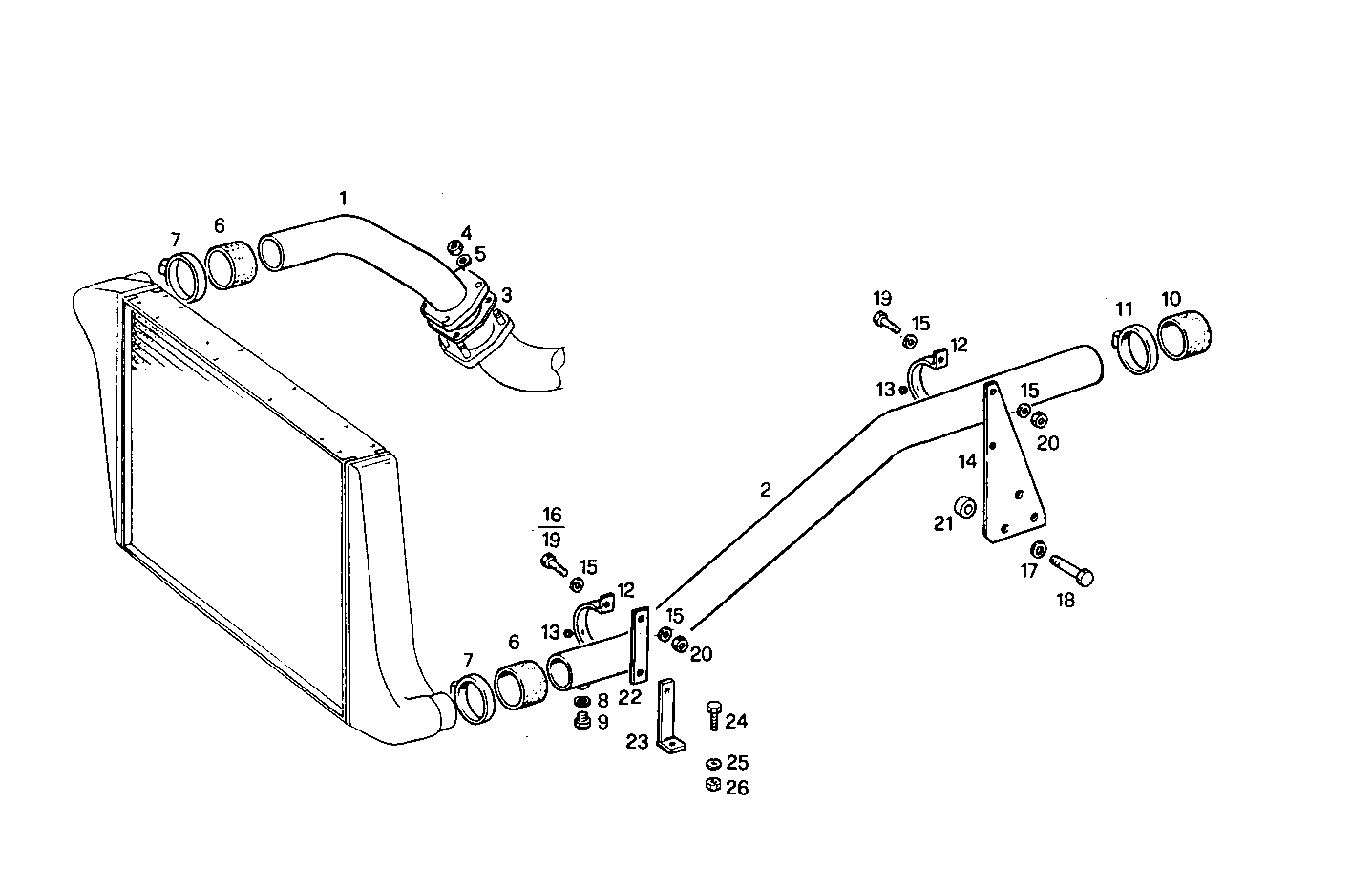

| 1 |
8010582
|
AIR PIPE/DUCT
|
|
1
|
|
| 2 |
8010583
|
AIR PIPE/DUCT
|
|
1
|
|
| 3 |
98415081
|
FLAT ENGINE GASKET
|
|
1
|
|
| 4 |
17037931
|
HEXAGON NUT
|
|
4
|
|
| 5 |
17089474
|
SPRING WASHER
|
|
4
|
|
| 6 |
42088612
|
WATER HOSE
|
|
2
|
|
| 7 |
8005839
|
CLIP
|
|
4
|
|
|
17769591 |
CLIP |
|
4 |
|
| 8 |
4858607
|
WASHER
|
|
1
|
|
| 9 |
16992211
|
THREADED PLUG
|
|
1
|
|
| 10 |
4865230
|
TURBOCHARGER HOSE
|
|
1
|
|
| 11 |
4788410
|
CLIP
|
|
2
|
|
|
17765393 |
CLIP |
|
2 |
|
| 12 |
8108759
|
CLIP
|
|
2
|
|
| 13 |
1366290
|
RUBBER LUG
|
|
8
|
|
| 14 |
8005097
|
RETAINER
|
|
1
|
|
| 15 |
17089774
|
SPRING WASHER
|
|
4
|
|
| 16 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 17 |
17092374
|
SPRING WASHER
|
|
2
|
|
| 18 |
11391521
|
HEXAGON BOLT
|
|
2
|
|
| 19 |
16605624
|
HEXAGON BOLT
|
|
3
|
|
|
16605635 |
HEXAGON BOLT |
|
3 |
|
| 20 |
17037931
|
HEXAGON NUT
|
|
4
|
|
| 21 |
4934451
|
SPACING BAR
|
|
2
|
|
| 22 |
8114420
|
RETAINER
|
|
1
|
|
| 23 |
8011585
|
RETAINER
|
|
1
|
|
| 24 |
16608824
|
HEXAGON BOLT
|
|
1
|
|
| 25 |
17090174
|
SPRING WASHER
|
|
1
|
|
| 26 |
17038121
|
HEXAGON NUT
|
|
1
|
|
|
17038131 |
HEXAGON NUT |
|
1 |
|
