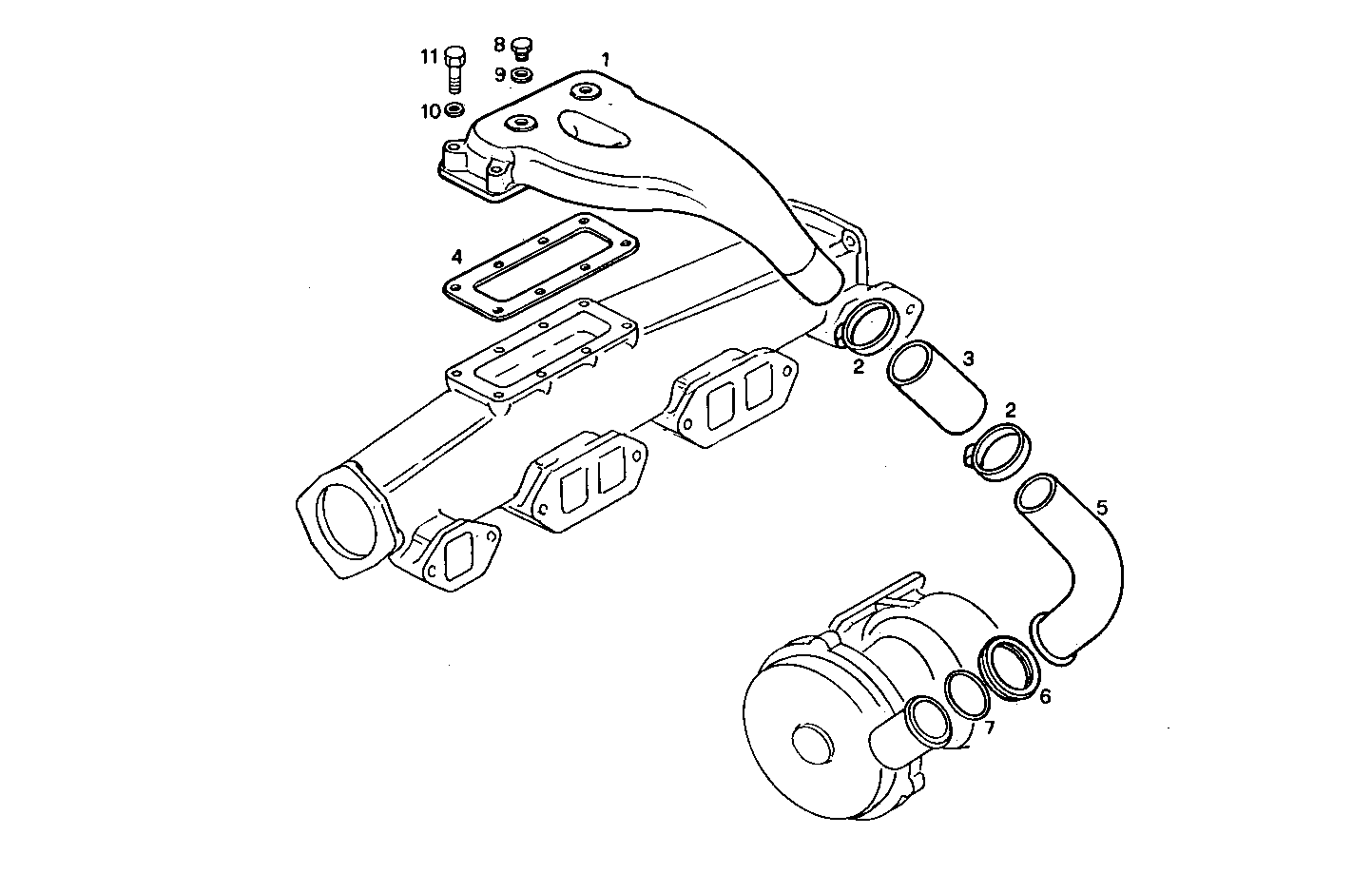

SUPERCHARGING LINES
Assembly ID: 2420.064
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8017705 | INTAKE ELBOW | 1 | ||
| 2 | 17764992 | CLIP | 2 | ||
| 3 | 98437496 | RUBBER SLEEVE | 1 | ||
| 4 | 8019078 | GASKET | 1 | ||
| 5 | 8017685 | EXHAUST ELBOW | 1 | ||
| 6 | 4853260 | CLIP | 1 | ||
| 7 | 17284281 | O-RING | 1 | ||
| 8 | 10304911 | THREADED PLUG | 2 | ||
| 9 | 98429280 | SEAL GASKET | 2 | ||
| 10 | 17793804 | WASHER | 7 | ||
| 11 | 8023383 | SCREW | 7 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
| 8361SRI12.00A800 | 8361SRi12 | view |
