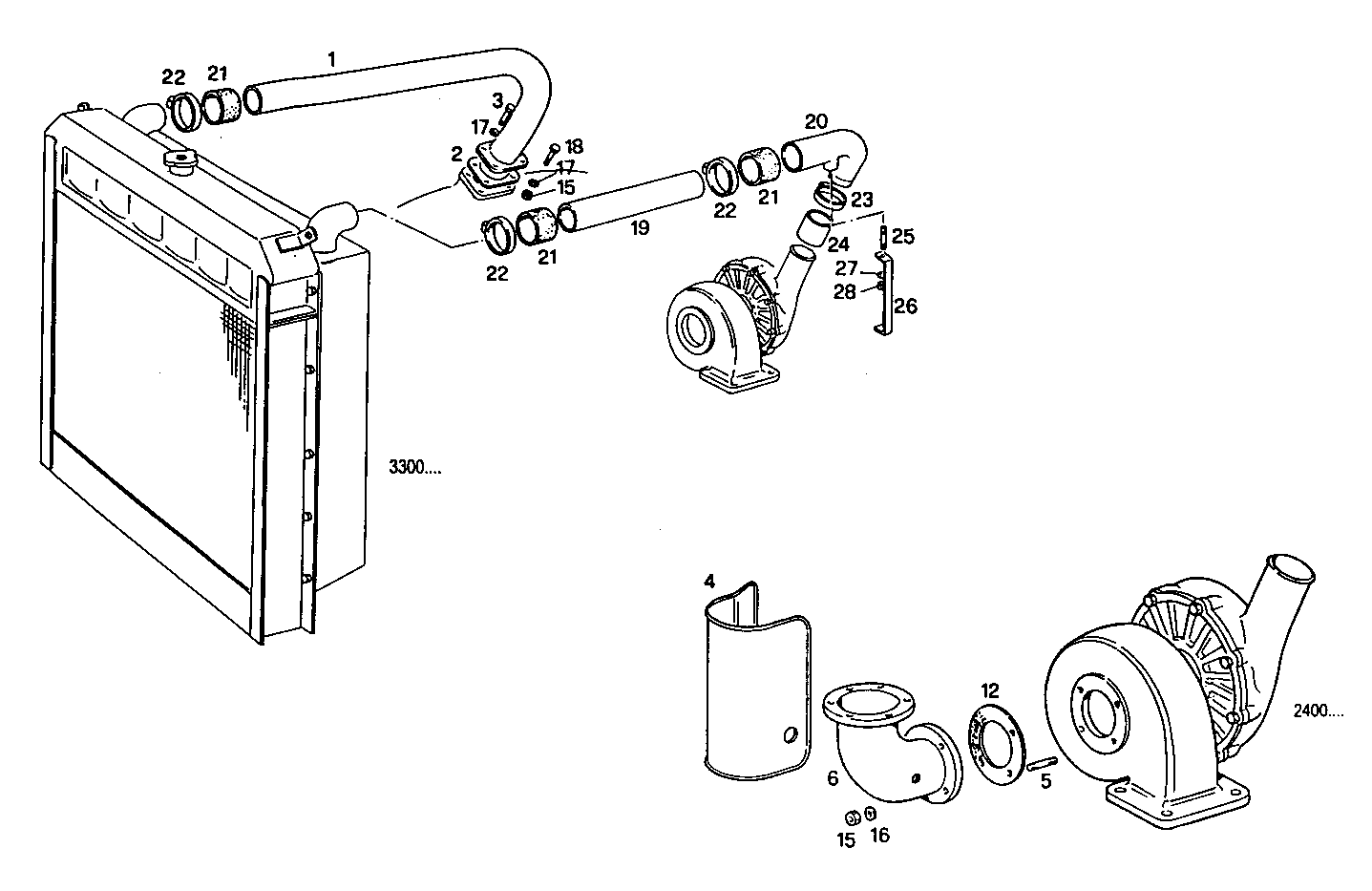

| 1 |
8022100
|
AIR PIPE/DUCT
|
|
1
|
|
| 2 |
98400790
|
FLAT ENGINE GASKET
|
|
1
|
|
| 3 |
16605624
|
HEXAGON BOLT
|
|
2
|
|
|
16605635 |
HEXAGON BOLT |
|
2 |
|
| 4 |
8008237
|
PROTECTION
|
|
1
|
|
| 5 |
16729424
|
STUD
|
|
4
|
|
| 6 |
8105001
|
EXHAUST ELBOW
|
|
1
|
|
| 12 |
4734747
|
GASKET
|
|
1
|
|
| 15 |
17037931
|
HEXAGON NUT
|
|
6
|
|
| 16 |
17089471
|
SPRING WASHER
|
|
4
|
|
|
17089474 |
SPRING WASHER |
|
4 |
|
| 17 |
17094914
|
WASHER
|
|
4
|
|
| 18 |
16605824
|
HEXAGON BOLT
|
|
2
|
|
| 19 |
8018708
|
AIR PIPE/DUCT
|
|
1
|
|
| 20 |
8008230
|
AIR MANIFOLD
|
|
1
|
|
| 21 |
8107383
|
RUBBER SLEEVE
|
|
3
|
|
|
99444730 |
RUBBER SLEEVE |
|
3 |
|
| 22 |
8019910
|
CLIP
|
|
6
|
|
| 23 |
4830090
|
CLIP
|
|
2
|
|
| 24 |
98421377
|
RUBBER SLEEVE
|
|
1
|
|
|
99444733 |
RUBBER SLEEVE |
|
1 |
|
| 25 |
13449221
|
STUD
|
|
1
|
|
| 26 |
8008232
|
RETAINER
|
|
1
|
|
| 27 |
17090174
|
SPRING WASHER
|
|
1
|
|
| 28 |
17038221
|
HEXAGON NUT
|
|
1
|
|
|
17038225 |
HEXAGON NUT |
|
1 |
|
