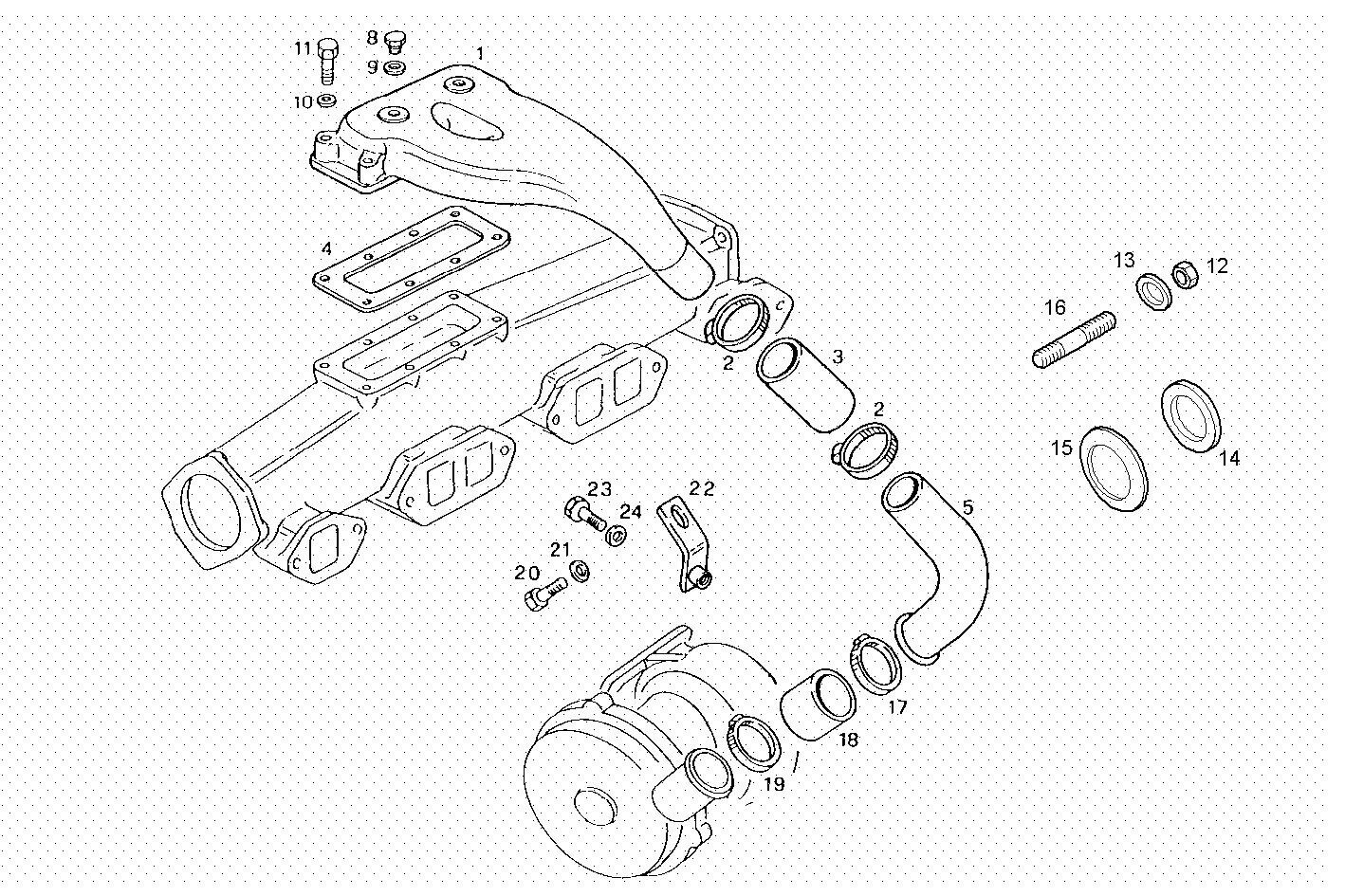

| 1 |
8017705
|
INTAKE ELBOW
|
|
1
|
|
| 2 |
8114464
|
CLIP
|
|
2
|
|
| 3 |
98437496
|
RUBBER SLEEVE
|
|
1
|
|
| 4 |
8019078
|
GASKET
|
|
1
|
|
| 5 |
8017680
|
EXHAUST ELBOW
|
|
1
|
|
| 8 |
10304911
|
THREADED PLUG
|
|
2
|
|
| 9 |
98429280
|
SEAL GASKET
|
|
2
|
|
| 10 |
17793804
|
WASHER
|
|
7
|
|
|
17793814 |
WASHER |
|
7 |
|
| 11 |
8023383
|
SCREW
|
|
7
|
|
| 12 |
17037921
|
HEXAGON NUT
|
|
4
|
|
| 13 |
16665504
|
WASHER
|
|
4
|
|
|
16665514 |
WASHER |
|
4 |
|
| 14 |
8113659
|
FLANGE
|
|
1
|
|
| 15 |
4729026
|
GASKET
|
|
1
|
|
| 16 |
16729424
|
STUD
|
|
4
|
|
| 17 |
17768591
|
CLIP
|
|
1
|
|
| 18 |
8017813
|
RUBBER SLEEVE
|
|
1
|
|
| 19 |
8019910
|
CLIP
|
|
1
|
|
| 20 |
16605424
|
SCREW
|
|
1
|
|
| 21 |
17089474
|
SPRING WASHER
|
|
1
|
|
| 22 |
8018445
|
RETAINER
|
|
1
|
|
| 23 |
16607924
|
HEXAGON BOLT
|
|
1
|
|
| 24 |
17090174
|
SPRING WASHER
|
|
1
|
|
