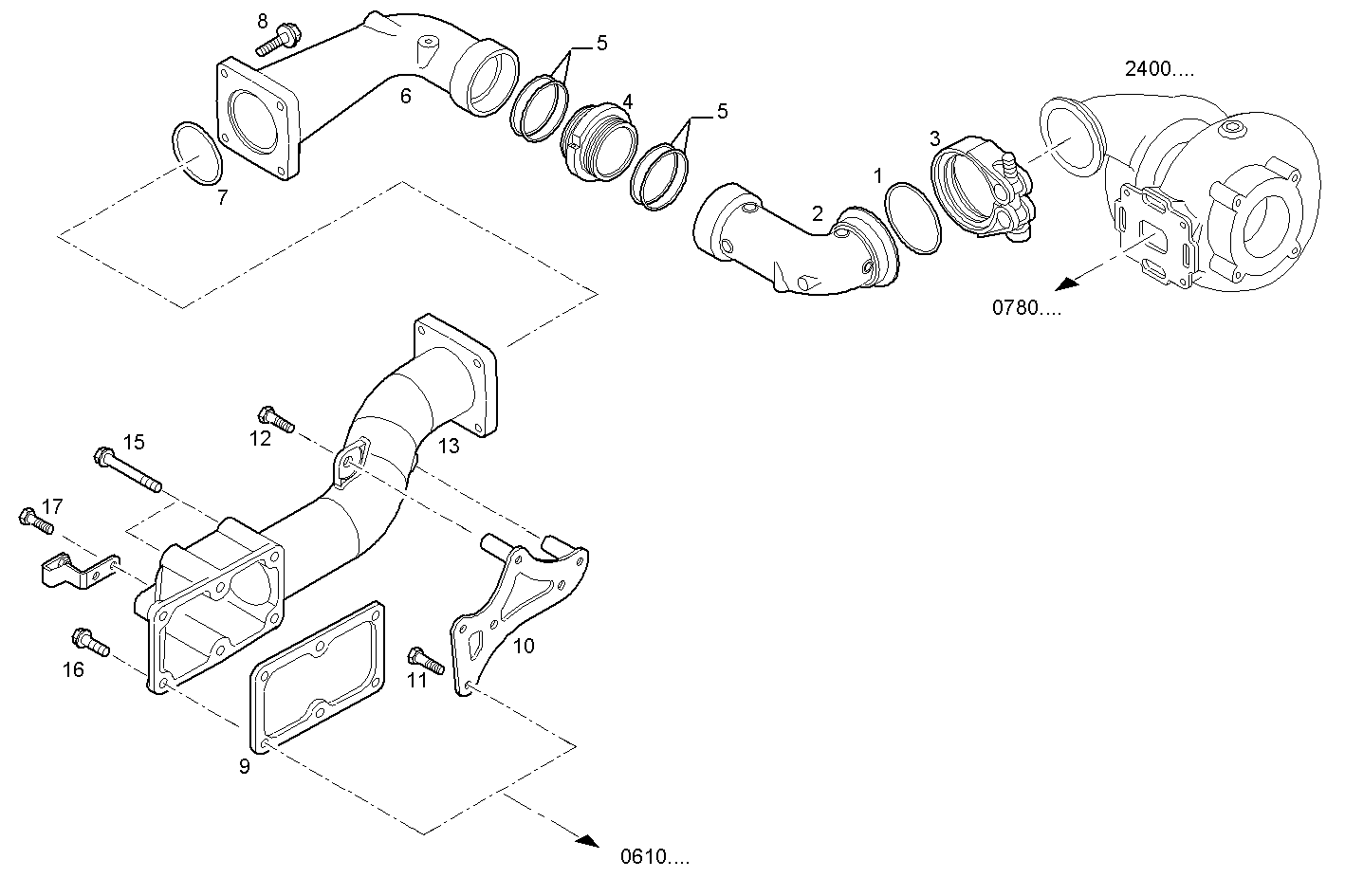

SUPERCHARGING LINES
Assembly ID: 2420.255
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 17285481 | O-RING | 1 | ||
| 2 | 8042421 | INTAKE ELBOW | 1 | ||
| 3 | 504073261 | CLIP | 1 | ||
| 4 | 8009896 | ADAPTER | 1 | ||
| 5 | 17290581 | O-RING | 4 | ||
| 6 | 8038089 | AIR PIPE/DUCT | 1 | ||
| 7 | 17291481 | O-RING | 1 | ||
| 8 | 16587425 | HEXAGON BOLT | 6 | ||
| 9 | 504026624 | FLAT ENGINE GASKET | 1 | ||
| 10 | 8043535 | FASTENING BRACKET | 1 | ||
| 11 | 16600224 | HEXAGON BOLT | 2 | ||
| 12 | 18139424 | HEXAGON BOLT | 2 | ||
| 13 | 8043431 | AIR PIPE/DUCT | 1 | ||
| 14 | 16587125 | HEXAGON BOLT | 2 | ||
| 15 | 16593125 | HEXAGON BOLT | 4 | ||
| 16 | 8043581 | RETAINER | 1 | ||
| 17 | 16586225 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
