AIR LINES
Assembly ID: 2423.003
Parts

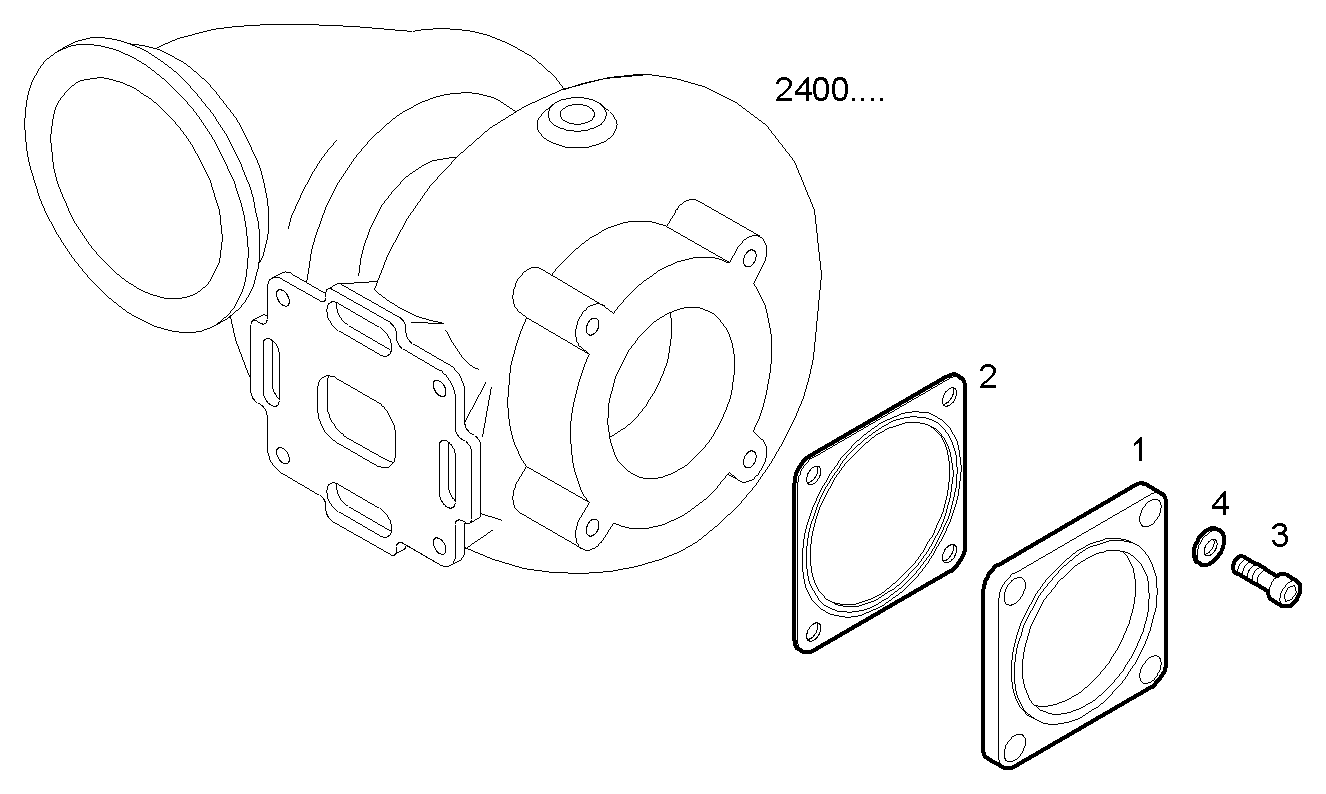

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8040169 | FLANGE | 1 | ||
| 2 | 8039361 | FLAT ENGINE GASKET | 1 | ||
| 3 | 16692124 | CYLIND-HEAD SCREW | 4 | ||
| 4 | 17089474 | SPRING WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM50.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
| C13ENTM50.12 | CURSOR 13 | view |
