AIR LINES
Assembly ID: 2423.019
Parts

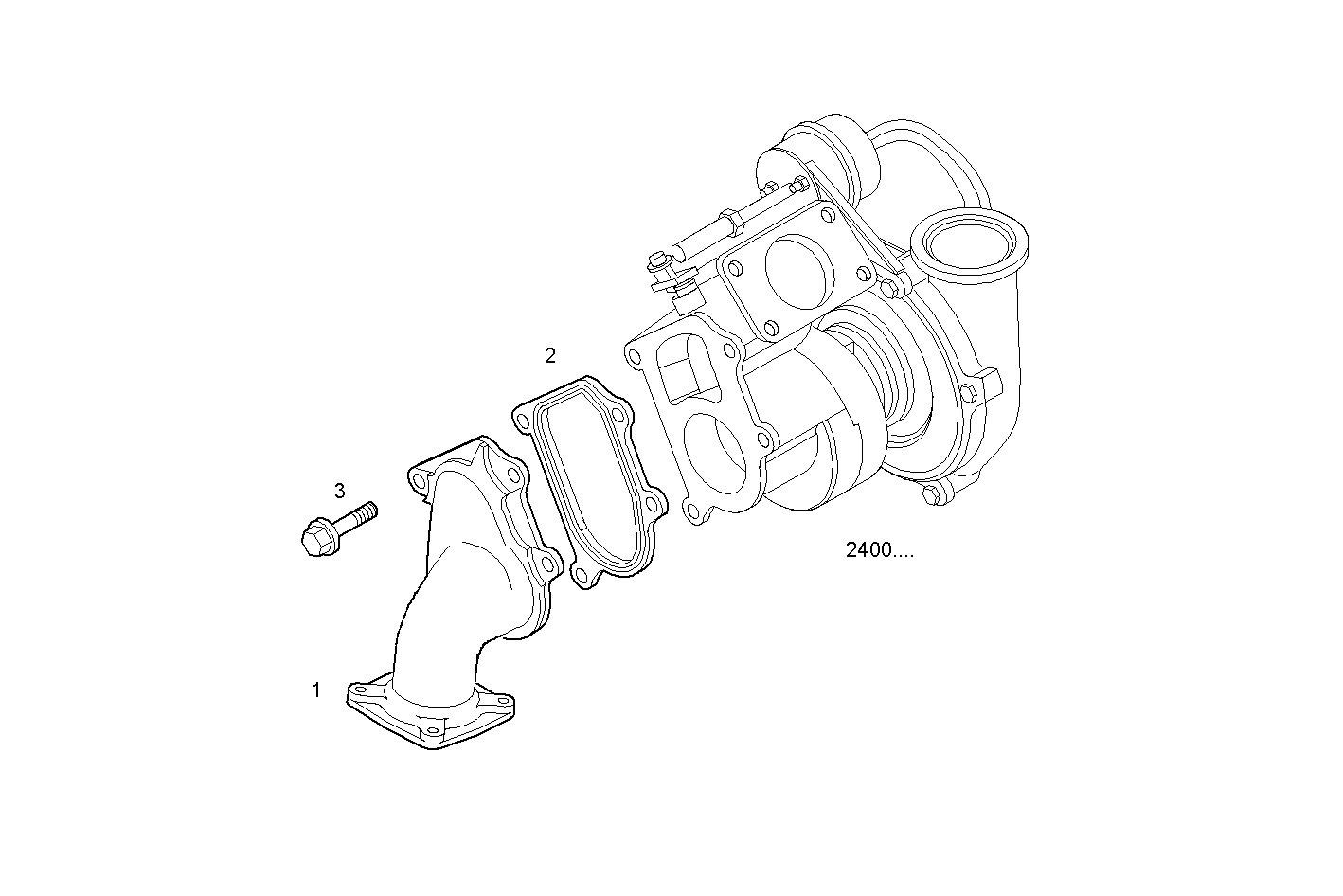

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4894509 | EXHAUST ELBOW | 1 | ||
| 2 | 4894510 | FLAT ENGINE GASKET | 1 | ||
| 3 | 99443257 | HEXAGON BOLT | 5 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0684B*D102 | NEF 6 electron. - TIER 2 | view |
| F4AE0684G*D102 | NEF 6 electron. - TIER 2 | view |
| F4AE0682H*C105 | NEF 6 electron. - EURO 3 | view |
| F4AE0684B*D103 | NEF 6 electron. - TIER 2 | view |
| N60ENTC27.00A001 | NEF 6 electron. - EURO 3 | view |
| F4AE3682F*P100 | NEF 6 electron. - EURO 4 | view |
| F4AE3682F*P101 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*P100 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*P101 | NEF 6 electron. - EURO 4 | view |
| F4AE3682A*R105 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*R104 | NEF 6 electron. - EURO 4 | view |
| F4AE3682E*R105 | NEF 6 electron. - EURO 4 | view |
| F4AE3682F*R103 | NEF 6 electron. - EURO 4 | view |
| F4AE3682F*R104 | NEF 6 electron. - EURO 4 | view |
