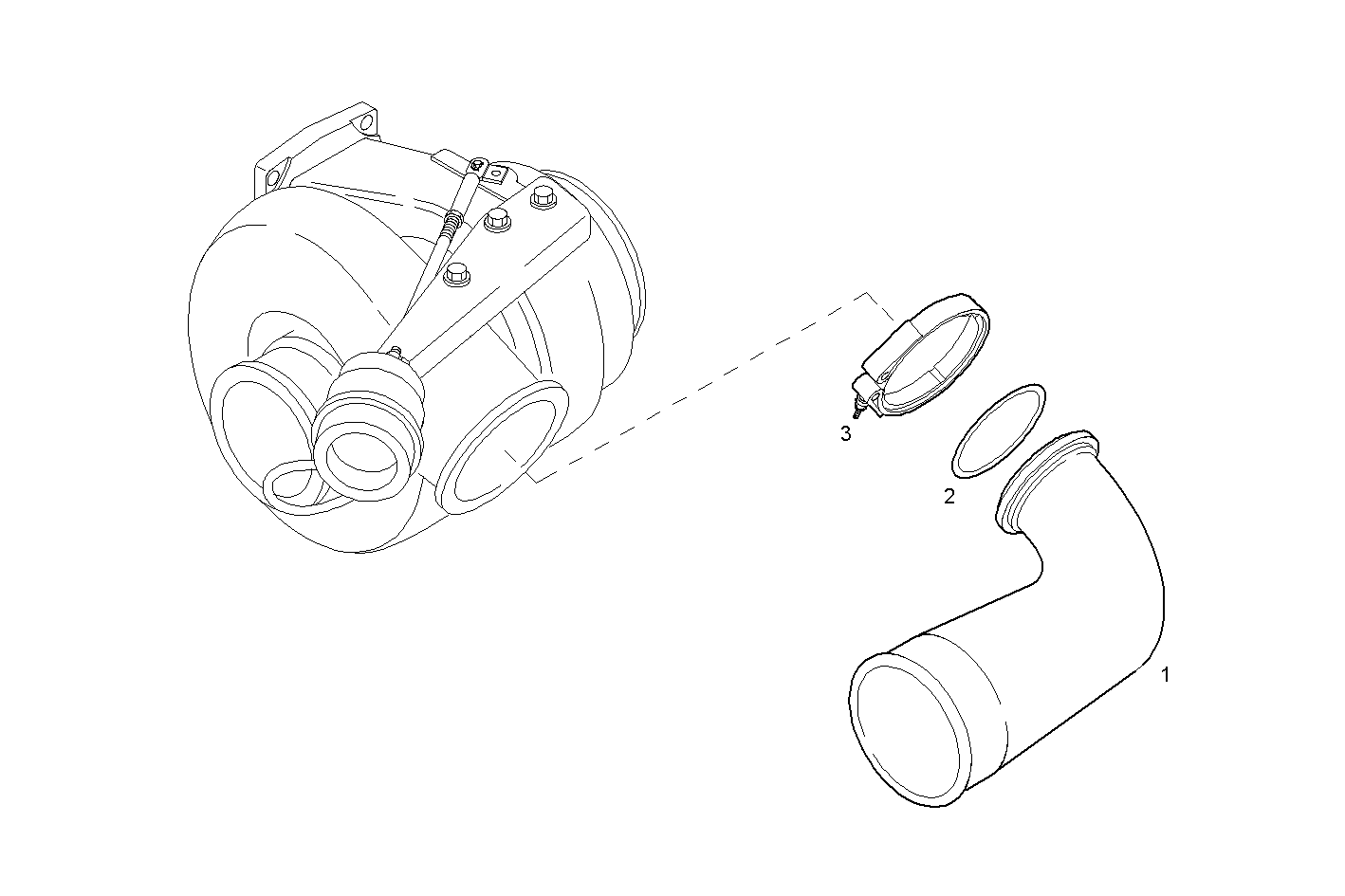

AIR LINES
Assembly ID: 2423.020
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504039838 | AIR PIPE/DUCT | 1 | ||
| 2 | 17290781 | O-RING | 1 | ||
| 3 | 500307975 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
