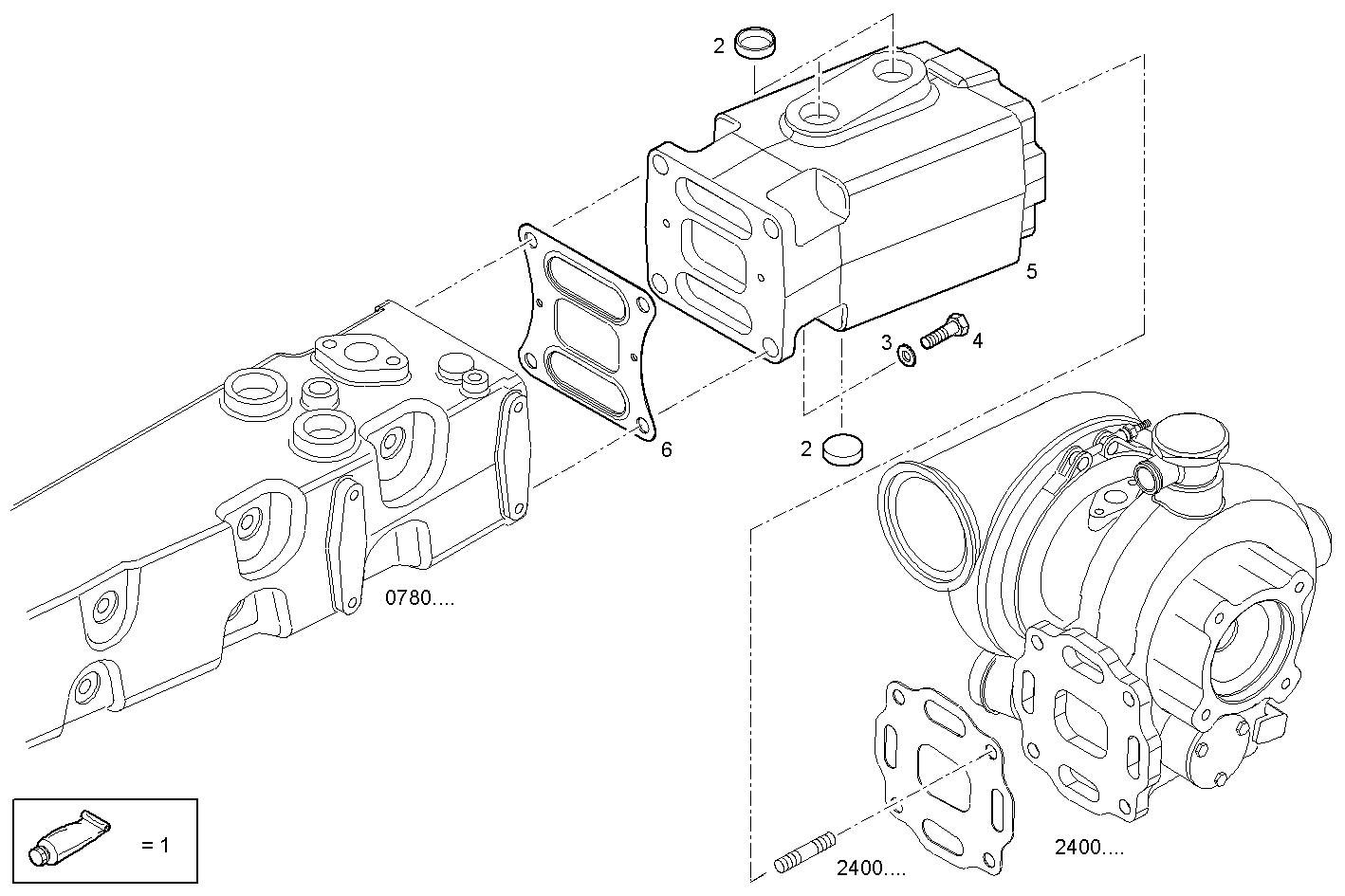

AIR LINES
Assembly ID: 2423.042
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2992695 | ADHESIVE/STICKER | 1 | ||
| 2 | 16990870 | LOCK PLUG | 3 | ||
| 3 | 17095224 | WASHER | 4 | ||
| 4 | 17458334 | HEXAGON BOLT | 4 | ||
| 5 | 8040157 | MARINE EXHAUST PIPE | 1 | ||
| 6 | 8032873 | GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENTM55.12 | CURSOR 8 | view |
