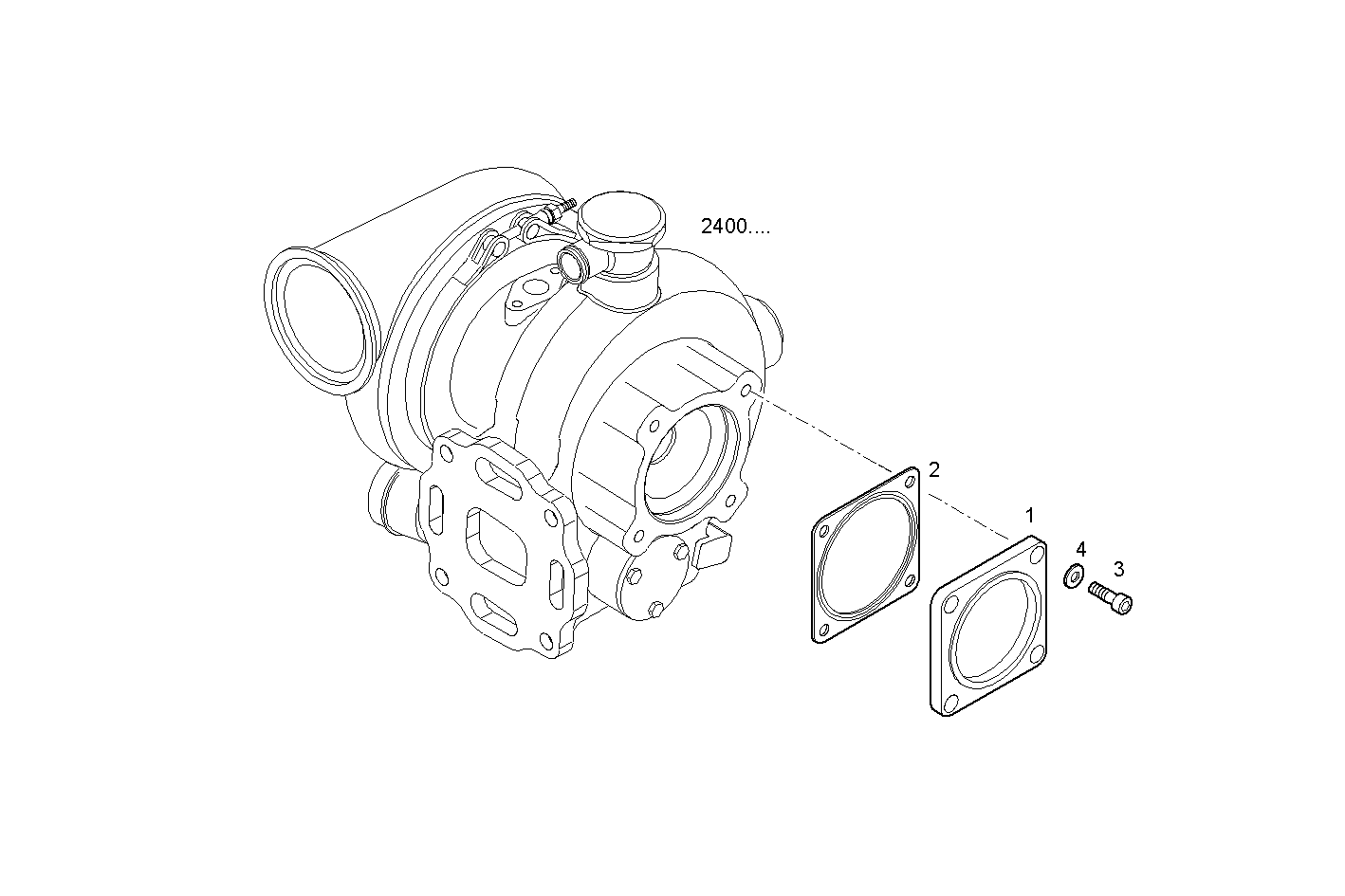

AIR LINES
Assembly ID: 2423.043
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8040169 | FLANGE | 1 | ||
| 2 | 8040168 | EXH. MANIFOLD GKT | 1 | ||
| 3 | 16690625 | CYLIND-HEAD SCREW | 4 | ||
| 4 | 17798274 | SPRING WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENTM55.12 | CURSOR 8 | view |
