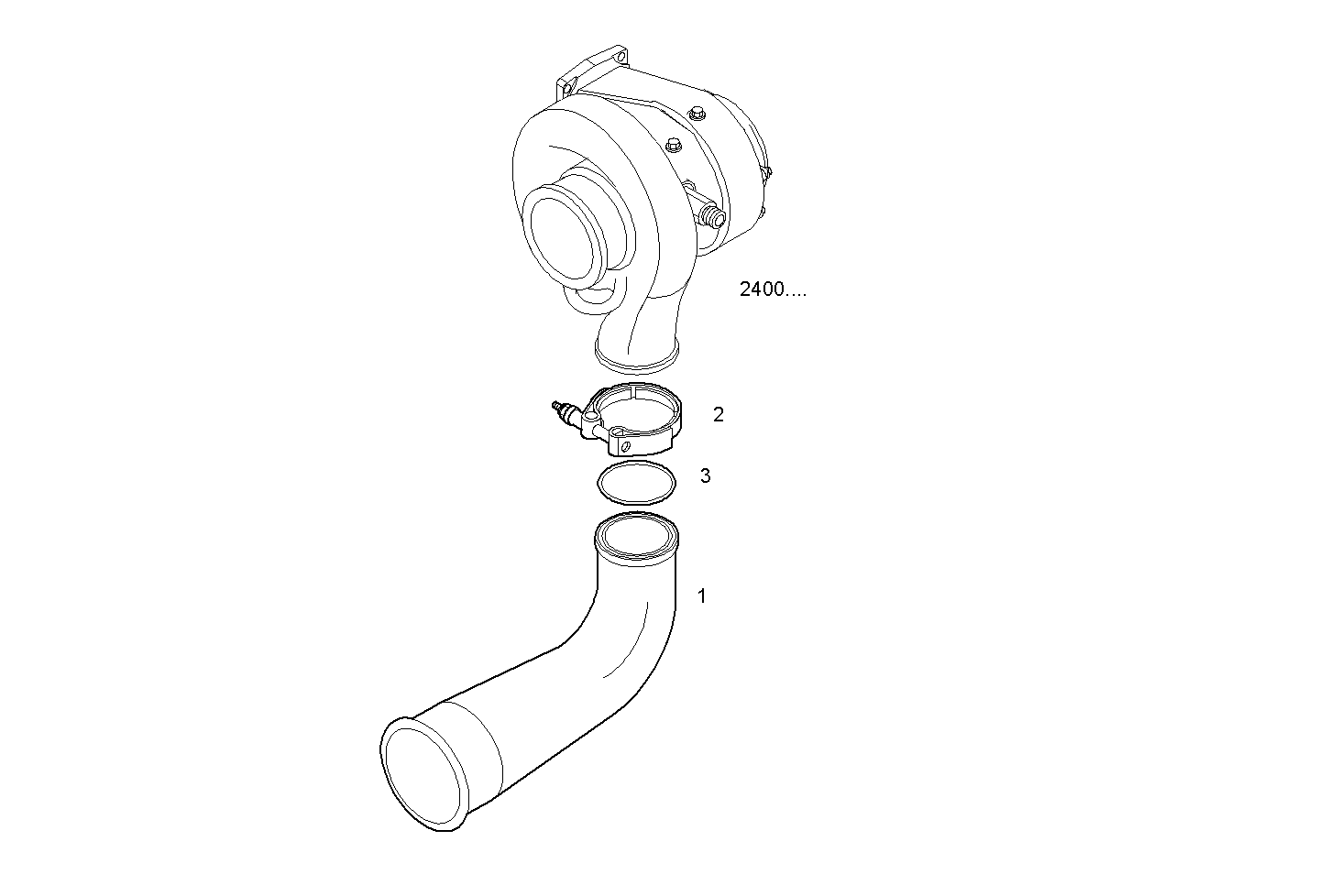

EXIT AIR PIPE
Assembly ID: 2430.048
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61318365 | AIR PIPE/DUCT | 1 | ||
| 2 | 4800661 | CLIP | 1 | ||
| 3 | 17284681 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX20.00A003 | CURSOR 9 - TIER 3 | view |
| C10ENTX20.00A008 | CURSOR 10 - TIER 3 | view |
