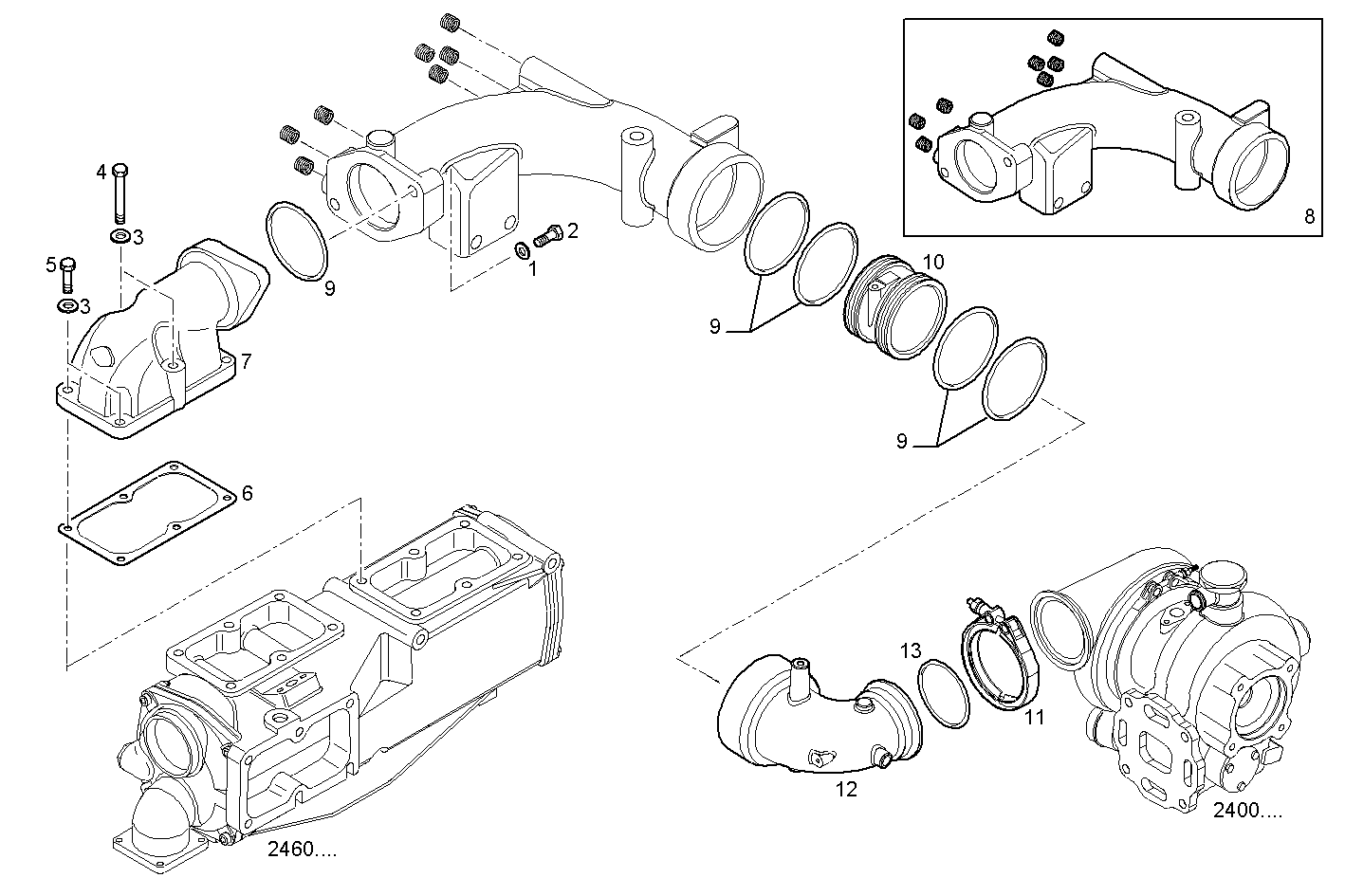

| 1 |
17090174
|
SPRING WASHER
|
|
2
|
|
| 2 |
16608125
|
HEXAGON BOLT
|
|
2
|
|
| 3 |
17089474
|
SPRING WASHER
|
|
6
|
|
| 4 |
16606324
|
HEXAGON BOLT
|
|
2
|
|
| 5 |
16605625
|
HEXAGON BOLT
|
|
4
|
|
|
16605635 |
HEXAGON BOLT |
|
4 |
|
| 6 |
504026624
|
FLAT ENGINE GASKET
|
|
1
|
|
|
504375264 |
FLAT ENGINE GASKET |
|
1 |
|
| 7 |
8030540
|
AIR HOOD
|
|
1
|
|
| 8 |
8030546
|
AIR PIPE/DUCT
|
|
1
|
|
| 9 |
17290581
|
O-RING
|
|
5
|
|
| 10 |
8025307
|
WATER PIPE
|
|
1
|
|
| 11 |
500339542
|
PIPE CLIP
|
|
1
|
|
|
5801680759 |
PIPE CLIP |
|
1 |
|
| 12 |
8040165
|
INTAKE ELBOW
|
|
1
|
|
| 13 |
17285581
|
O-RING
|
|
1
|
|
