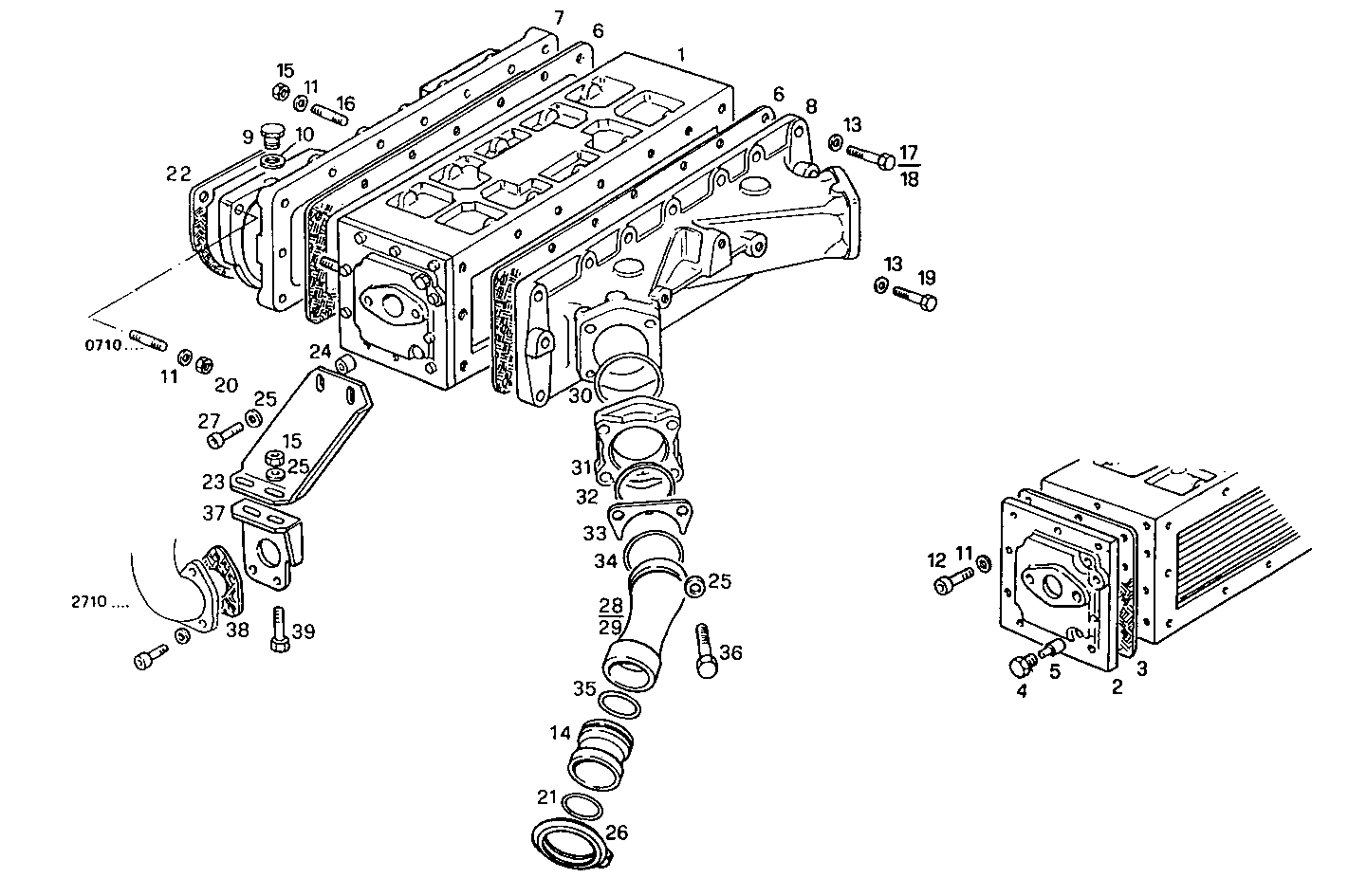

| 1 |
8022764
|
AIR/WATER HEAT EXCHANGER
|
|
1
|
|
| 2 |
8113017
|
HEAT EXCHANG.COVER
|
|
2
|
|
| 3 |
8112975
|
GASKET
|
|
2
|
|
| 4 |
8109742
|
PLUG
|
|
4
|
|
| 5 |
8109743
|
SACRIFICAL ANODE
|
|
4
|
|
| 6 |
8008906
|
GASKET
|
|
2
|
|
| 7 |
8105947
|
AIR HOOD
|
|
1
|
|
| 8 |
8016672
|
AIR HOOD
|
|
1
|
|
| 9 |
10304911
|
THREADED PLUG
|
|
2
|
|
| 10 |
98429280
|
SEAL GASKET
|
|
2
|
|
| 11 |
17095104
|
WASHER
|
|
18
|
|
|
17095125 |
WASHER |
|
18 |
|
| 12 |
11306921
|
SCREW
|
|
12
|
|
| 13 |
17094914
|
WASHER
|
|
32
|
|
| 14 |
8006230
|
CONNECTOR SLEEVE
|
|
2
|
|
| 15 |
17037931
|
HEXAGON NUT
|
|
4
|
|
| 16 |
16729324
|
STUD
|
|
2
|
|
| 17 |
16605624
|
HEXAGON BOLT
|
|
8
|
|
|
16605635 |
HEXAGON BOLT |
|
8 |
|
| 18 |
16606024
|
SCREW
|
|
2
|
|
| 19 |
16605734
|
HEXAGON BOLT
|
|
20
|
|
| 20 |
17038221
|
HEXAGON NUT
|
|
6
|
|
|
17038225 |
HEXAGON NUT |
|
6 |
|
| 21 |
17284681
|
O-RING
|
|
2
|
|
| 22 |
4786886
|
GASKET
|
|
2
|
|
| 23 |
8112533
|
RETAINER
|
|
1
|
|
| 24 |
8109399
|
SPACING BAR
|
|
2
|
|
| 25 |
17089474
|
SPRING WASHER
|
|
12
|
|
| 26 |
4800661
|
CLIP
|
|
2
|
|
| 27 |
16691024
|
CYLIND-HEAD SCREW
|
|
2
|
|
| 28 |
8006232
|
SPACING BAR
|
|
1
|
|
| 29 |
8006231
|
SPACING BAR
|
|
1
|
|
| 30 |
17291281
|
O-RING
|
|
2
|
|
| 31 |
8105950
|
FLANGE
|
|
2
|
|
| 32 |
8105951
|
CIRCLIP
|
|
2
|
|
| 33 |
8105952
|
PLATE
|
|
2
|
|
| 34 |
14465381
|
O-RING
|
|
2
|
|
|
17290781 |
O-RING |
|
2 |
|
| 35 |
14464881
|
WASHER
|
|
2
|
|
|
17290281 |
WASHER |
|
2 |
|
| 36 |
16044021
|
HEXAGON BOLT
|
|
8
|
|
|
16605934 |
HEXAGON BOLT |
|
8 |
|
| 37 |
8112532
|
RETAINER
|
|
1
|
|
| 38 |
4863490
|
FLAT ENGINE GASKET
|
|
2
|
|
| 39 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
