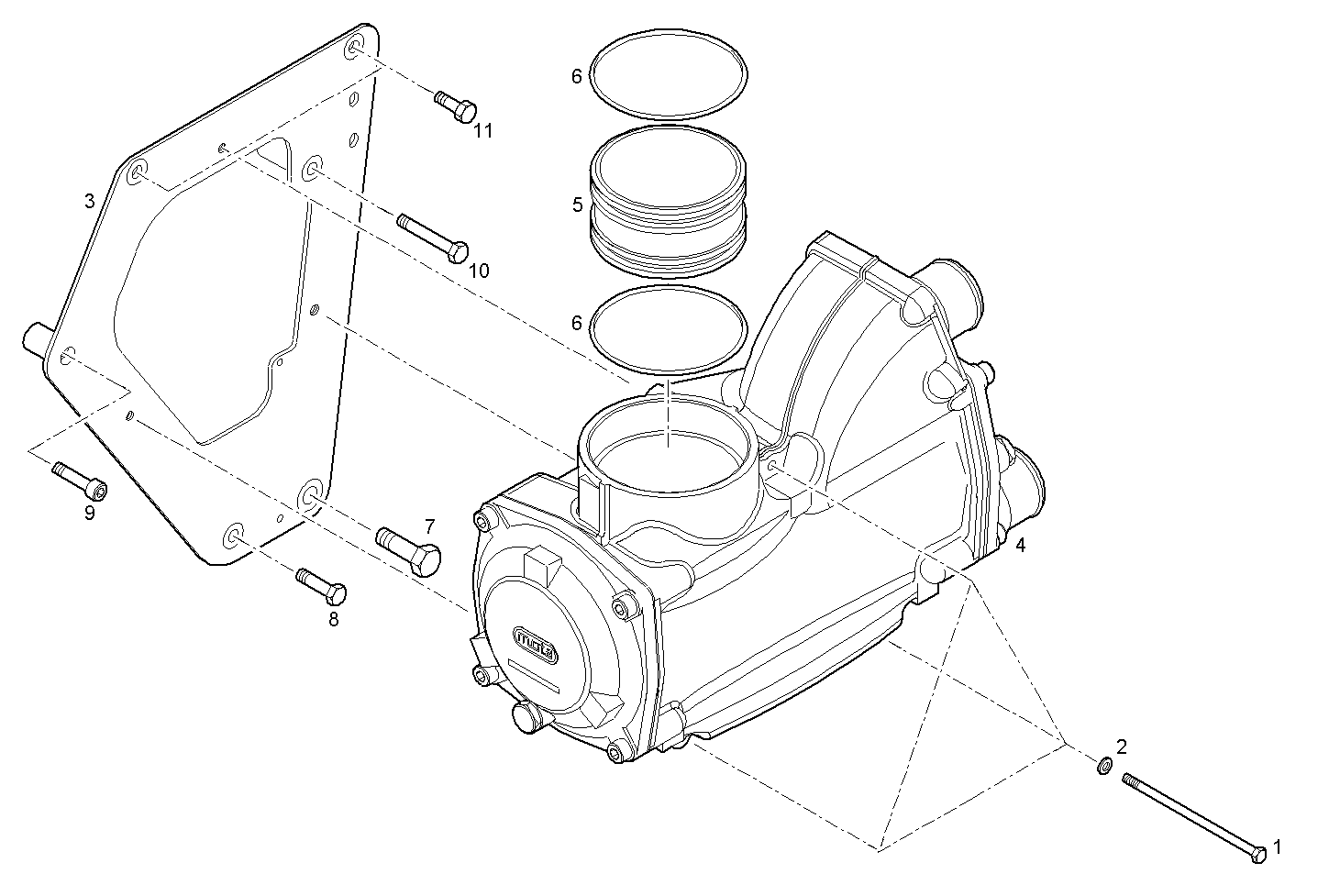

AIR - WATER HEAT EXCHANGER
Assembly ID: 2460.052
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16607024 | HEXAGON BOLT | 3 | ||
| 2 | 17094914 | WASHER | 3 | ||
| 3 | 8049694 | SUPPORT | 1 | ||
| 4 | 8046707 | AIR/WATER HEAT EXCHANGER | 1 | ||
| 5 | 8031755 | WATER PIPE | 1 | ||
| 6 | 17297081 | O-RING | 2 | ||
| 7 | 16678135 | HEXAGON BOLT | 1 | ||
| 8 | 16586725 | HEXAGON BOLT | 1 | ||
| 9 | 16691224 | CYLIND-HEAD SCREW | 1 | ||
| 10 | 16592525 | HEXAGON BOLT | 1 | ||
| 11 | 16673735 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTM28.12 | NEF 6 mechanic. | view |
