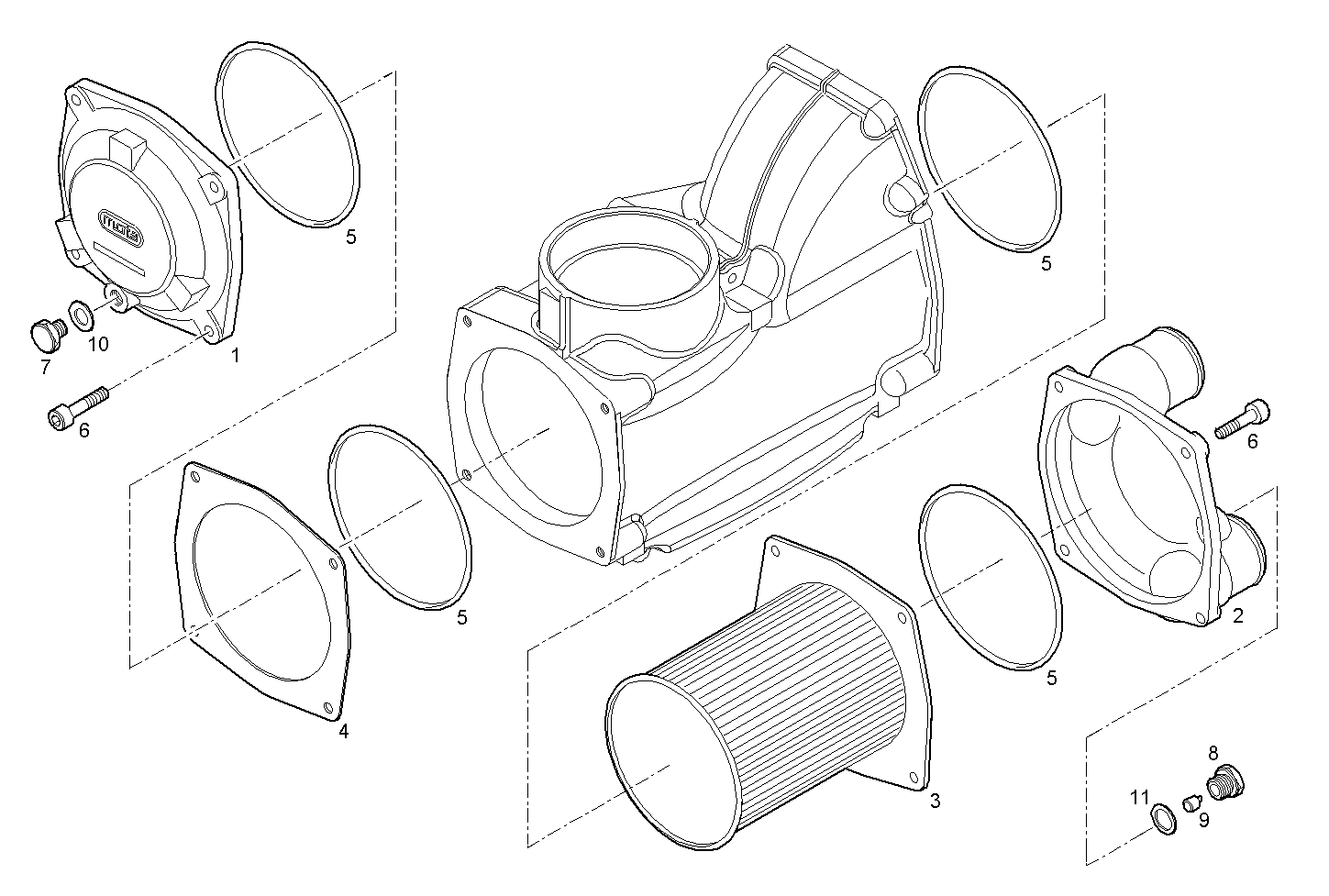

AIR - WATER HEAT EXCHANGER (COMPONENTS)
Assembly ID: 2461.007
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8032516 | COVER | 1 | ||
| 2 | 8050199 | COVER | 1 | ||
| 3 | 8050148 | TUBE STACK | 1 | ||
| 4 | 8032519 | SPACING BAR | 1 | ||
| 5 | 8032518 | O-RING | 4 | ||
| 6 | 16690924 | CYLIND-HEAD SCREW | 8 | ||
| 7 | 16992340 | THREADED PLUG | 1 | ||
| 8 | 8093596 | PLUG | 1 | ||
| 9 | 8093597 | SACRIFICAL ANODE | 1 | ||
| 10 | 4858608 | SEAL GASKET | 1 | ||
| 11 | 4858610 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTM28.31 | NEF 6 mechanic. | view |
| N67MNTM28.12 | NEF 6 mechanic. | view |
