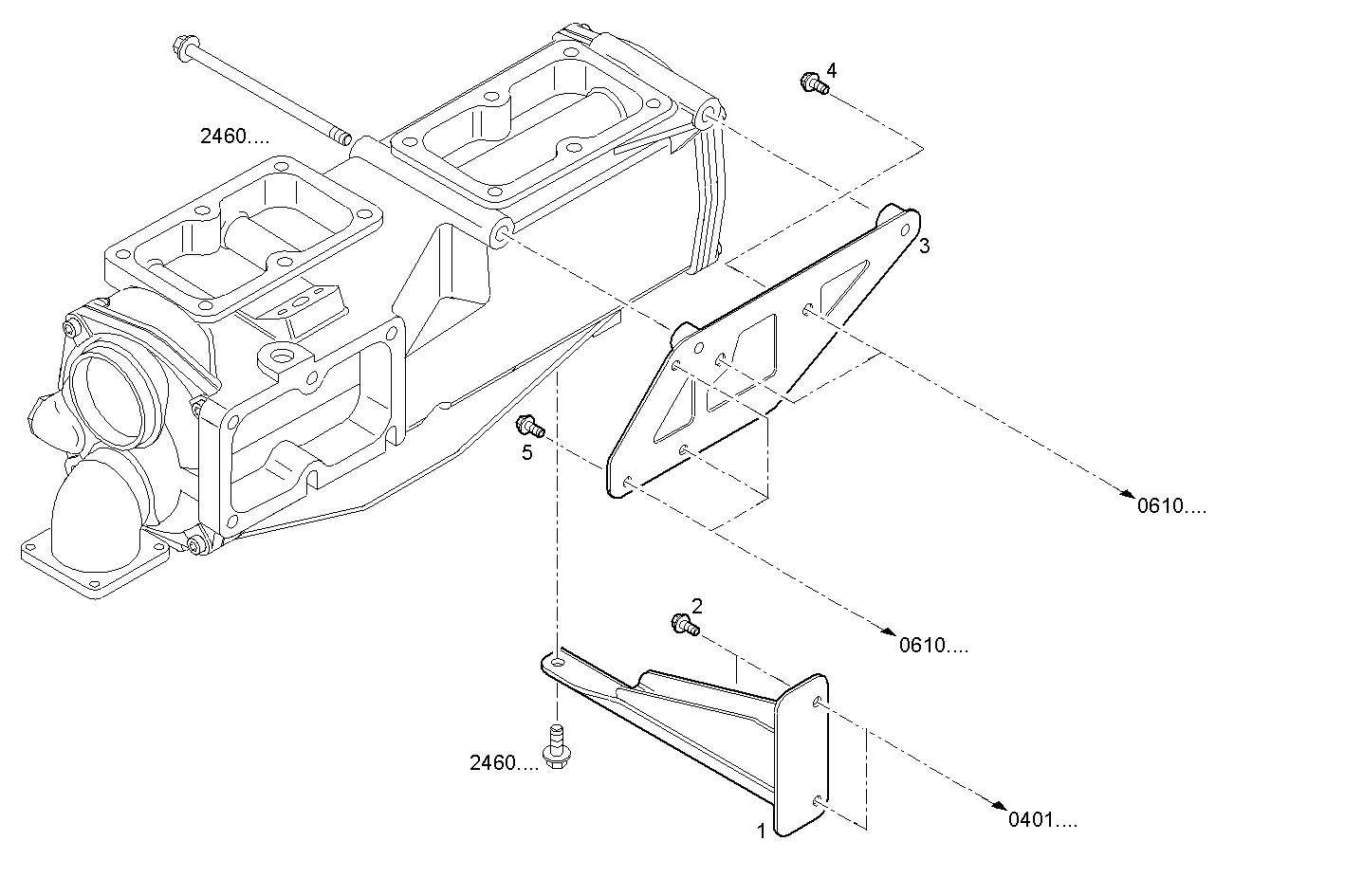

HEAT EXCHANGER SUPPORT
Assembly ID: 2466.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8038264 | RETAINER | 1 | ||
| 2 | 16600224 | HEXAGON BOLT | 2 | ||
| 3 | 8037508 | RETAINER | 1 | ||
| 4 | 18139424 | HEXAGON BOLT | 2 | ||
| 5 | 16600224 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| C13ENTM50.10 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
| C13ENTM50.12 | CURSOR 13 | view |
