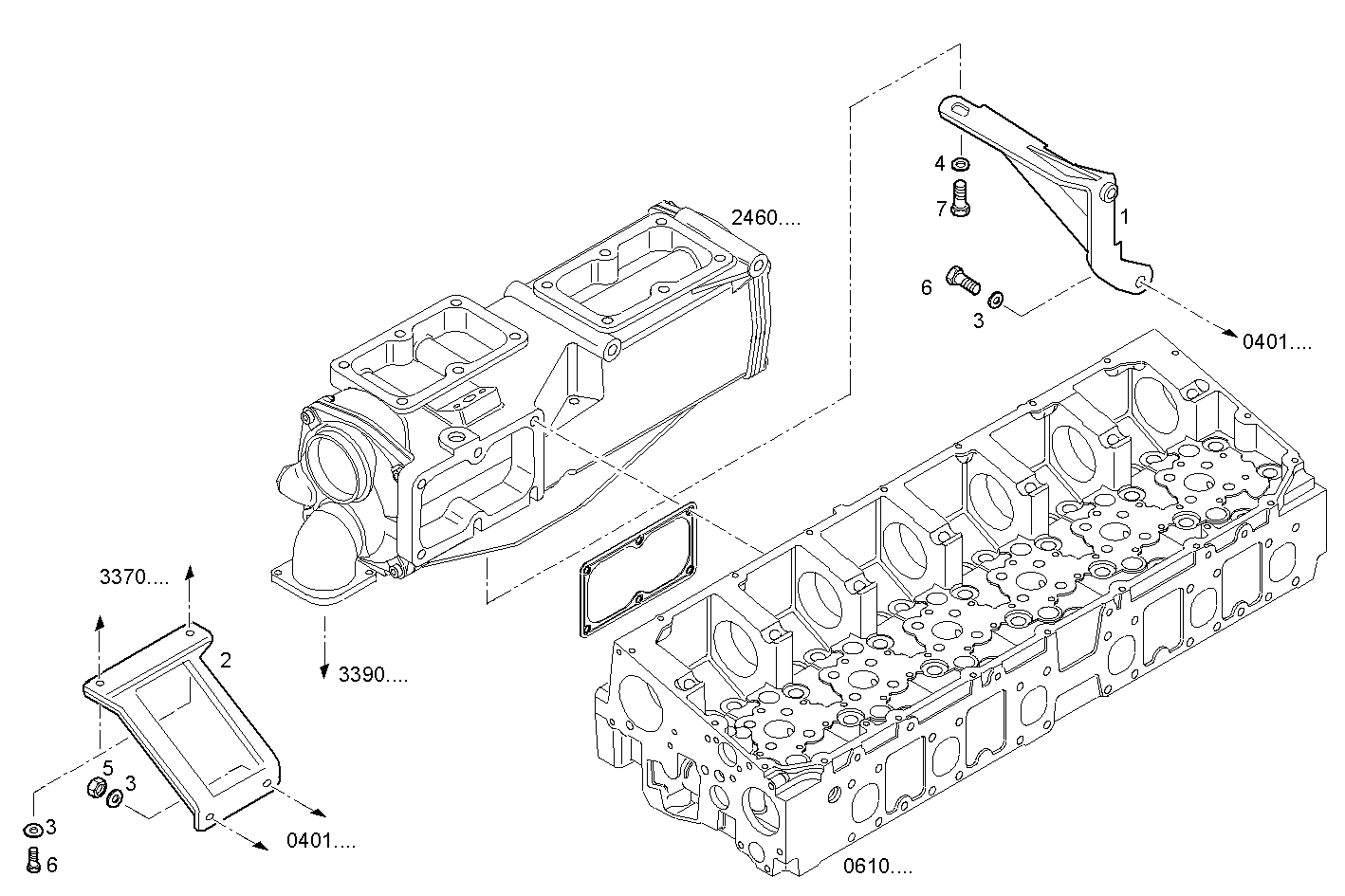

HEAT EXCHANGER SUPPORT
Assembly ID: 2466.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8031103 | RETAINER | 1 | ||
| 2 | 8029420 | RETAINER | 1 | ||
| 3 | 17090174 | SPRING WASHER | 5 | ||
| 4 | 17089474 | SPRING WASHER | 2 | ||
| 5 | 17038131 | HEXAGON NUT | 2 | ||
| 6 | 16607524 | HEXAGON BOLT | 3 | ||
| 7 | 16605524 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENTM55.12 | CURSOR 8 | view |
