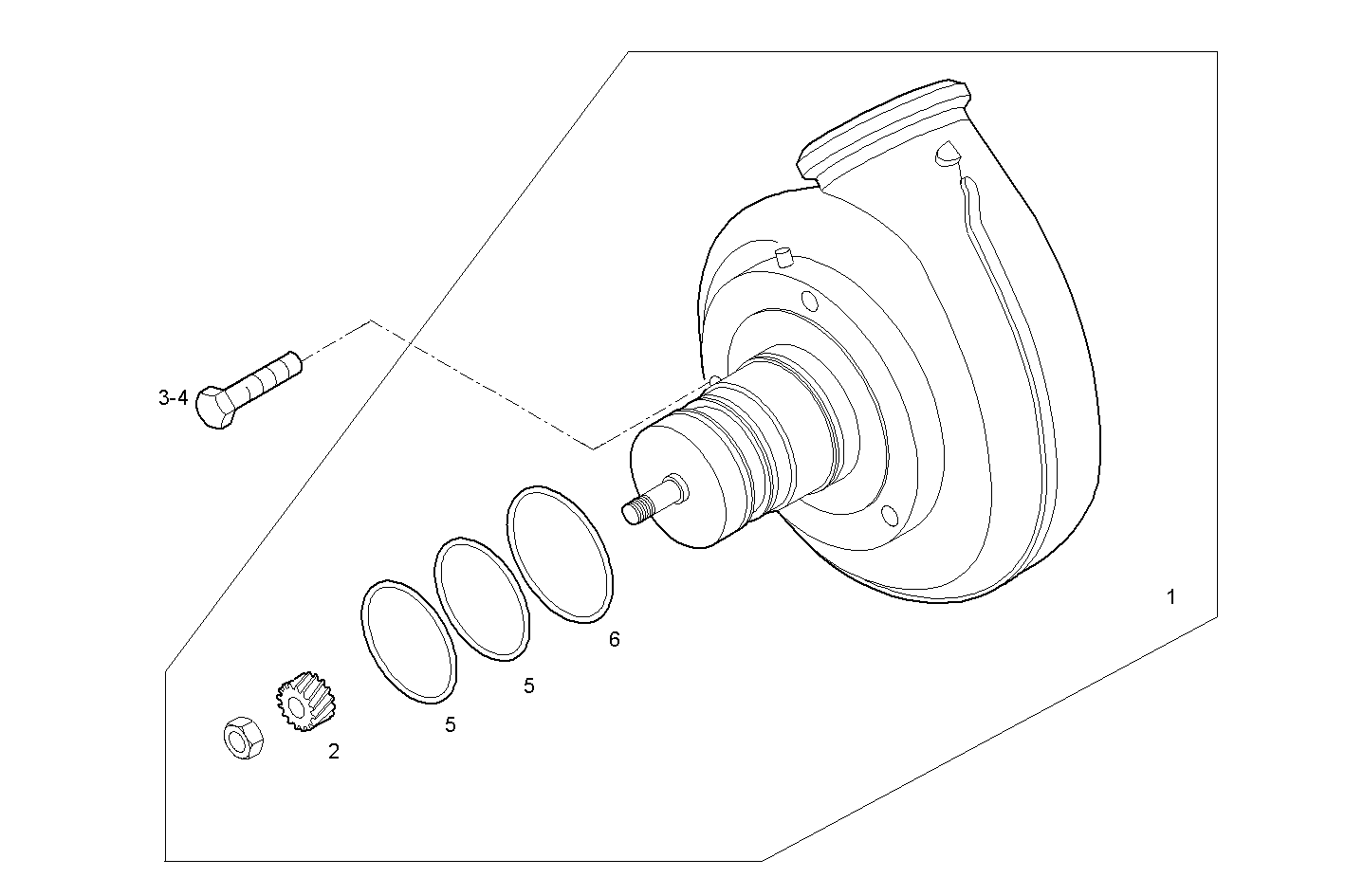

POWER TURBINE - TURBOCOMPOUND
Assembly ID: 2504.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504271280 | TURBOCHARGER | 1 | ||
| 2 | 504170759 | GEAR | 1 | ||
| 3 | 16587625 | HEXAGON BOLT | 2 | ||
| 4 | 16676834 | HEXAGON BOLT | 1 | ||
| 5 | 17290381 | O-RING | 2 | ||
| 6 | 17290781 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
