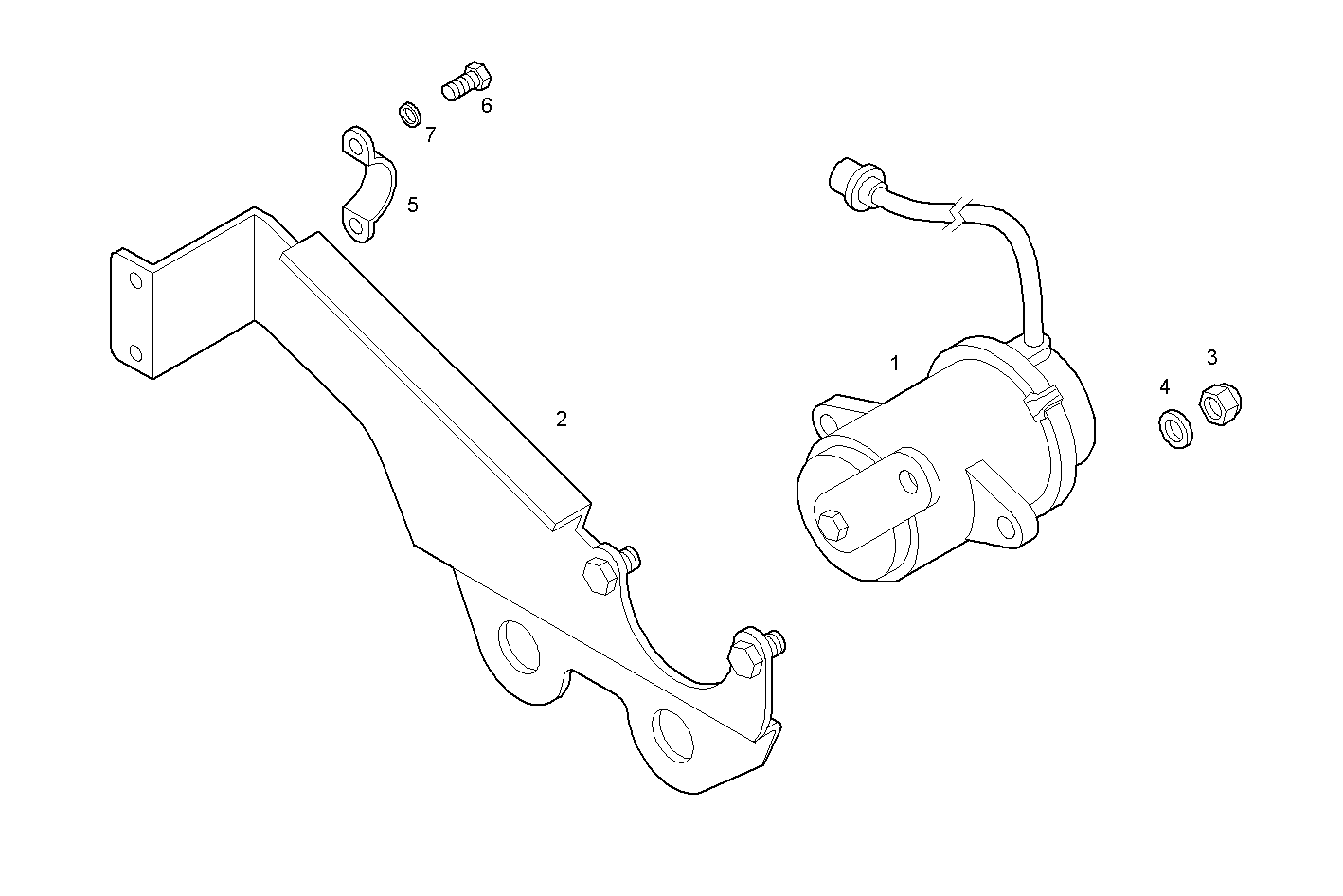

ELECTRONIC ACCELERATOR
Assembly ID: 2650.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8030707 | POTENTIOMETER | 1 | ||
| 2 | 8036696 | RETAINER | 1 | ||
| 3 | 17787270 | HEXAGON NUT | 2 | ||
| 4 | 17088474 | WASHER | 2 | ||
| 5 | 8033783 | RETAINER | 1 | ||
| 6 | 16601924 | HEXAGON BOLT | 2 | ||
| 7 | 17800274 | SPRING WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
| C78ENTM55.12 | CURSOR 8 | view |
