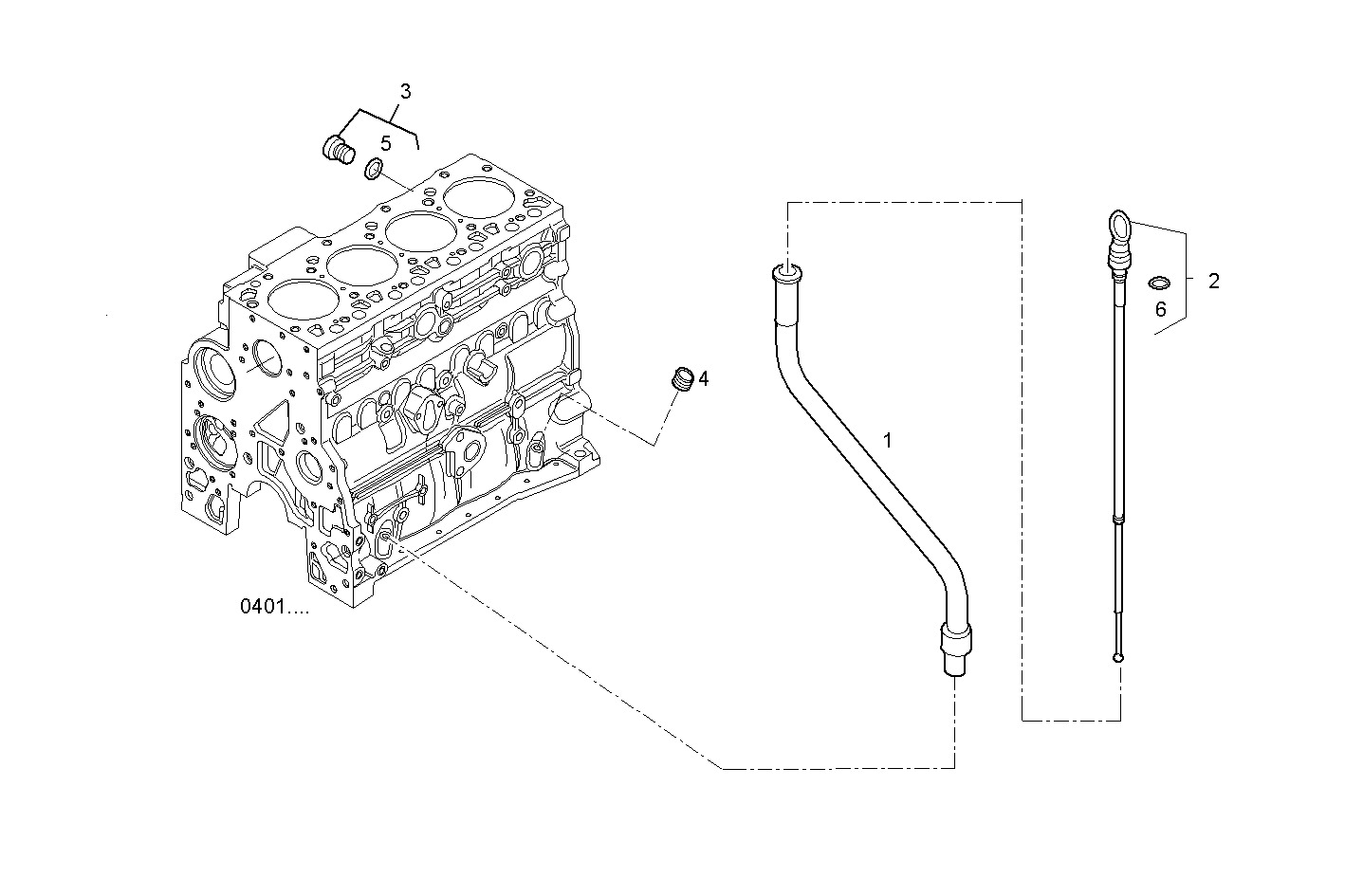

OIL DIPSTICK & FILLER PIPE
Assembly ID: 2700.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504220960 | OIL LEVEL TUBE | 1 | ||
| 2 | 504220957 | OIL DIPSTICK | 1 | ||
| 3 | 4897330 | PLUG | 2 | ||
| 4 | 4899036 | PLUG | 1 | ||
| 5 | 4895610 | O-RING | 2 | ||
| 6 | 4898502 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE9454C*J606 | NEF 4 mechanic. - TIER 3 | view |
| F4GE0454A*D603 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0454A*D613 | NEF 4 mechanic. - TIER 2 | view |
| F4GE9454C*J605 | NEF 4 mechanic. - TIER 3 | view |
| F4GE0454A*D615 | NEF 4 mechanic. - TIER 2 | view |
| F4GE9454C*J609 | NEF 4 mechanic. - TIER 3 | view |
