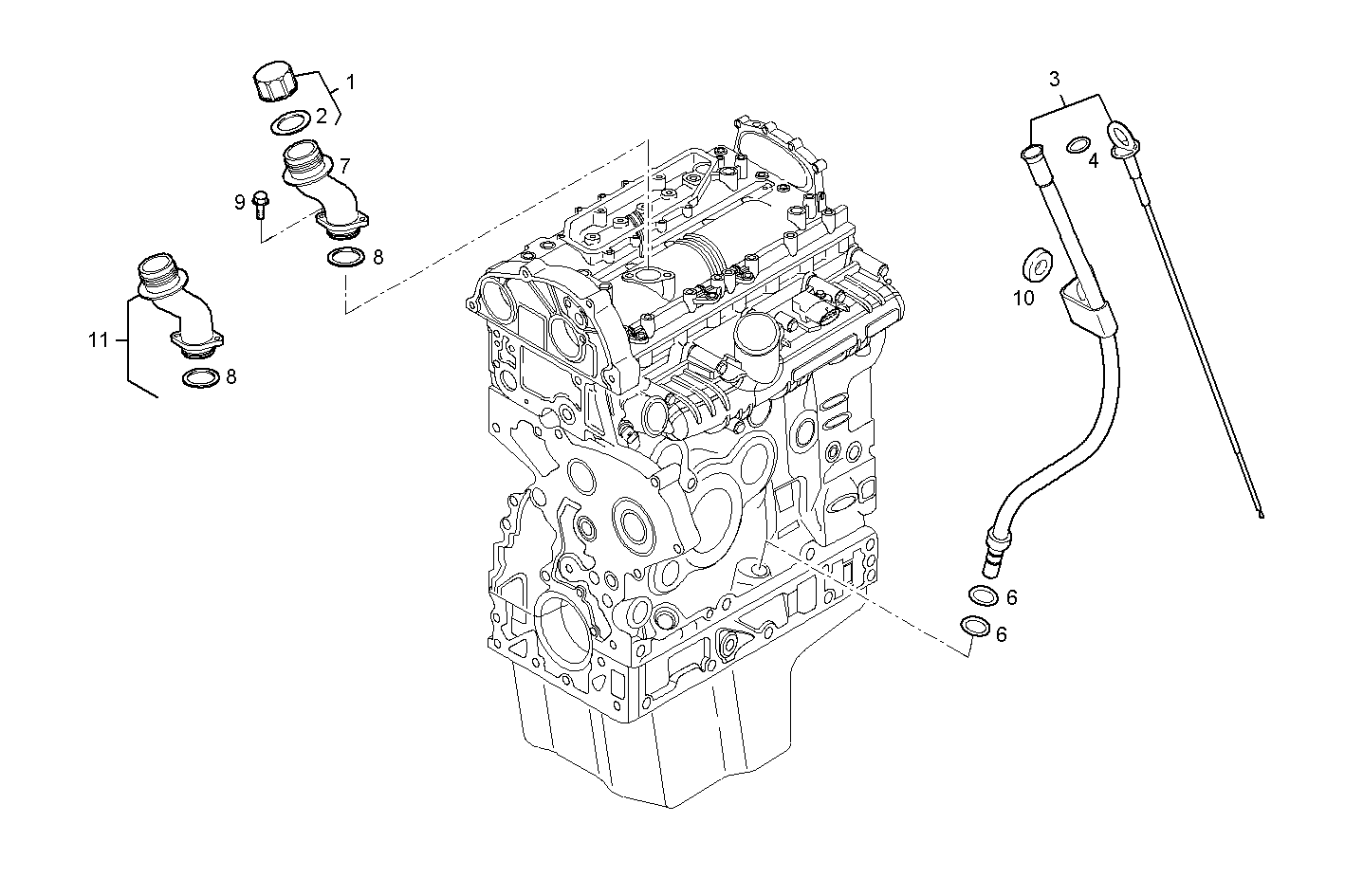

OIL DIPSTICK & FILLER PIPE
Assembly ID: 2700.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG | 1 | ||
| 2 | 17295480 | O-RING | 1 | ||
| 3 | 504032705 | OIL DIPSTICK | 1 | ||
| 4 | 504027969 | O-RING | 1 | ||
| 6 | 17277981 | O-RING | 2 | ||
| 7 | 504026777 | OIL FILLER PIPE | 1 | ||
| 8 | 17283081 | O-RING | 1 | ||
| 9 | 18137624 | HEXAGON BOLT | 2 | ||
| 10 | 98410538 | SPACER | 1 | ||
| 11 | 504079882 | OIL FILLER PIPE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
