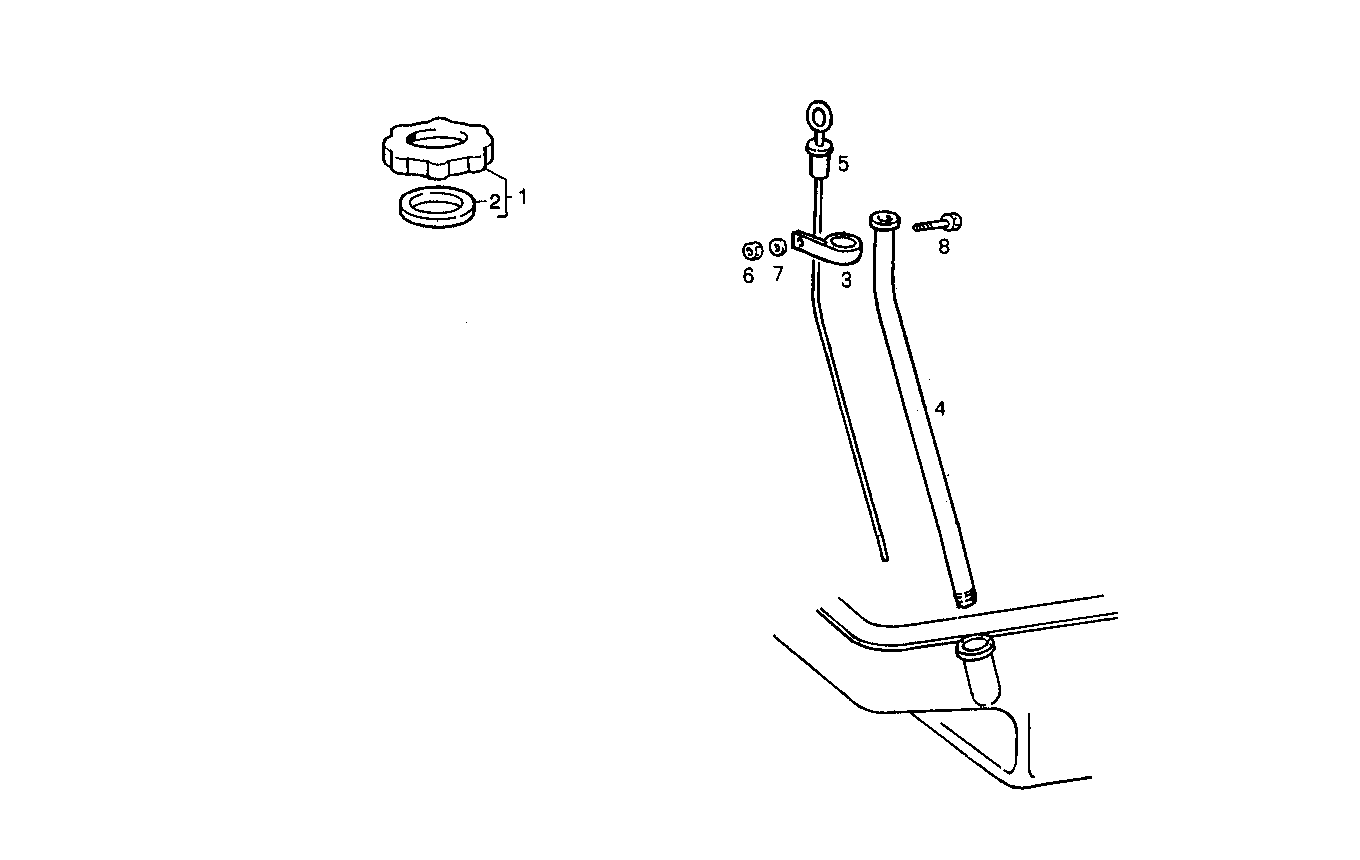

OIL DIPSTICK
Assembly ID: 2710.011
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4232606 | OIL FILLER PLUG | 1 | ||
| 2 | 98418978 | GASKET | 1 | ||
| 3 | 4930515 | CLIP | 1 | ||
| 4 | 4930514 | ROD GUIDE | 1 | ||
| 5 | 8108074 | OIL DIPSTICK | 1 | ||
| 6 | 17037821 | HEXAGON NUT | 1 | ||
| 7 | 17088474 | WASHER | 1 | ||
| 8 | 16603624 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8041M09.01 | 8041M09 | view |
| 8041M09.40 | 8041M09 | view |
| 8041M09.42 | 8041M09 | view |
| 8041M09.02 | 8041M09 | view |
