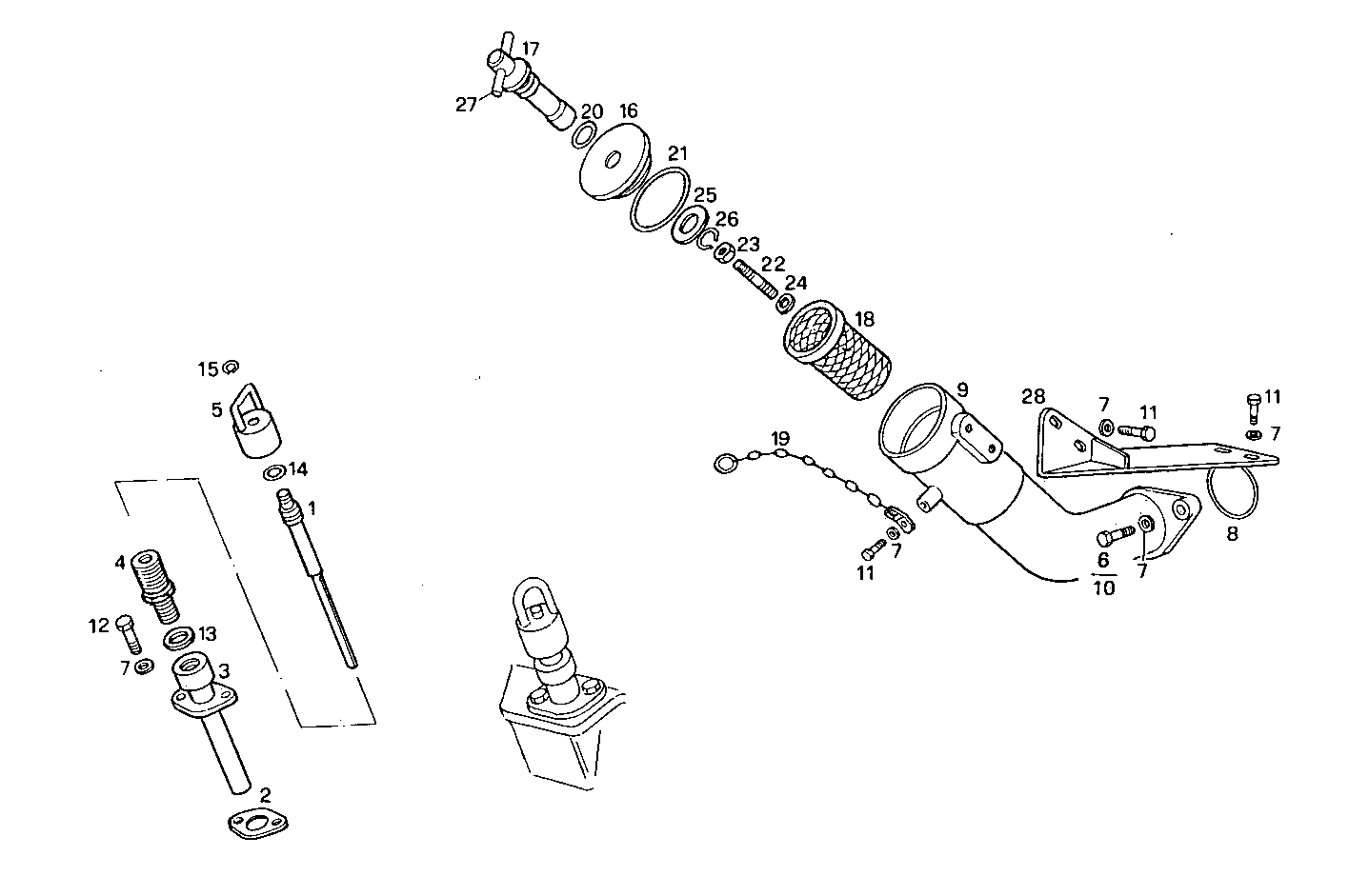

| 1 |
8016565
|
OIL DIPSTICK
|
|
1
|
|
| 2 |
4863361
|
GASKET
|
|
1
|
|
| 3 |
8016563
|
FLANGE
|
|
1
|
|
| 4 |
8016564
|
THREADED UNION
|
|
1
|
|
| 5 |
4882777
|
PLUG
|
|
1
|
|
| 6 |
16605734
|
HEXAGON BOLT
|
|
1
|
|
| 7 |
17089474
|
SPRING WASHER
|
|
7
|
|
| 8 |
17289981
|
O-RING
|
|
1
|
|
| 9 |
8017071
|
OIL FILLER PIPE
|
|
1
|
|
| 10 |
16606924
|
SCREW
|
|
1
|
|
|
16045424 |
SCREW |
|
1 |
|
| 11 |
16605424
|
SCREW
|
|
5
|
|
| 12 |
16605524
|
HEXAGON BOLT
|
|
2
|
|
| 13 |
98429280
|
SEAL GASKET
|
|
1
|
|
| 14 |
4854896
|
O-RING
|
|
1
|
|
| 15 |
16865076
|
CIRCLIP
|
|
1
|
|
| 16 |
4882506
|
COVER
|
|
1
|
|
| 17 |
4882529
|
ROD
|
|
1
|
|
| 18 |
4882530
|
STRAINER
|
|
1
|
|
| 19 |
4882591
|
CHAIN
|
|
1
|
|
| 20 |
4854897
|
O-RING
|
|
1
|
|
| 21 |
17296081
|
O-RING
|
|
1
|
|
| 22 |
16747024
|
STUD
|
|
1
|
|
| 23 |
17037931
|
HEXAGON NUT
|
|
1
|
|
| 24 |
17094914
|
WASHER
|
|
1
|
|
| 25 |
17095704
|
WASHER
|
|
1
|
|
| 26 |
16865776
|
CIRCLIP
|
|
1
|
|
|
16865773 |
CIRCLIP |
|
1 |
|
| 27 |
17239320
|
PIN
|
|
1
|
|
| 28 |
8017082
|
RETAINER
|
|
1
|
|
