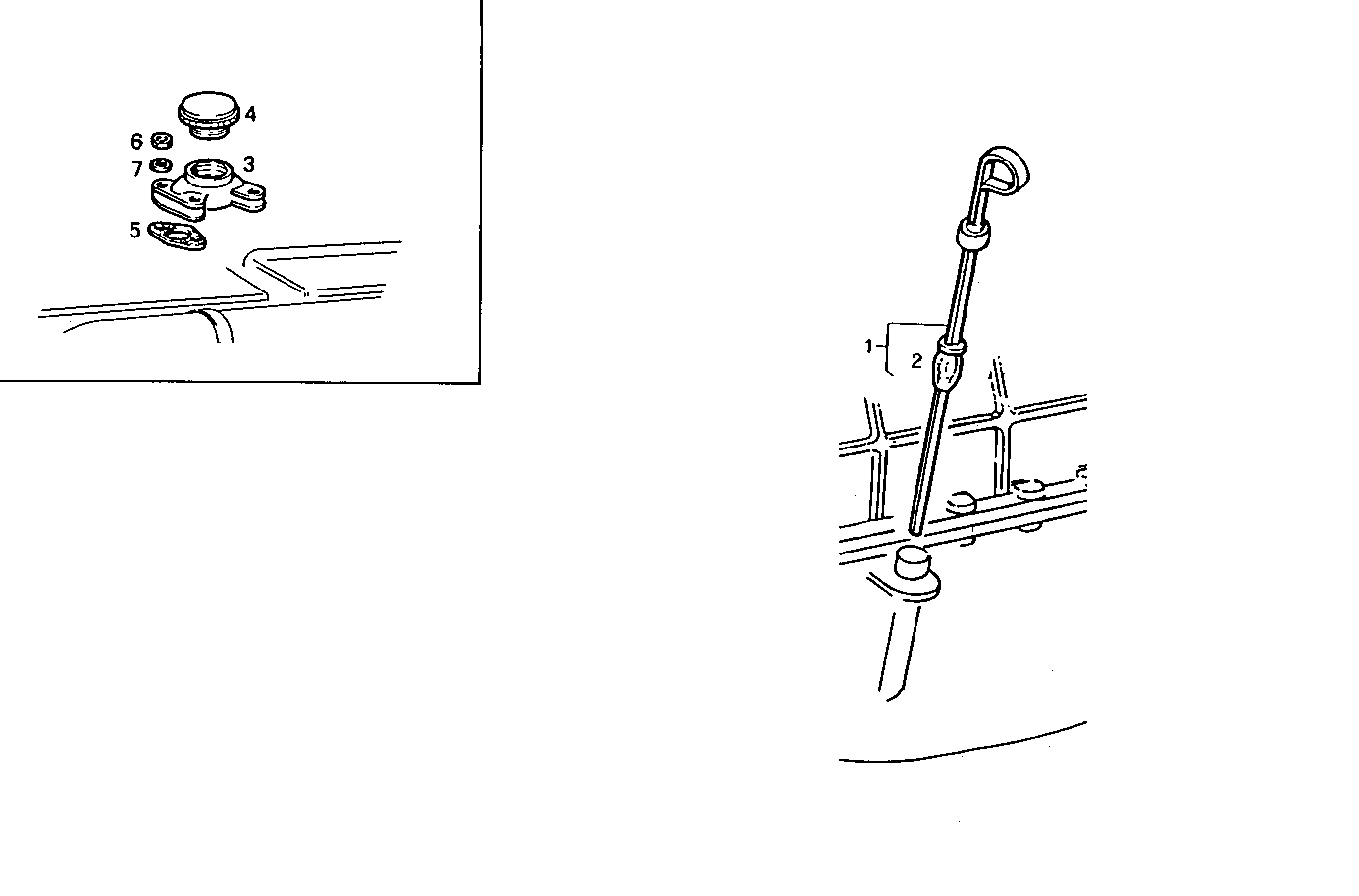

OIL DIPSTICK
Assembly ID: 2710.059
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4934486 | OIL DIPSTICK | 1 | ||
| 2 | 762035 | RUBBER PLUG | 1 | ||
| 3 | 4624360 | FILLER NECK | 1 | ||
| 4 | 4644097 | OIL FILLER PLUG | 1 | ||
| 5 | 4863952 | FLAT ENGINE GASKET | 2 | ||
| 6 | 17037931 | HEXAGON NUT | 4 | ||
| 7 | 17089874 | WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8210M22.10A64S | GE8210M22 | view |
| 8210i03.00 | 8210i03 | view |
| 8210M22.10 | 8210M22 | view |
| 8210M22.30 | 8210M22 | view |
| 8210M22.30A003 | 8210M22 | view |
| 8210M22.30A001 | 8210M22 | view |
| PU8210i03.00A103 | PU8210i03 | view |
| 8210i03.00A500 | 8210i03 | view |
| 8210i03.00A520 | 8210i03 | view |
| 8210i03.00A550 | 8210i03 | view |
| 8210i03.00A580 | 8210i03 | view |
| PU8210I03.00A106 | PU8210i03 | view |
| PU8210I03.00A102 | PU8210i03 | view |
| PU8210I03.00A100 | PU8210i03 | view |
