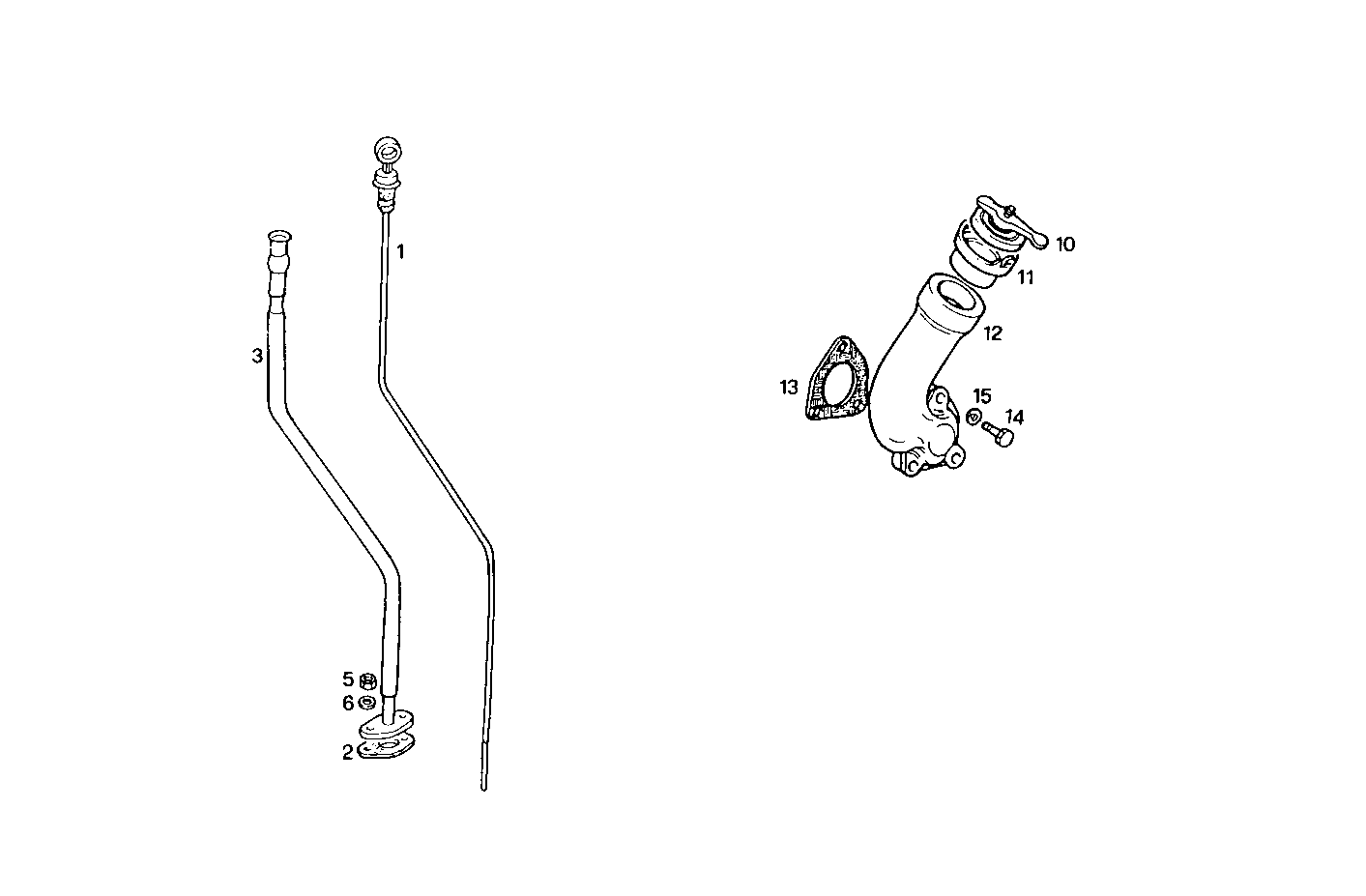

OIL DIPSTICK
Assembly ID: 2710.072
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8006839 | OIL DIPSTICK | 1 | ||
| 2 | 4863361 | GASKET | 1 | ||
| 3 | 8006838 | ROD GUIDE | 1 | ||
| 5 | 17037931 | HEXAGON NUT | 2 | ||
| 6 | 17089474 | SPRING WASHER | 2 | ||
| 10 | 61657884 | OIL FILLER PLUG | 1 | ||
| 11 | 61228426 | PLUG | 1 | ||
| 12 | 4687394 | FILLER NECK | 1 | ||
| 13 | 4863490 | FLAT ENGINE GASKET | 1 | ||
| 14 | 16605734 | HEXAGON BOLT | 3 | ||
| 15 | 17094914 | WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8281SRi40.00 | 8281SRi40 | view |
| 8281SRM50.11 | 8281SRM50 | view |
| 8281SRM50.31 | 8281SRM50 | view |
| 8281SRM70.12 | 8281SRM70 | view |
| 8281SRM50.12 | 8281SRM50 | view |
| 8281SRM50.32 | 8281SRM50 | view |
| 8281SRM50.31A002 | 8281SRM50 | view |
