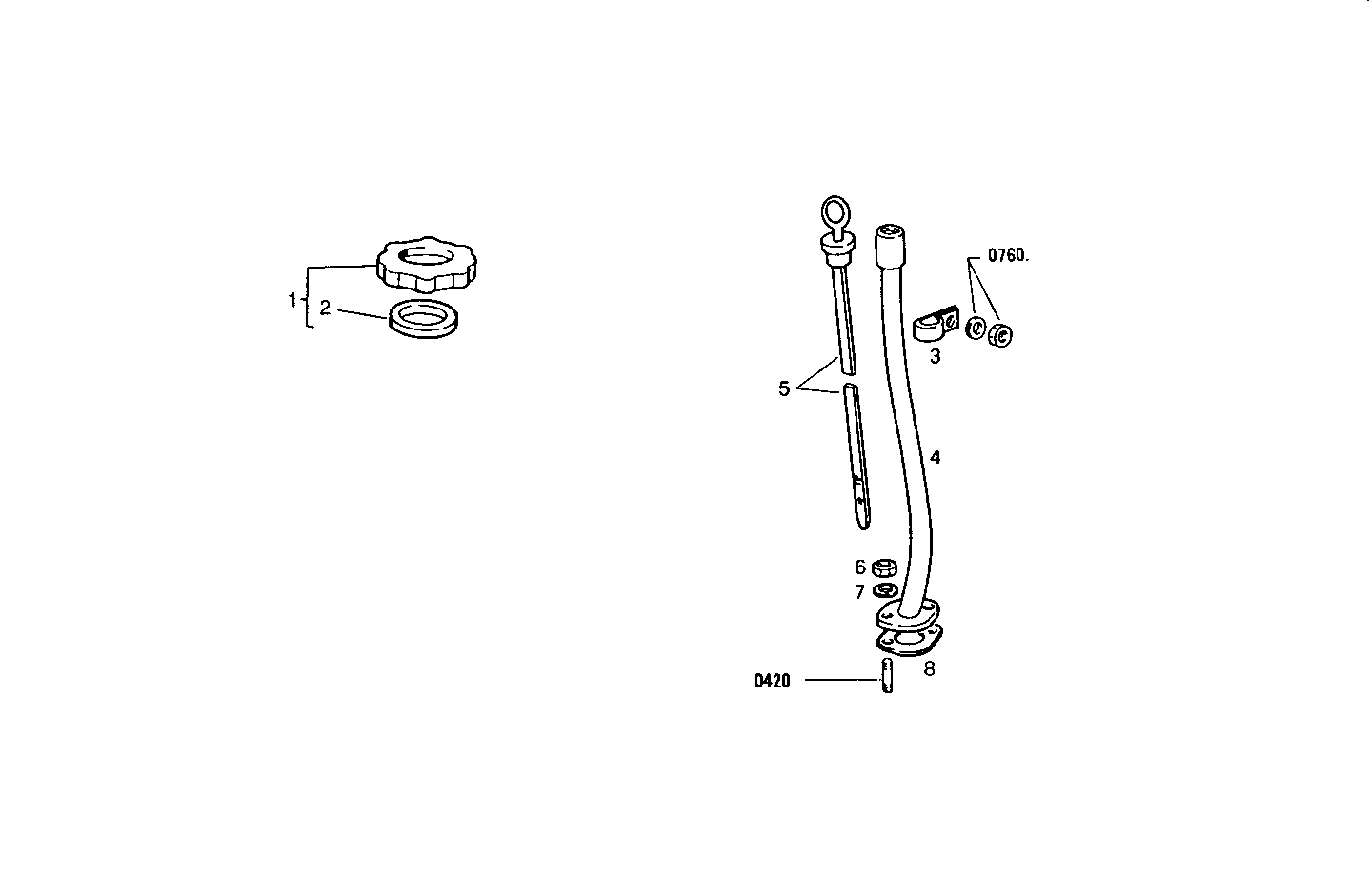

OIL DIPSTICK
Assembly ID: 2710.088
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4232606 | OIL FILLER PLUG | 1 | ||
| 2 | 98418978 | GASKET | 1 | ||
| 3 | 8100228 | CLIP | 1 | ||
| 4 | 8100227 | ROD GUIDE | 1 | ||
| 5 | 8100162 | OIL DIPSTICK | 1 | ||
| 6 | 17037931 | HEXAGON NUT | 2 | ||
| 7 | 17089474 | SPRING WASHER | 2 | ||
| 8 | 4599562 | FLAT ENGINE GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM27.10 | 8061SRM27 | view |
| 8061SRM24.00 | 8061SRM24 | view |
| 8061SRM24.10 | 8061SRM24 | view |
