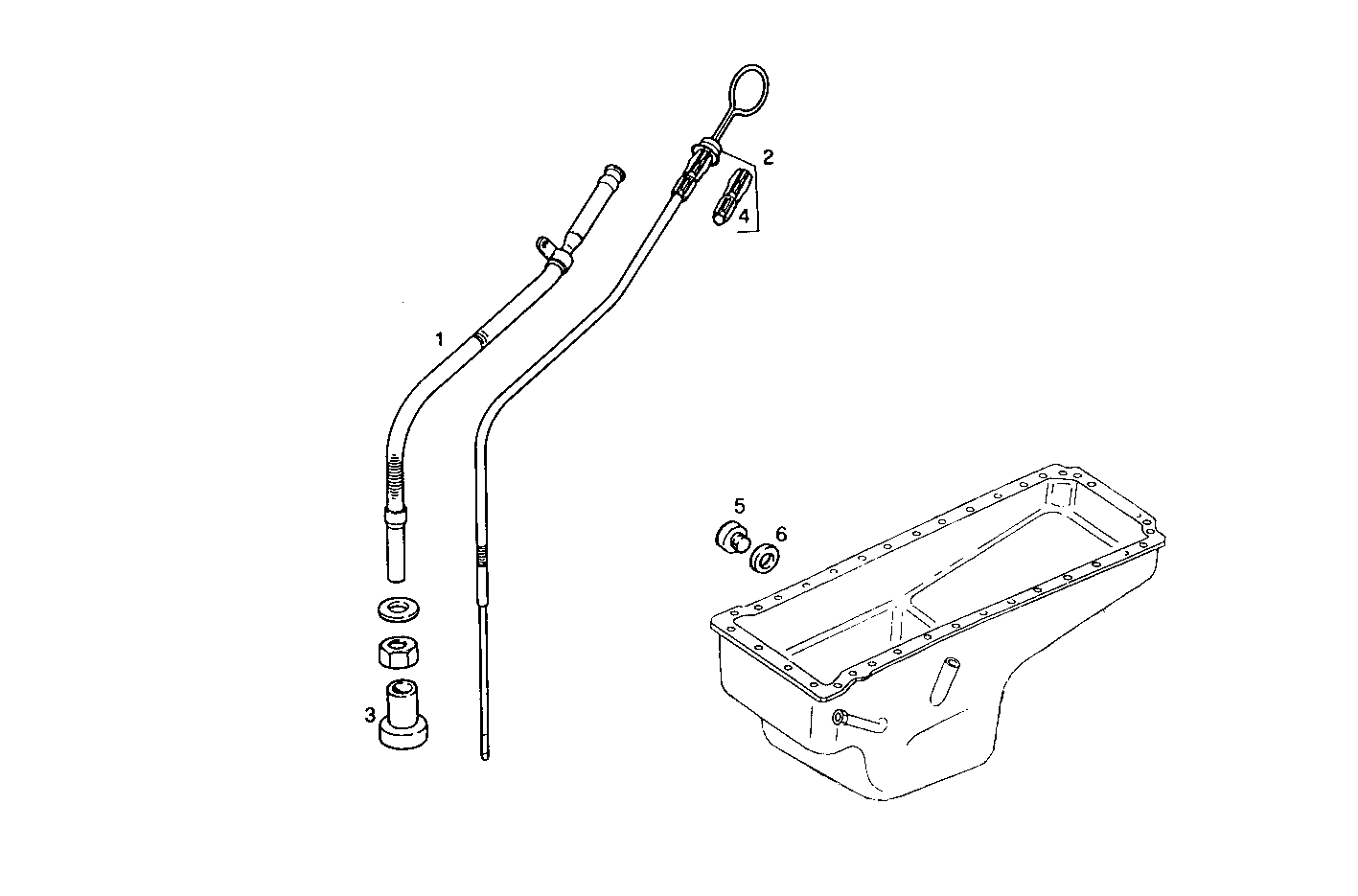

OIL DIPSTICK
Assembly ID: 2710.093
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61320759 | OIL LEVEL TUBE | 1 | ||
| 2 | 61320760 | OIL DIPSTICK | 1 | ||
| 3 | 4117503 | PIPE SOCKET | 1 | ||
| 4 | 98417751 | RUBBER GASKET | 1 | ||
| 5 | 16992311 | LOCK PLUG | 1 | ||
| 6 | 98474308 | SEAL GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRC20.10 | 8460SRC20 | view |
