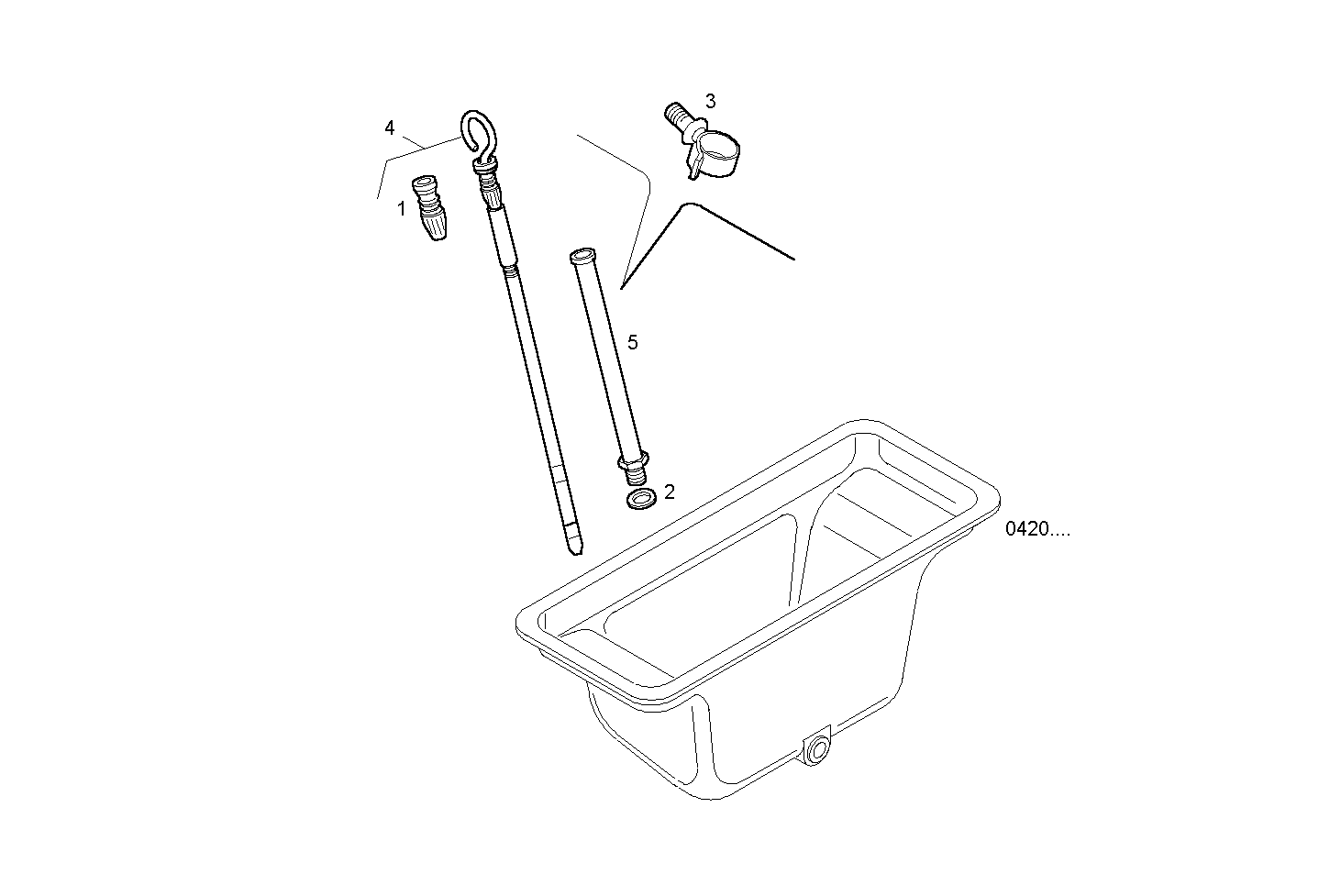

OIL DIPSTICK
Assembly ID: 2710.109
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 7300023 | RUBBER GASKET | 1 | ||
| 2 | 99489020 | SEAL GASKET | 1 | ||
| 3 | 500349848 | HITCH ASSY. | 1 | ||
| 4 | 500376114 | OIL DIPSTICK | 1 | ||
| 5 | 99471019 | OIL LEVEL TUBE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0684A*B002 | CURSOR 8 - TIER 2 | view |
| F2BE0684A*B003 | CURSOR 8 - TIER 2 | view |
