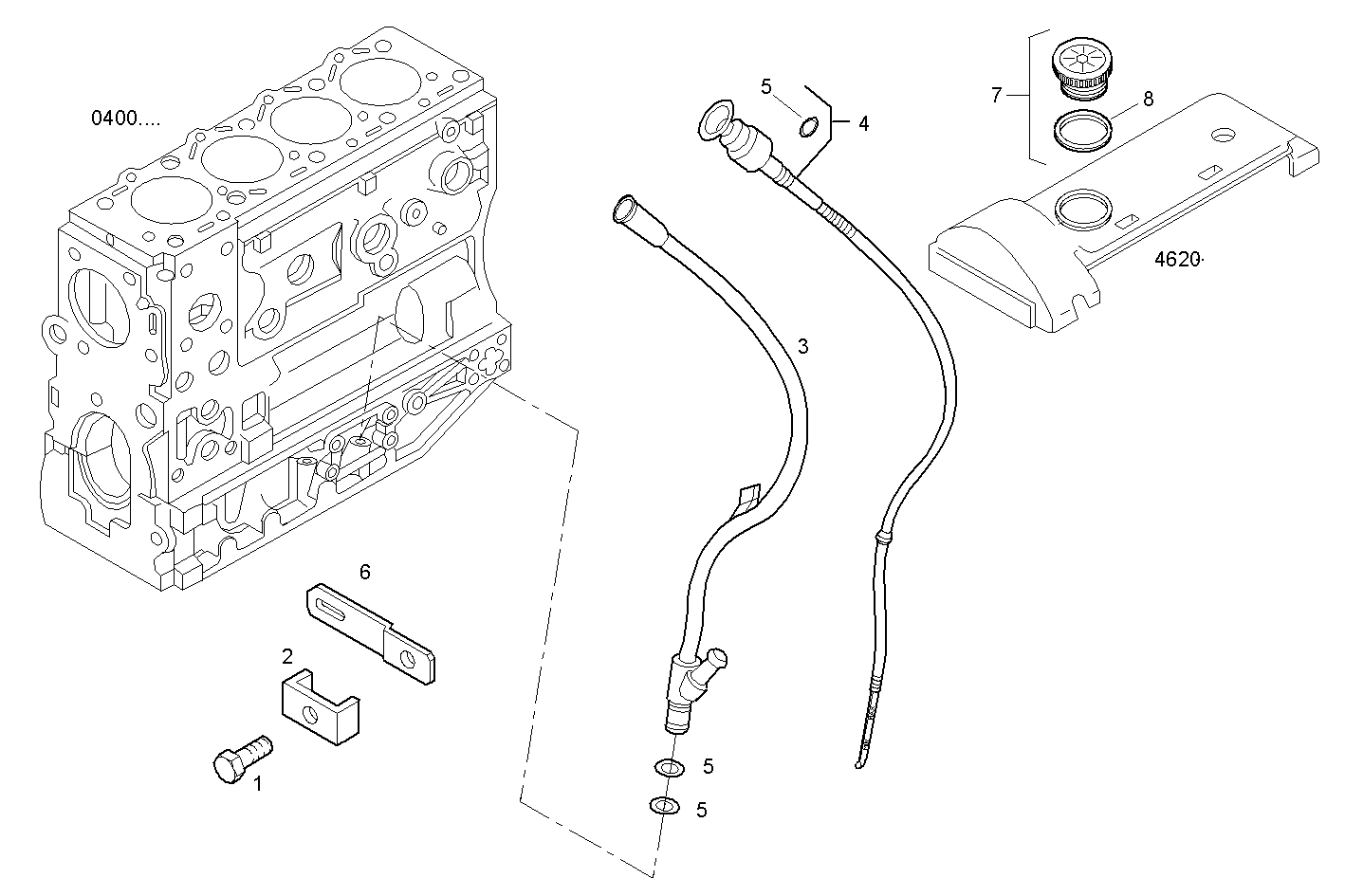

OIL DIPSTICK
Assembly ID: 2710.141
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16586425 | HEXAGON BOLT | 1 | ||
| 2 | 4716870 | RETAINER | 1 | ||
| 3 | 504052216 | OIL LEVEL TUBE | 1 | ||
| 4 | 504026739 | OIL DIPSTICK | 1 | ||
| 5 | 17277981 | O-RING | 3 | ||
| 6 | 500351027 | RETAINER | 1 | ||
| 7 | 98442027 | OIL FILLER PLUG | 1 | ||
| 8 | 98412146 | GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRC31.35A001- 1C | 8140SRC31 | view |
| 8140SRC31.35L002- 1C | 8140SRC31 | view |
| 8140.43F.3800 | 8140.43 | view |
| 8140SRC31.35 - 1C | 8140SRC31 | view |
| 8140SRC31.35A001- 1D | 8140SRC31 | view |
| 8140SRC31.35L002- 1D | 8140SRC31 | view |
