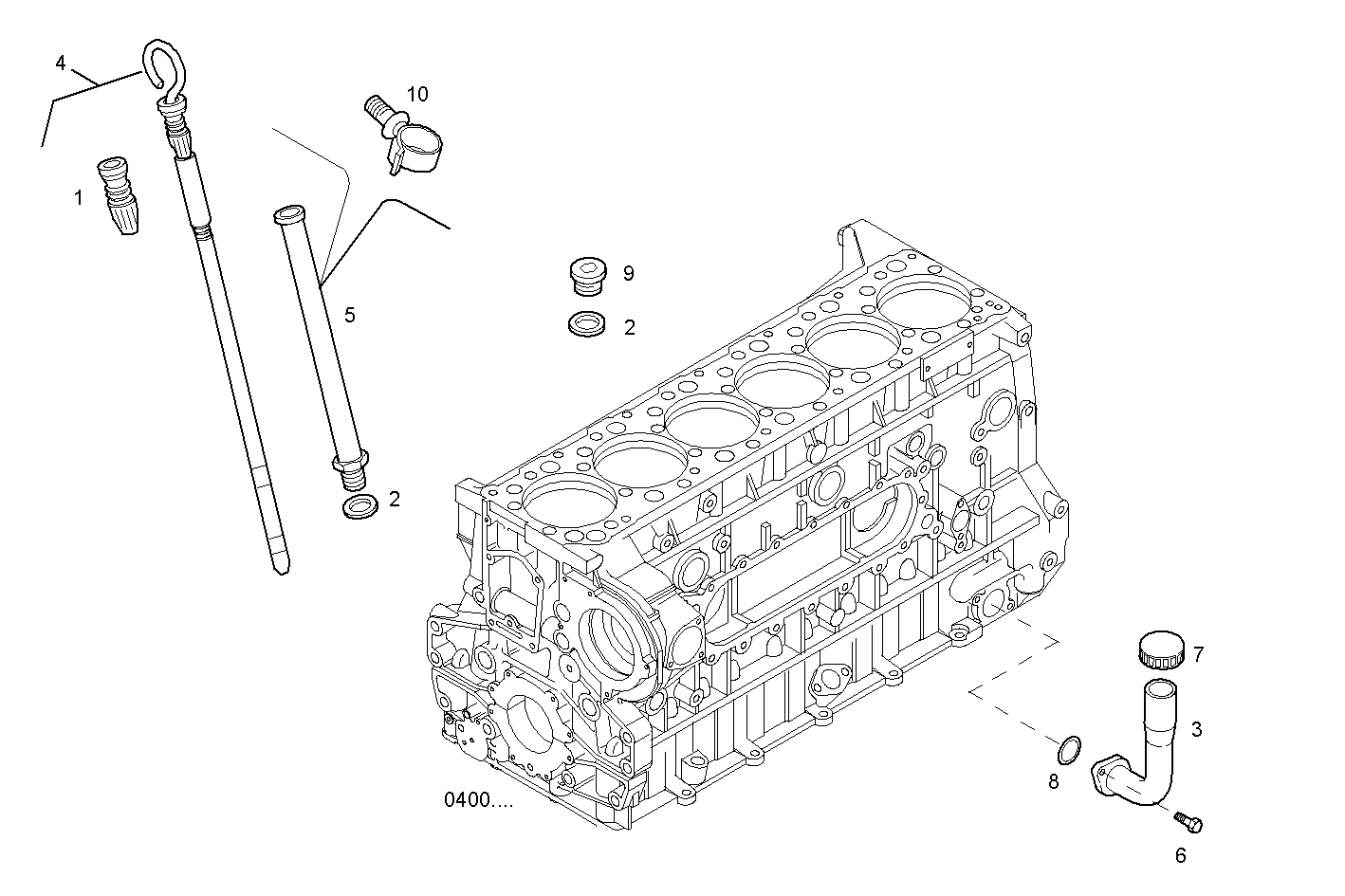

OIL DIPSTICK
Assembly ID: 2710.159
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 7300023 | RUBBER GASKET | 1 | ||
| 2 | 99489020 | SEAL GASKET | 2 | ||
| 3 | 504034153 | OIL FILLER PIPE | 1 | ||
| 4 | 504052722 | OIL DIPSTICK | 1 | ||
| 5 | 99471019 | OIL LEVEL TUBE | 1 | ||
| 6 | 16707134 | SOCKET-HEAD SCREW | 2 | ||
| 7 | 98429552 | OIL FILLER PLUG | 1 | ||
| 8 | 17289281 | O-RING | 1 | ||
| 9 | 16992511 | THREADED PLUG | 1 | ||
| 10 | 500349848 | HITCH ASSY. | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3AE0684E*B002 | CURSOR 10 - TIER 2 | view |
| F3AE0684E*B006 | CURSOR 10 - TIER 2 | view |
