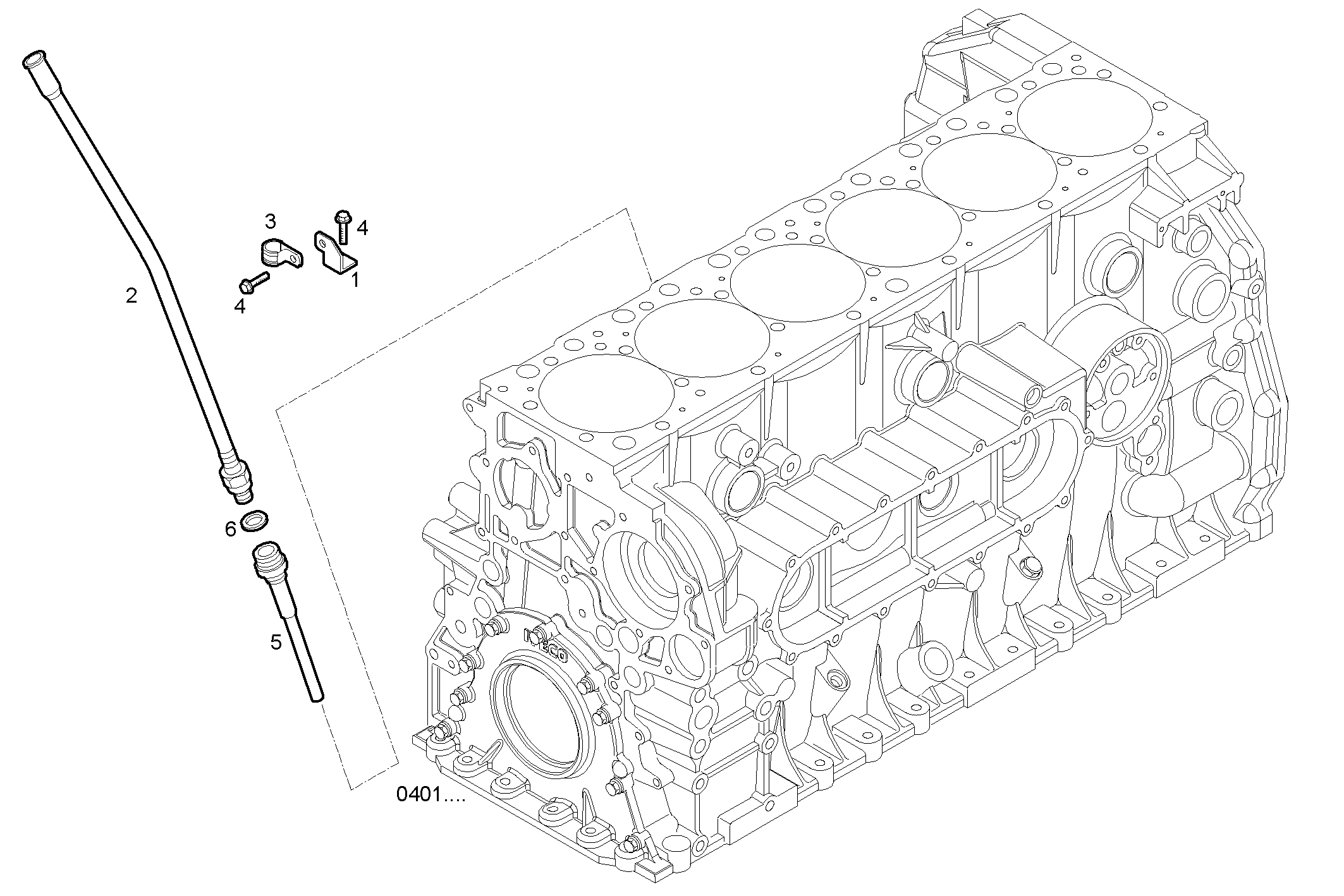

OIL DIPSTICK PIPE
Assembly ID: 2712.012
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4791406 | RETAINER | 1 | ||
| 2 | 504219234 | OIL LEVEL TUBE | 1 | ||
| 3 | 17316899 | CLIP | 1 | ||
| 4 | 16597925 | HEXAGON BOLT | 2 | ||
| 5 | 504323958 | THREADED UNION | 1 | ||
| 6 | 99489020 | SEAL GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE9684L*E005 | CURSOR 9 - TIER 3 | view |
| F2CE9684M*E006 | CURSOR 9 - TIER 3 | view |
| F2CE9684N*E005 | CURSOR 9 - TIER 3 | view |
| F2CE9684P*E006 | CURSOR 9 - TIER 3 | view |
| F2CE0681B*B200 | CURSOR 9 - EURO 3 | view |
| F2CE0681B*B201 | CURSOR 9 - EURO 3 | view |
