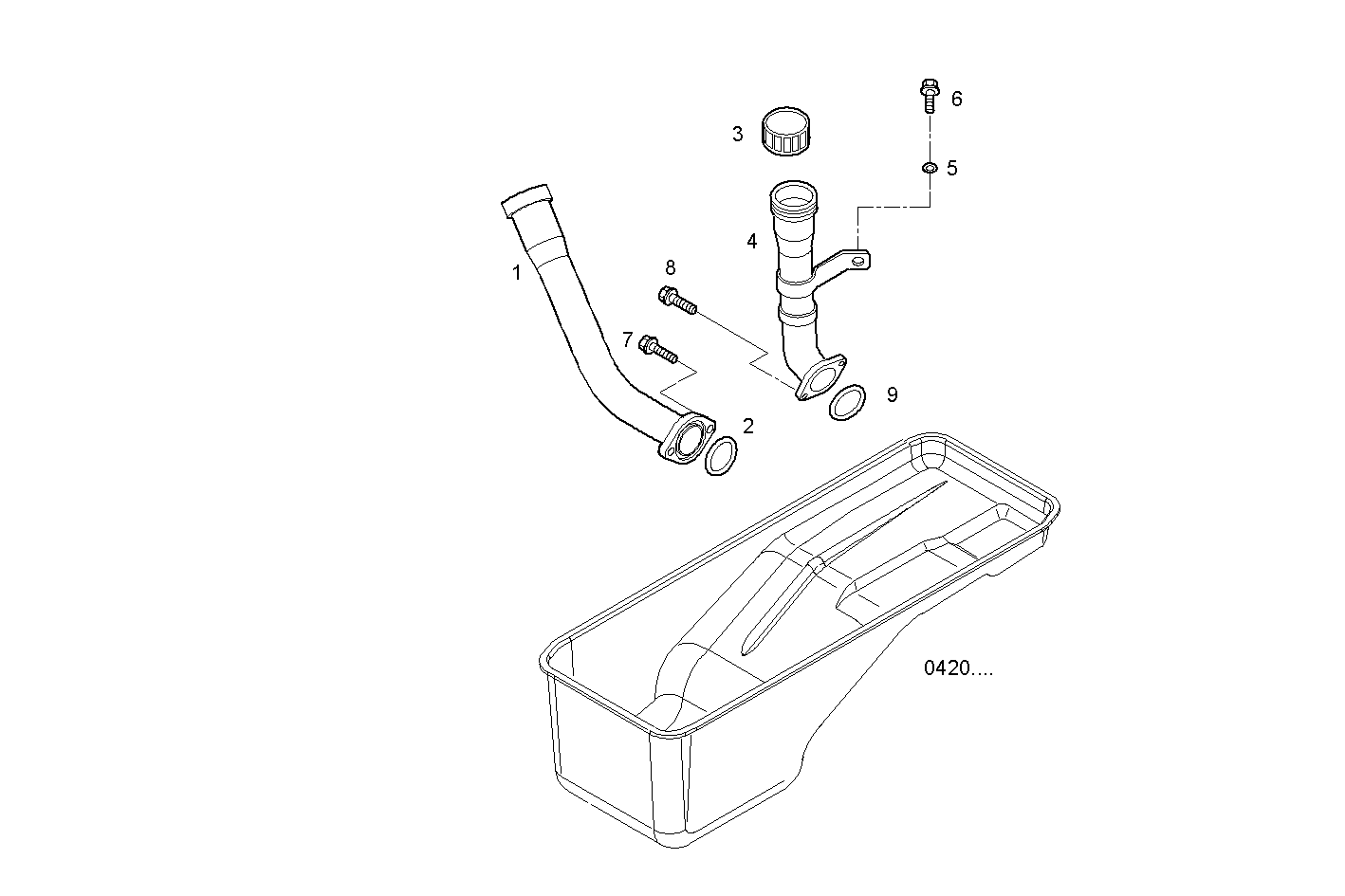

OIL DIPSTICK PIPE
Assembly ID: 2712.019
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504124725 | OIL FILLER PIPE | 1 | ||
| 2 | 17289281 | O-RING | 1 | ||
| 3 | 98429552 | OIL FILLER PLUG | 1 | ||
| 4 | 504162598 | OIL FILLER PIPE | 1 | ||
| 5 | 17798674 | SPRING WASHER | 1 | ||
| 6 | 1112655 | HEXAGON BOLT | 1 | ||
| 7 | 16707134 | SOCKET-HEAD SCREW | 2 | ||
| 8 | 16691324 | CYLIND-HEAD SCREW | 2 | ||
| 9 | 17283181 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
