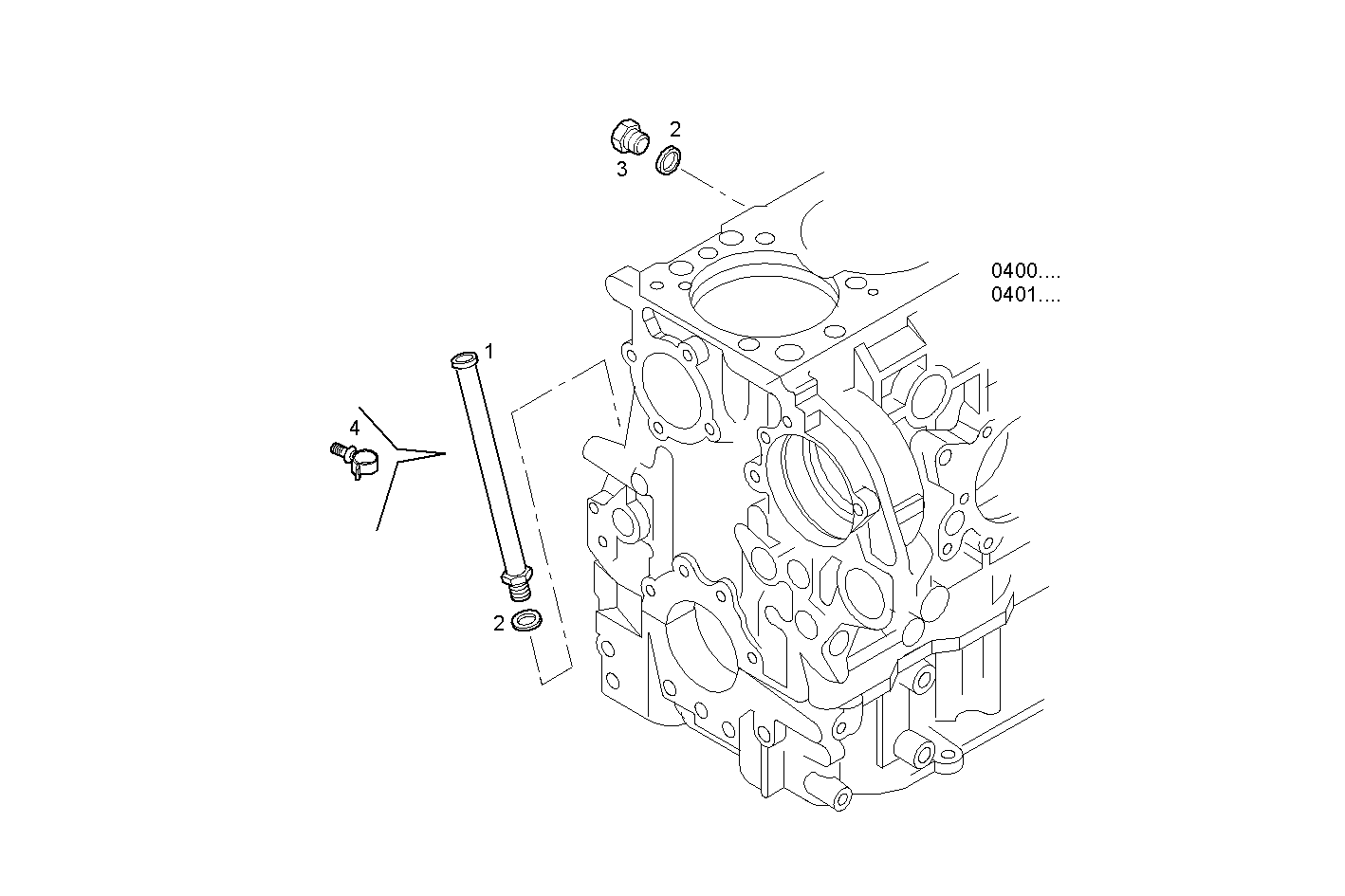

OIL DIPSTICK PIPE
Assembly ID: 2712.020
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504124643 | OIL LEVEL TUBE | 1 | ||
| 2 | 99489020 | SEAL GASKET | 2 | ||
| 3 | 16992515 | THREADED PLUG | 1 | ||
| 4 | 500349848 | HITCH ASSY. | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
