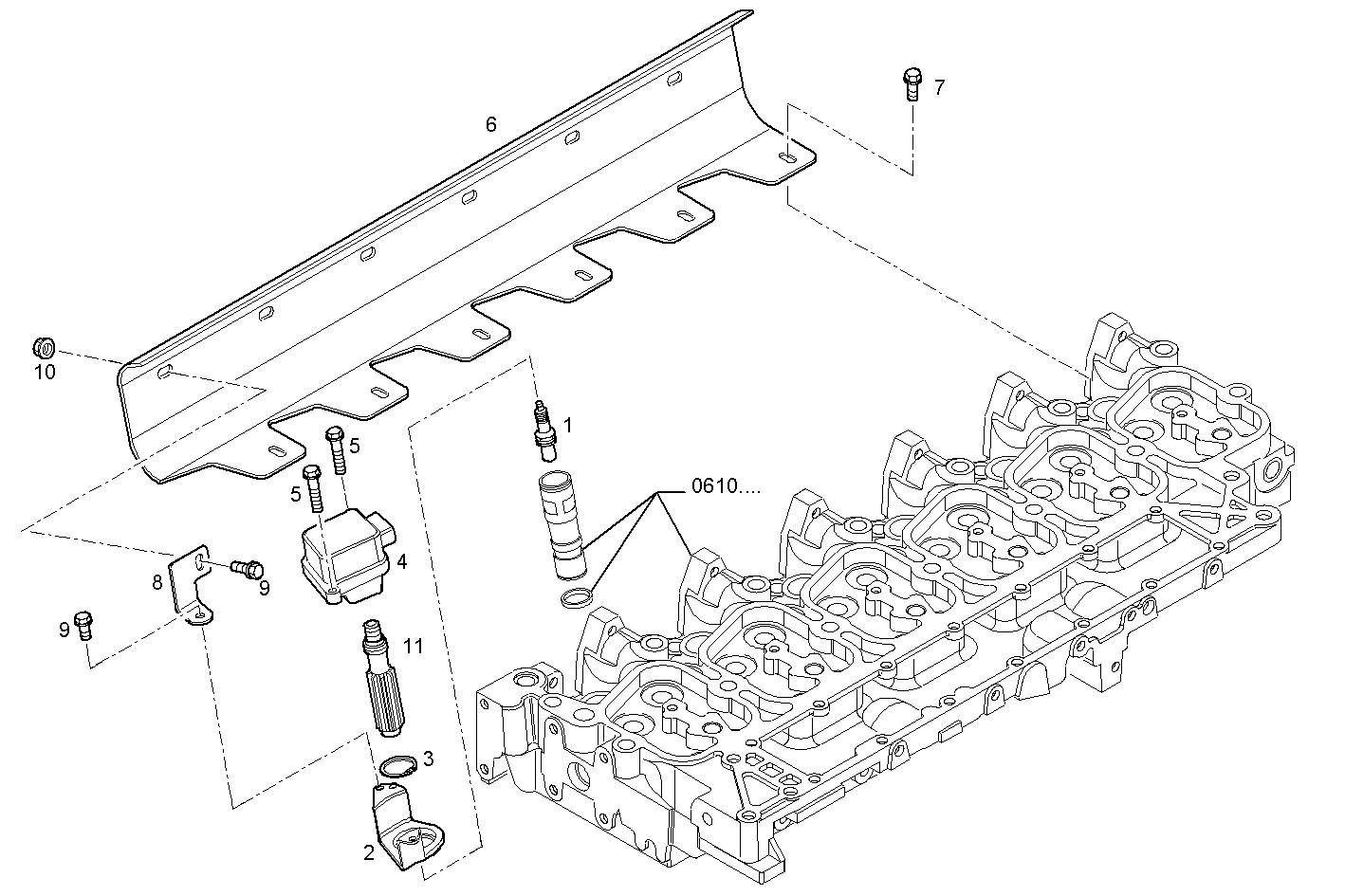

IGNITION CONTROL - SPARK PLUGS
Assembly ID: 2800.014
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504082651 | SPARK PLUG | 6 | ||
| 2 | 504029726 | FLANGED BUSH | 6 | ||
| 3 | 17853574 | CIRCLIP | 6 | ||
| 4 | 504085566 | IGNITION COIL | 6 | ||
| 5 | 16585325 | HEXAGON BOLT | 12 | ||
| 6 | 504204153 | PROTECTION | 1 | ||
| 7 | 16585625 | HEXAGON BOLT | 6 | ||
| 8 | 504214144 | FASTENING BRACKET | 6 | ||
| 9 | 16585024 | HEXAGON BOLT | 12 | ||
| 10 | 17044525 | HEXAGON NUT | 6 | ||
| 11 | 504083065 | SPARK CASING | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N60MNTG26.00A001 | NEF 6 CNG | view |
| N60MNTG26.00A002 | NEF 6 CNG | view |
| F4BE0647A*B100 | NEF 6 CNG | view |
| F4BE0641A*G105 | NEF 6 CNG | view |
| N60MNTG26.00A006 | NEF 6 CNG | view |
| N60MNTG26.00A004 | NEF 6 CNG | view |
| N60MNTG26.00A003 | NEF 6 CNG | view |
